| Code | Name | Period | Specifications |
|---|---|---|---|

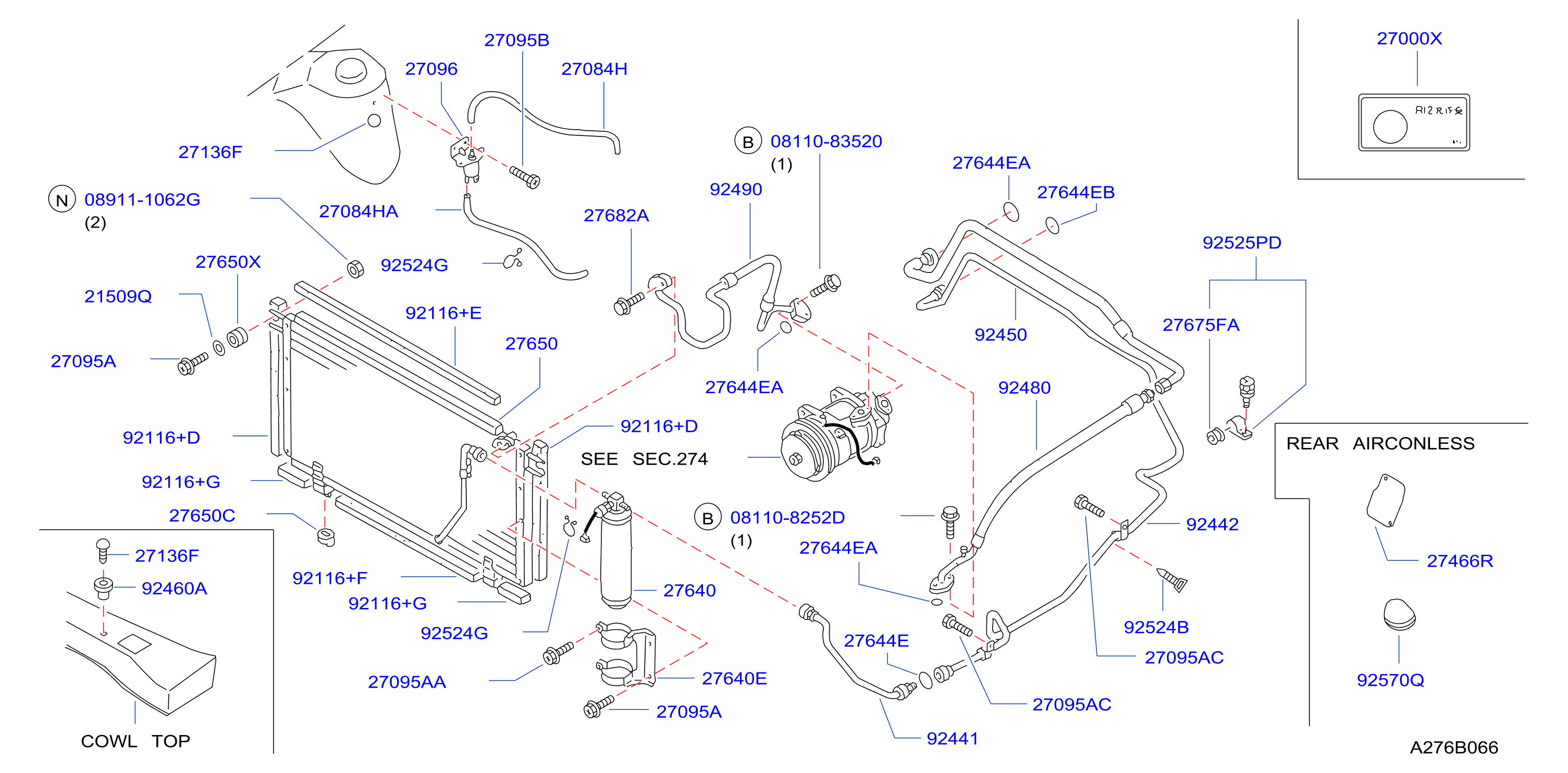

| 276B-001-01 | Condenser Liquid Tank Piping | 1991 - 1995 |
BODY: S
ENGINE: TD25
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0112103351 | 27682A | BOLT - FLEXIBLE HOSE | ||
| 0128100601 | 92460A | GROMMET | ||
| 0128100841 | 92460A | GROMMET | ||
| 0143601161 | 27095AA | SCREW | ||
| 0143601251 | 27095A | SCREW | ||
| 0155200033 | 92524B | CLIP | ||
| 0165801481 | 27136F | PLUG | ||
| 0165801501 | 27136F | PLUG | ||
| 081108252D | 081108252D | BOLT - HEX | ||
| 0811083520 | 0811083520 | BOLT - HEX | ||
| 089111062G | 089111062G | NUT - HEX | ||
| 2150901F00 | 21509Q | WASHER | ||
| 22472S6400 | 92524G | CLIP | ||
| 2709049P00 | 27000X | LABEL - CAUTION, AIR CONDITIONER | ||
| 2746610V10 | 27466R | PLATE | ||
| 27746F2516 | 27084H | HOSE - VACUUM | ||
| 2778015G00 | 27096 | VALVE ASSY - VACUUM CHECK | ||
| 921001H405 | 27650 | CONDENSER ASSY | ||
| 92108D0100 | 27650C | MOUNTING - RUBBER | ||
| 9211035V00 | 27650 | CONDENSER ASSY | ||
| 9211610V00 | 92116+D | AIR GUIDE - CONDENSER | ||
| 9211610V05 | 92116+E | AIR GUIDE - CONDENSER | ||
| 9211610V10 | 92116+F | AIR GUIDE - CONDENSER | ||
| 9211610V15 | 92116+G | AIR GUIDE - CONDENSER | ||
| 9211810V00 | 27650X | MOUNTING - RUBBER, CONDENSER UPPER | ||
| 921301H400 | 27640 | TANK ASSY - LIQUID | ||
| 9213035V00 | 27640 | TANK ASSY - LIQUID | ||
| 921350H900 | 27640E | BRACKET - LIQUID TANK | ||
| 9213510V00 | 27640E | BRACKET - LIQUID TANK | ||
| 92152F2719 | 27084HA | HOSE - VACUUM | ||
| 924410H900 | 92441 | PIPE - FRONT COOLER, HIGH A | ||
| 924410H905 | 92441 | PIPE - FRONT COOLER, HIGH A | ||
| 924411H305 | 92441 | PIPE - FRONT COOLER, HIGH A | ||
| 9244235V00 | 92442 | PIPE - FRONT COOLER, HIGH B | ||
| 9245035V00 | 92450 | PIPE - FRONT COOLER, LOW | ||
| 92470N8200 | 27644EB | SEAL - O RING | ||
| 92473N8200 | 27644EA | SEAL - O RING | ||
| 9247571L00 | 27644EA | SEAL - O RING | ||
| 9247572L00 | 27644E | SEAL - O RING | ||
| 92475W1000 | 27644E | SEAL - O RING | ||
| 924801H418 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924801H800 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 9248035V01 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924901H410 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 924901H418 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 924901H800 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 9255040V00 | 92525PD | CLIP | ||
| 9255737V00 | 27675FA | PROTECTOR - CLAMP | ||
| 9257015V00 | 92570Q | PLUG |
