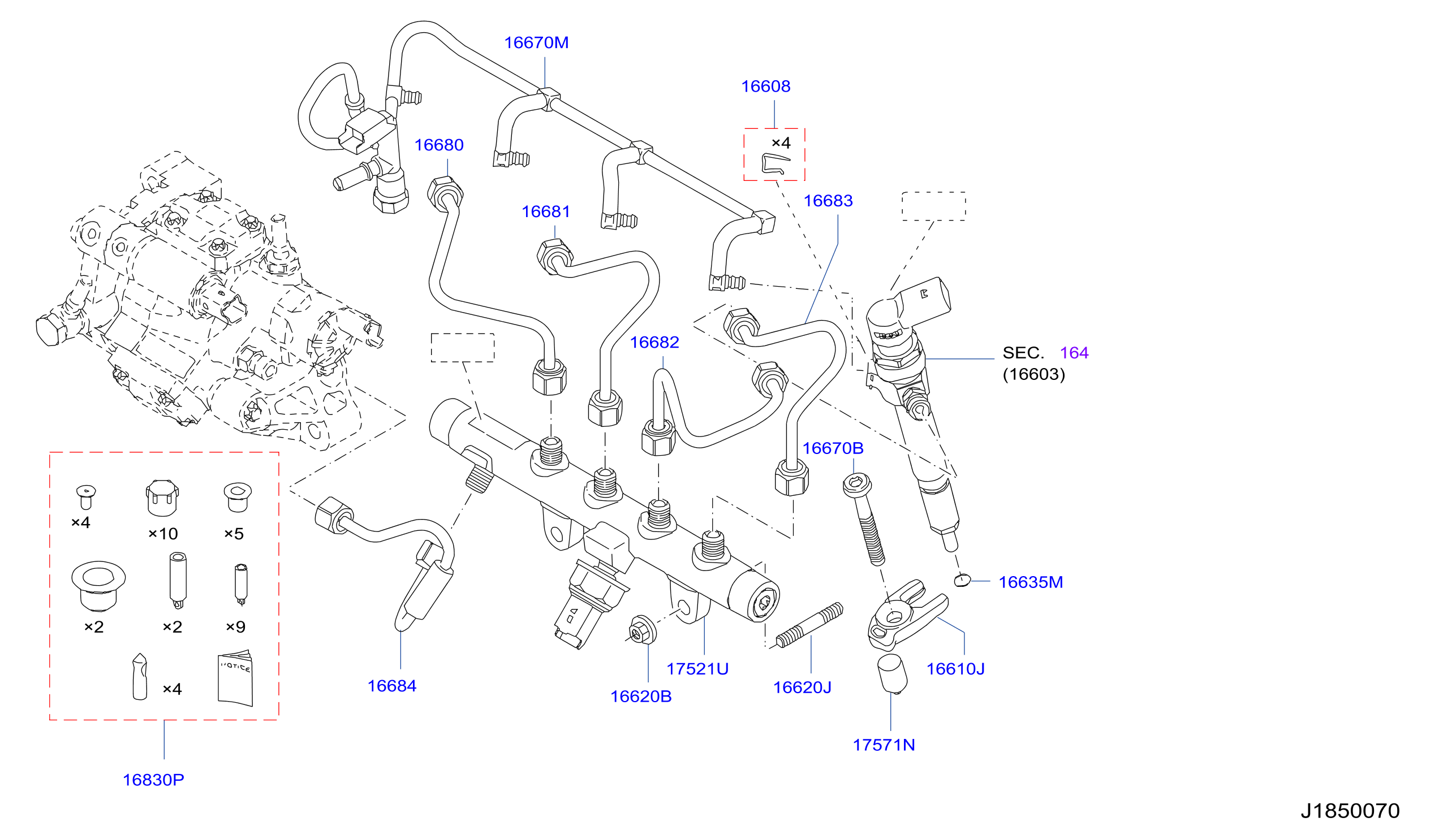

Fuel Supply System F / Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 185R-001-01 | Fuel Supply System F / Piping | 2009 - 2012 |
ENGINE: K9K
|
No illustration for this section
The full parts list is available below
Parts in this diagram 14
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0112100Q2E | 16670B | BOLT - CONNECTOR | |||
| 0112100Q6F | 16620J | STUD | |||
| 1443200Q0A | 16620B | NUT | |||
| 1660800QAA | 16608 | PIN | |||
| 1660900Q0B | 16830P | ADVANCE ASSY - START | |||
| 1661000Q0B | 16610J | PROTECTOR - NOZZLE | |||
| 1661400QAA | 16635M | GASKET - NOZZLE | |||
| 1667100QAK | 16670M | TUBE ASSY - FUEL SPILL | |||
| 1668000QAC | 16680 | TUBE ASSY - INJECTION, NO 1 | |||
| 1668100QAC | 16681 | TUBE ASSY - INJECTION, NO 2 |
of
2
