| Code | Name | Period | Specifications |
|---|---|---|---|

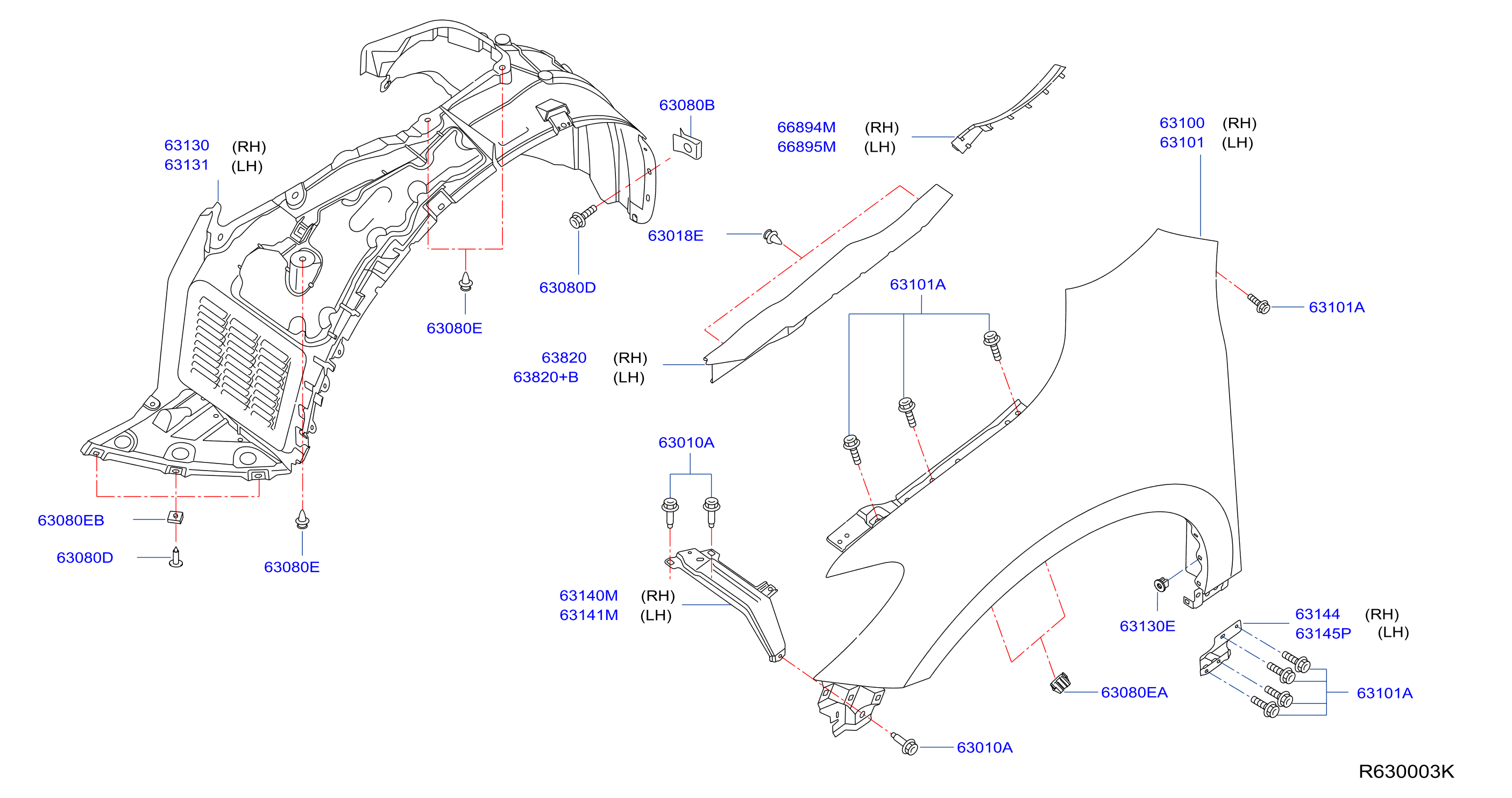

| 630A-001-01 | Front Fender Fitting | 2012 - 2013 |
BODY: W
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01121N6141 | 63010A | BOLT | ||
| 01125N6011 | 63101A | BOLT | ||
| 012410019U | 63080B | NUT | ||
| 0124101011 | 63080B | NUT | ||
| 0128100831 | 63130E | GROMMET - SCREW | ||
| 0145100841 | 63080D | SCREW | ||
| 01454N5061 | 63080D | SCREW | ||
| 0155305233 | 63080EA | CLIP | ||
| 0155305323 | 63018E | CLIP | ||
| 0155305933 | 63080E | CLIP | ||
| 015532DR9A | 63018E | CLIP | ||
| 631003KA0B | 63100 | FENDER - FRONT, RH | ||
| 631013KA0B | 63101 | FENDER - FRONT, LH | ||
| 631983JA1A | 63010A | BOLT | ||
| 638203KA0A | 63820 | SEAL - FRONT FENDER | ||
| 638203KA1A | 63820 | SEAL - FRONT FENDER | ||
| 638213KA0A | 63820+B | SEAL - FRONT FENDER | ||
| 638213KA1A | 63820+B | SEAL - FRONT FENDER | ||
| 638403JA0A | 63130 | PROTECTOR - FRONT FENDER, RH | ||
| 638413JA0A | 63131 | PROTECTOR - FRONT FENDER, LH | ||
| 668943KA0A | 66894M | COVER - FRONT FENDER, RH | ||
| 668949PB0A | 66894M | COVER - FRONT FENDER, RH | ||
| 668953KA0A | 66895M | COVER - FRONT FENDER, LH | ||
| 668959PB0A | 66895M | COVER - FRONT FENDER, LH | ||
| 768820M000 | 63080EB | CLIP | ||
| F31603KAAA | 63144 | BRACKET - FRONT FENDER LOWER, RH | ||
| F31603KABA | 63144 | BRACKET - FRONT FENDER LOWER, RH | ||
| F31613KAAA | 63145P | BRACKET - FRONT FENDER LOWER, LH | ||
| F31613KABA | 63145P | BRACKET - FRONT FENDER LOWER, LH | ||
| F31803KAMA | 63140M | STAY - FRONT FENDER, RH | ||
| F31813KAMA | 63141M | STAY - FRONT FENDER, LH |
