| Code | Name | Period | Specifications |
|---|---|---|---|

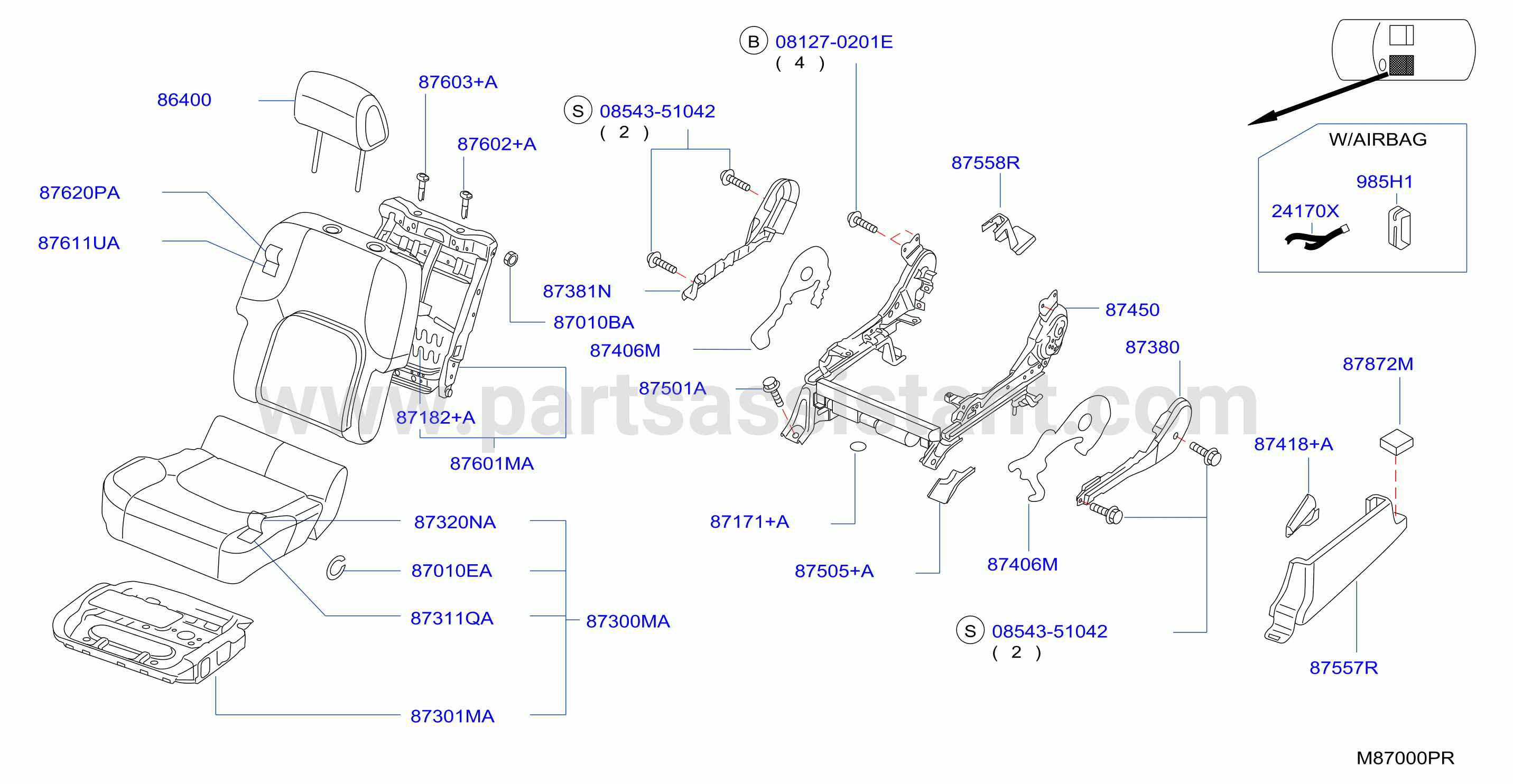

| 870A-006-01 | Front Seat Lh Seat W / Airbag 4 Way Manual | 2013 - ... |
BODY: W
GRADE: XE
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01121S013E | 87501A | BOLT | ||
| 0122500921 | 87010BA | NUT | ||
| 081270201E | 081270201E | BOLT - HEX | ||
| 0854351042 | 0854351042 | SCREW - TAPPING | ||
| 864005X00B | 86400 | HEADREST ASSY - FRONT SEAT | ||
| 864007X00B | 86400 | HEADREST ASSY - FRONT SEAT | ||
| 87171EB10A | 87171+A | GASKET | ||
| 87182AV000 | 87182+A | SPRING | ||
| 873505X02B | 87300MA | CUSHION ASSY - FRONT SEAT | ||
| 873507X02B | 87300MA | CUSHION ASSY - FRONT SEAT | ||
| 87351EB000 | 87301MA | FRAME ASSY - CUSHION, FRONT SEAT | ||
| 87361EB000 | 87311QA | PAD ASSY - CUSHION, FRONT SEAT | ||
| 873705X00B | 87320NA | TRIM ASSY - CUSHION, FRONT SEAT | ||
| 873707X00B | 87320NA | TRIM ASSY - CUSHION, FRONT SEAT | ||
| 87380EB002 | 87380 | FINISHER ASSY - CUSHION, FRONT SEAT LH | ||
| 87381EB002 | 87381N | FINISHER - CUSHION, FRONT SEAT INNER LH | ||
| 87406EB002 | 87406M | COVER - RECLINING DEVICE, FRONT SEAT INNER | ||
| 87450EB02B | 87450 | ADJUSTER ASSY - FRONT SEAT, LH | ||
| 87456EB002 | 87406M | COVER - RECLINING DEVICE, FRONT SEAT INNER | ||
| 87468EB022 | 87418+A | KNOB - RECLINING DEVICE LEVER | ||
| 875556X00B | 87505+A | COVER - SEAT SLIDE | ||
| 87557EB002 | 87557R | COVER - SEAT SLIDE, FRONT OUTER LH | ||
| 875586X00B | 87558R | COVER - SEAT SLIDE REAR INNER LH | ||
| 87602EB002 | 87602+A | HOLDER ASSY - HEADREST, LOCK | ||
| 87603EB002 | 87603+A | HOLDER ASSY - HEADREST, FREE | ||
| 87648BE900 | 87010EA | CLIP | ||
| 876513X01A | 87601MA | FRAME ASSY - BACK, FRONT SEAT | ||
| 876613X00A | 87611UA | PAD ASSY - BACK, FRONT SEAT | ||
| 876705X00B | 87620PA | TRIM ASSY - BACK, FRONT SEAT | ||
| 876707X00B | 87620PA | TRIM ASSY - BACK, FRONT SEAT | ||
| 878726X00B | 87872M | CAP - BOLT | ||
| 985384X20B | 24170X | HARNESS - AIR BAG | ||
| 985H1JD00B | 985H1 | MODULE ASSY - SIDE AIR BAG, FRONT LH |
