| Code | Name | Period | Specifications |
|---|---|---|---|

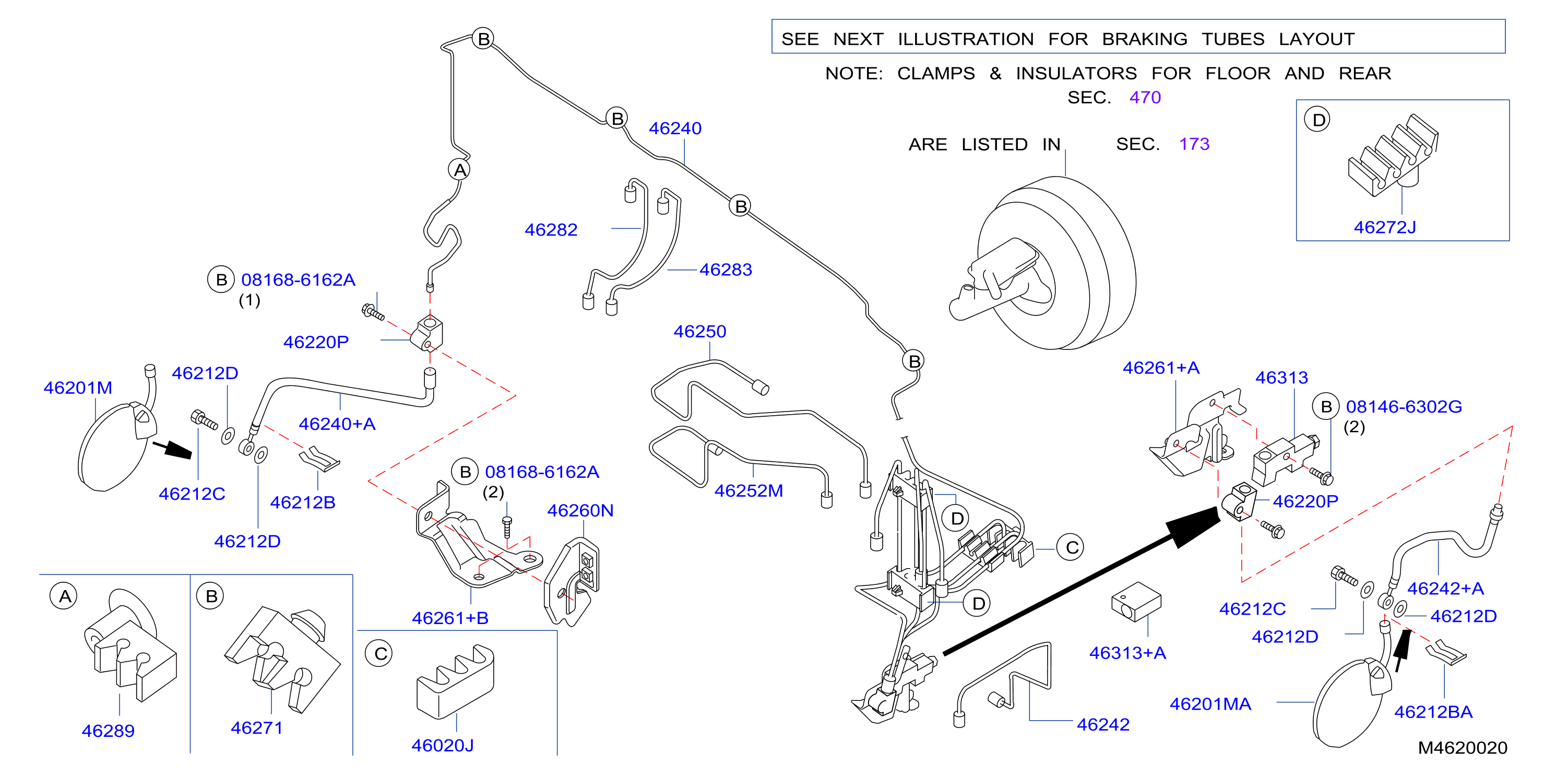

| 462B-001-01 | Brake Piping Control Front Piping | 2005 - 2006 |
BODY: W
DRIVE: F/4WD
ENGINE: VQ40DE
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0155200951 | 46020J | CLIP | ||
| 0246364000 | 46220P | CONNECTOR - BRAKE TUBE | ||
| 081466302G | 081466302G | BOLT - HEX | ||
| 081686162A | 081686162A | SCREW | ||
| 462062J000 | 46212B | SPRING - LOCK, BRAKE HOSE | ||
| 462062J00A | 46212B | SPRING - LOCK, BRAKE HOSE | ||
| 46206M0200 | 46212BA | SPRING - LOCK, BRAKE HOSE | ||
| 462105X70A | 46201M | HOSE ASSY - BRAKE, FRONT | ||
| 46210EB03A | 46201M | HOSE ASSY - BRAKE, FRONT | ||
| 46210EB30A | 46201M | HOSE ASSY - BRAKE, FRONT | ||
| 46210EB30B | 46201M | HOSE ASSY - BRAKE, FRONT | ||
| 462115X70A | 46201MA | HOSE ASSY - BRAKE, FRONT | ||
| 46211EB03A | 46201MA | HOSE ASSY - BRAKE, FRONT | ||
| 46211EB30A | 46201MA | HOSE ASSY - BRAKE, FRONT | ||
| 46211EB30B | 46201MA | HOSE ASSY - BRAKE, FRONT | ||
| 46237A4600 | 46212D | GASKET - BRAKE HOSE | ||
| 46240EB310 | 46240 | TUBE ASSY - BRAKE, FRONT RH | ||
| 46240EB311 | 46240+A | TUBE ASSY - BRAKE, FRONT RH | ||
| 46240EB31A | 46240 | TUBE ASSY - BRAKE, FRONT RH | ||
| 46240EB31B | 46240+A | TUBE ASSY - BRAKE, FRONT RH | ||
| 46242EB311 | 46242+A | TUBE ASSY - BRAKE, FRONT LH | ||
| 46242EB31A | 46242+A | TUBE ASSY - BRAKE, FRONT LH | ||
| 46242EB401 | 46242 | TUBE ASSY - BRAKE, FRONT LH | ||
| 46250EB310 | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | ||
| 46250EB31A | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | ||
| 46252EB310 | 46252M | TUBE ASSY - BRAKE, MASTER CYLINDER TO REAR | ||
| 46252EB31A | 46252M | TUBE ASSY - BRAKE, MASTER CYLINDER TO REAR | ||
| 46261EB316 | 46261+A | BRACKET - BRAKE TUBE | ||
| 46261EB320 | 46261+B | BRACKET - BRAKE TUBE | ||
| 4627101B10 | 46271 | CLIP - TUBE, BRAKE | ||
| 4627258A00 | 46272J | INSULATOR | ||
| 46283EB401 | 46283 | TUBE ASSY - BRAKE, REAR | ||
| 46289AG000 | 46289 | CLAMP | ||
| 46313EA000 | 46313 | CONNECTOR - BRAKE TUBE | ||
| 46313EA00A | 46313 | CONNECTOR - BRAKE TUBE | ||
| 463560E000 | 46212C | BOLT - UNION, REAR BRAKE HOSE | ||
| 463560E00A | 46212C | BOLT - UNION, REAR BRAKE HOSE |
