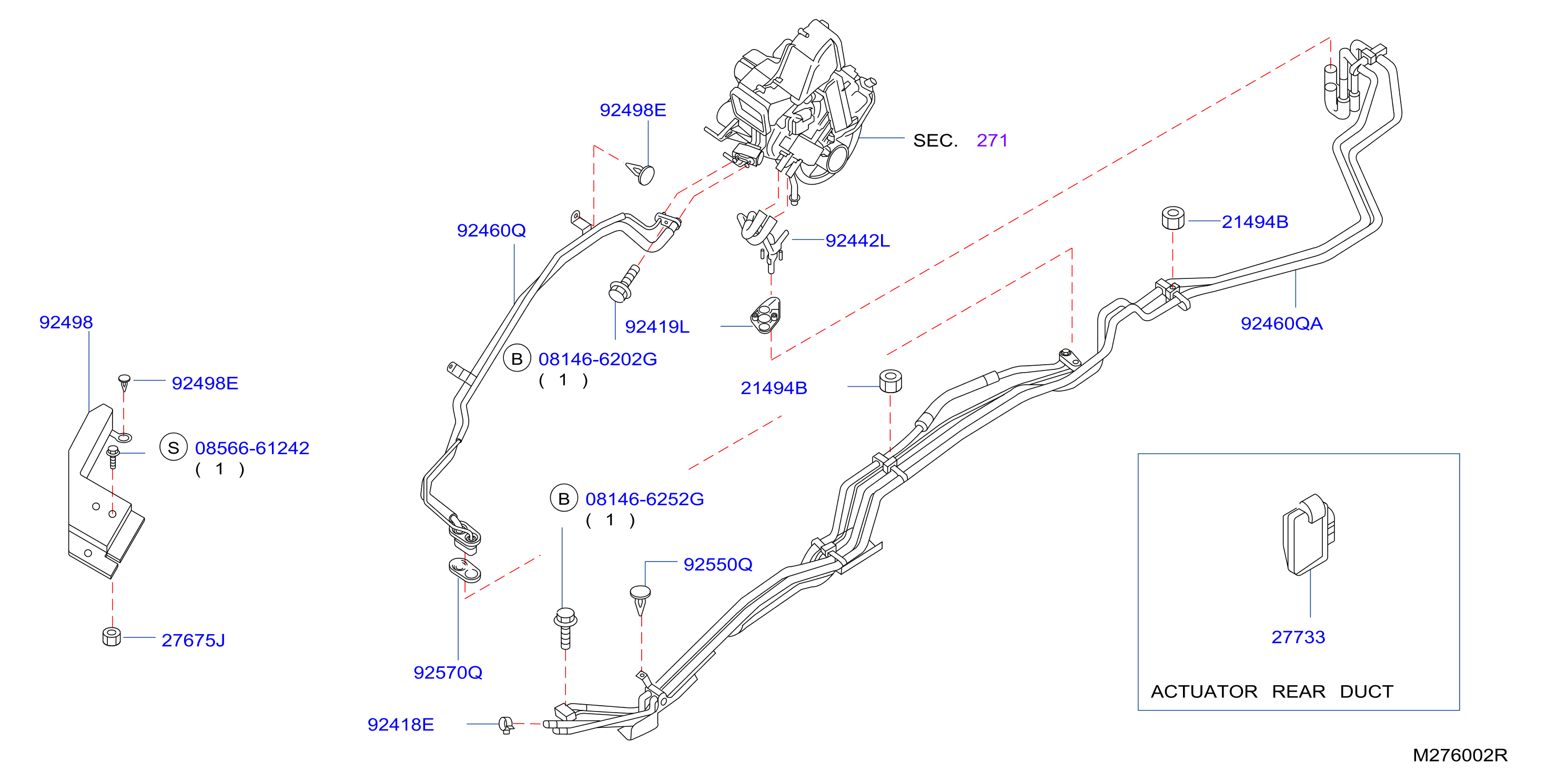

Condenser Liquid Tank Piping Rear Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276B-002-02 | Condenser Liquid Tank Piping Rear Piping | 2006 - 2007 |
BODY: W
ENGINE: YD25DDTI
|
No illustration for this section
The full parts list is available below
Parts in this diagram 16
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0122500691 | 21494B | NUT | |||
| 0128100711 | 27675J | GROMMET - SCREW | |||
| 0155300862 | 92550Q | CLIP | |||
| 0155309321 | 92498E | CLIP | |||
| 0155800511 | 92418E | CLAMP | |||
| 081466202G | 081466202G | BOLT - HEX | |||
| 081466252G | 081466252G | BOLT - HEX | |||
| 0856661242 | 0856661242 | SCREW - TAPPING | |||
| 27743ZS00A | 27733 | ACTUATOR ASSY - REAR DUCT | |||
| 92419EA000 | 92419L | COVER - HEATER HOSE |
