| Code | Name | Period | Specifications |
|---|---|---|---|

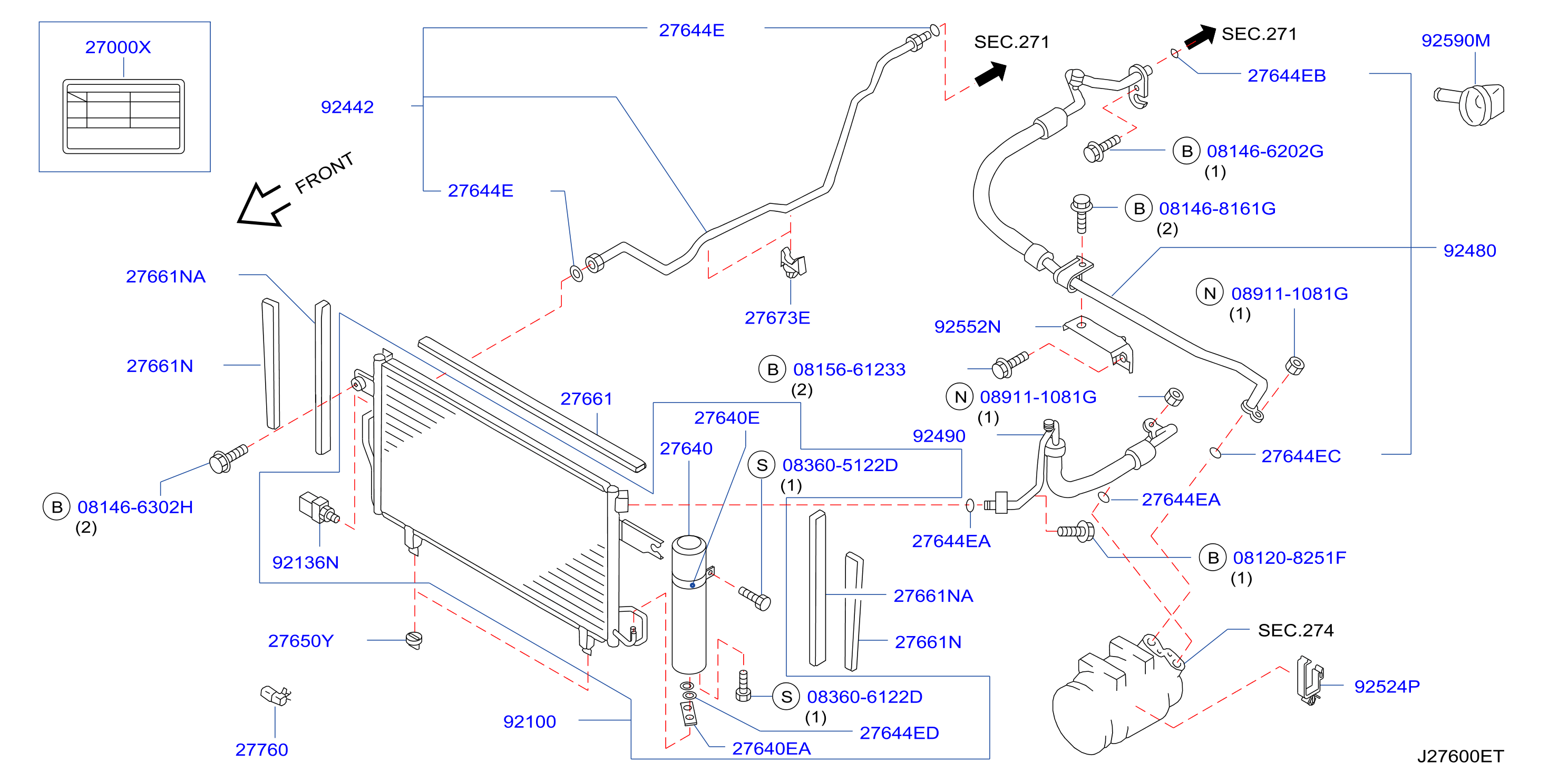

| 276A-001-03 | Condenser Liquid Tank Piping W / Gen | 2003 - ... |
BODY: W
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 081208251F | 081208251F | BOLT - HEX | ||
| 081466202G | 081466202G | BOLT - HEX | ||
| 081466302H | 081466302H | BOLT - HEX | ||
| 081468161G | 081468161G | BOLT - HEX | ||
| 0815661233 | 0815661233 | BOLT - HEX | ||
| 083605122D | 083605122D | SCREW - MACHINE | ||
| 083606122D | 083606122D | SCREW - MACHINE | ||
| 089111081G | 089111081G | NUT - HEX | ||
| 175610W010 | 27673E | CLAMP - TUBE | ||
| 1756162J10 | 27673E | CLAMP - TUBE | ||
| 242254W000 | 92524P | CLIP | ||
| 270900W000 | 27000X | LABEL - CAUTION, AIR CONDITIONER | ||
| 2772231U00 | 27760 | SENSOR ASSY - AMBIENT | ||
| 9211951E00 | 27650Y | MOUNTING - RUBBER, CONDENSER, LOWER | ||
| 921310W010 | 27640 | TANK ASSY - LIQUID | ||
| 921310W060 | 27640 | TANK ASSY - LIQUID | ||
| 921310W070 | 27640 | TANK ASSY - LIQUID | ||
| 921350W700 | 27640E | BRACKET - LIQUID TANK | ||
| 921350W701 | 27640E | BRACKET - LIQUID TANK | ||
| 921366J001 | 92136N | SENSOR ASSY - PRESSURE | ||
| 921820W010 | 27661 | SEAL - CONDENSER | ||
| 921823W400 | 27661 | SEAL - CONDENSER | ||
| 921840W000 | 27661NA | SEAL - CONDENSER, SIDE | ||
| 921840W002 | 27661NA | SEAL - CONDENSER, SIDE | ||
| 921840W010 | 27661N | SEAL - CONDENSER, SIDE | ||
| 921844W000 | 27661NA | SEAL - CONDENSER, SIDE | ||
| 924420W005 | 92442 | PIPE - FRONT COOLER, HIGH B | ||
| 924420W006 | 92442 | PIPE - FRONT COOLER, HIGH B | ||
| 924420W007 | 92442 | PIPE - FRONT COOLER, HIGH B | ||
| 92471N8210 | 27644E | SEAL - O RING | ||
| 92472N8210 | 27644EA | SEAL - O RING | ||
| 92473N8200 | 27644ED | SEAL - O RING | ||
| 92473N8210 | 27644EB | SEAL - O RING | ||
| 92474N8210 | 27644EC | SEAL - O RING | ||
| 924800W005 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924800W006 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924800W007 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924800W008 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924802W600 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924802W601 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924802W610 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924804W022 | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924900W706 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 924900W707 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 924901W700 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 924902W100 | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 925520W000 | 92552N | BRACKET - TUBE CLIP | ||
| 925522W600 | 92552N | BRACKET - TUBE CLIP | ||
| 925522W601 | 92552N | BRACKET - TUBE CLIP | ||
| 925524W010 | 92552N | BRACKET - TUBE CLIP | ||
| 925900W011 | 92590M | HOSE - DRAIN |
