| Code | Name | Period | Specifications |
|---|---|---|---|

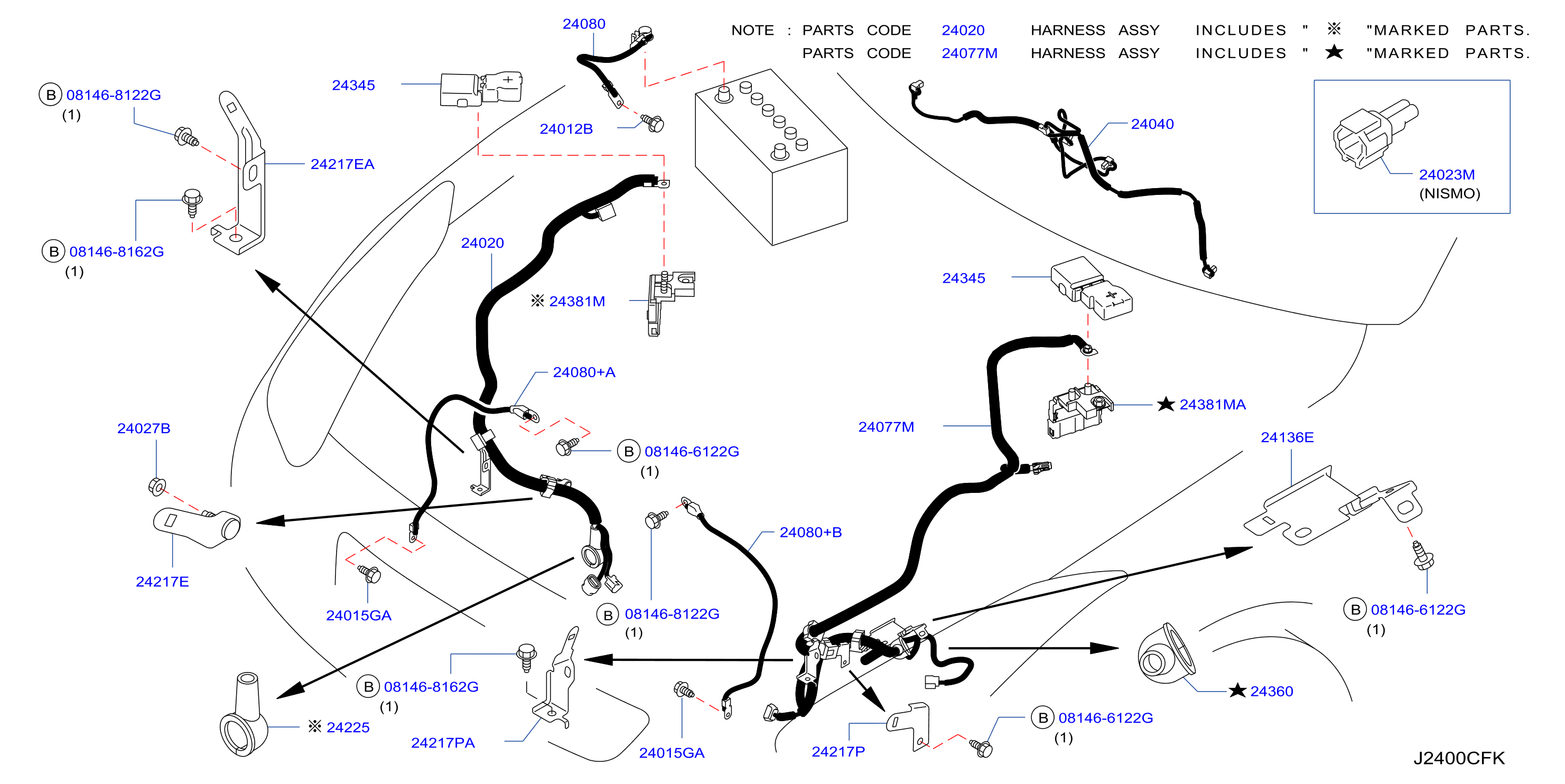

| 240A-007-01 | Wiring Altntr Harn | 2015 - 2016 |
BODY: C
|
Parts in this diagram 22
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0122100381 | 24027B | NUT | |||
| 0145600411 | 24012B | SCREW | |||
| 081466122G | 081466122G | BOLT - HEX | |||
| 081468122G | 081468122G | BOLT - HEX | |||
| 081468162G | 081468162G | BOLT - HEX | |||
| 24040JK60A | 24040 | HARNESS - AIR CONDITIONER | |||
| 24076JF10A | 24020 | HARNESS - ALTERNATOR | |||
| 24076KB10A | 24020 | HARNESS - ALTERNATOR | |||
| 24077JF10A | 24077M | HARNESS ASSY - ENGINE | |||
| 24080JF10A | 24080 | CABLE ASSY - BATTERY EARTH | |||
| 24080KB10A | 24080 | CABLE ASSY - BATTERY EARTH | |||
| 24083JF00A | 24080+A | CABLE ASSY - BATTERY EARTH | |||
| 24083JF00B | 24080+B | CABLE ASSY - BATTERY EARTH | |||
| 24236JF00A | 24136E | BRACKET - CONNECTOR | |||
| 24239JF00A | 24217E | BRACKET - CLIP | |||
| 24239JF00B | 24217P | BRACKET - HARNESS CLIP | |||
| 24239JF01B | 24217PA | BRACKET - HARNESS CLIP | |||
| 24239JF01C | 24217EA | BRACKET - CLIP | |||
| 2434579913 | 24345 | COVER - CONNECTOR | |||
| 243457993A | 24345 | COVER - CONNECTOR | |||
| 2436060U00 | 24225 | CAP - TERMINAL | |||
| 2438079915 | 24381M | HOLDER - FUSIBLE LINK |
