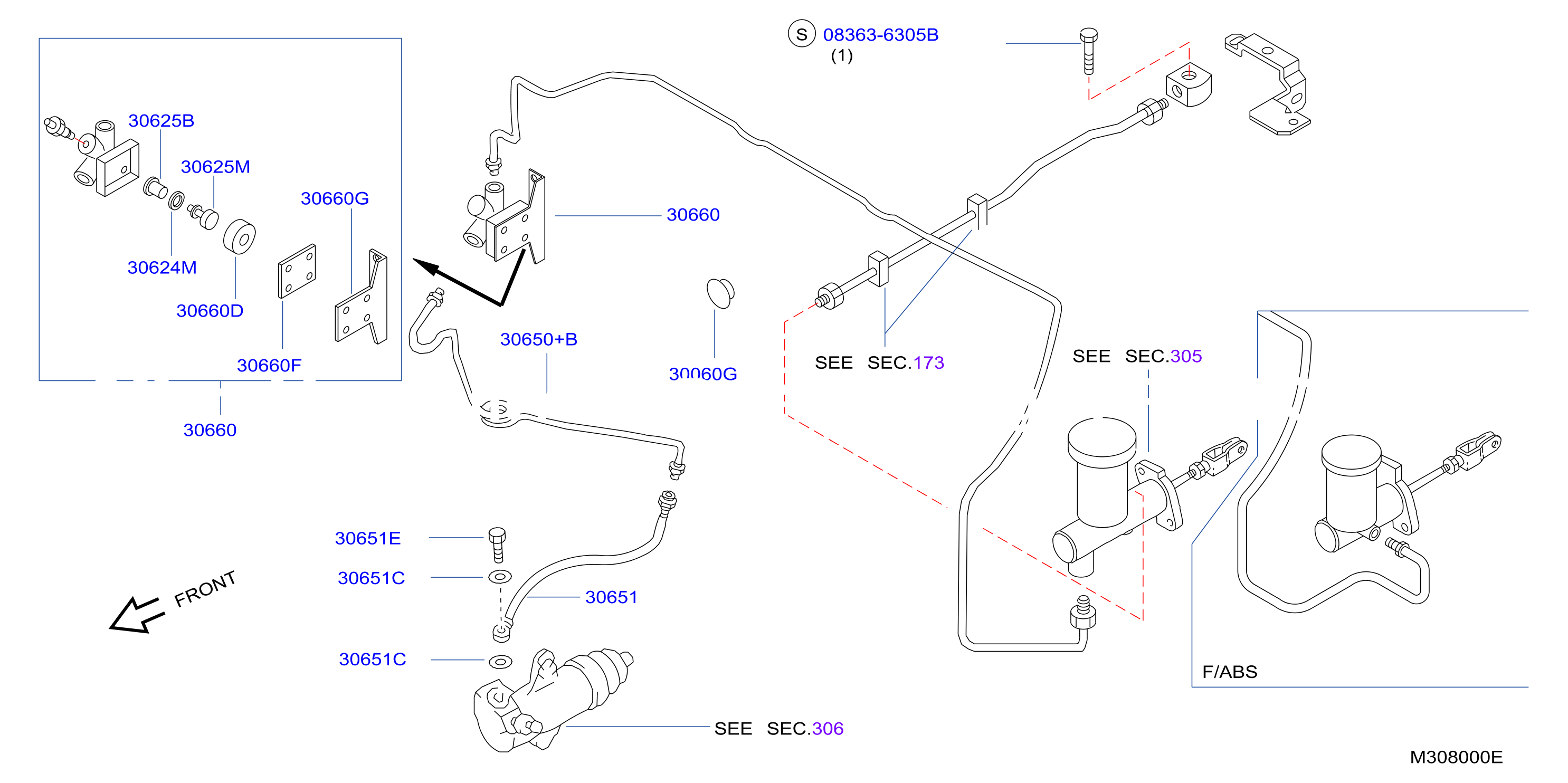

Clutch Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 308A-001-01 | Clutch Piping | 2004 - ... |
ENGINE: KA24E
|
No illustration for this section
The full parts list is available below
Parts in this diagram 17
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0165800223 | 30060G | PLUG | |||
| 083636305B | 083636305B | SCREW - MACHINE | |||
| 3062421000 | 30624M | CUP - PISTON, CLUTCH DAMPER | |||
| 3066009G01 | 30660 | DAMPER ASSY - CLUTCH | |||
| 30662V0600 | 30625M | PISTON - CLUTCH DAMPER | |||
| 3066301P00 | 30660D | RUBBER - SPRING, CLUTCH DAMPER | |||
| 3066501G11 | 30660G | BRACKET - CLUTCH DAMPER | |||
| 30666V0601 | 30660F | SEAT - CLUTCH DAMPER | |||
| 3066735F00 | 30625B | SPRING - CLUTCH DAMPER | |||
| 308507F00A | 30650+B | TUBE ASSY - CLUTCH |
