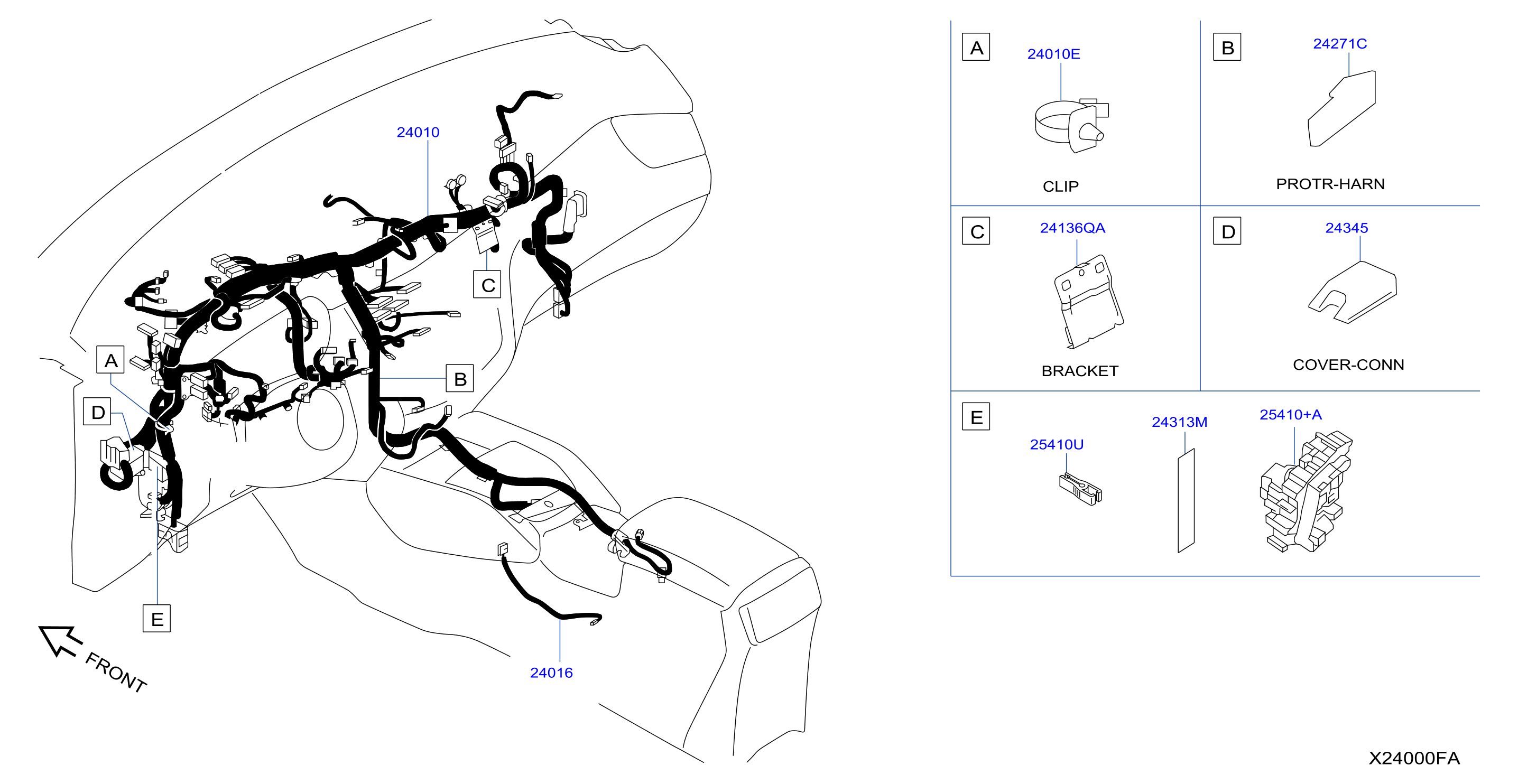

Wiring Main Harness
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 240A-001-01 | Wiring Main Harness | 2016 - 2016 |
BODY: H/B
|
No illustration for this section
The full parts list is available below
Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 240165RB0A | 24016 | HARNESS - SUB, CONSOLE BOX | |||
| 24225C9910 | 24010E | CLIP | |||
| 242365RB0B | 24136QA | BRACKET ASSY - CONNECTOR | |||
| 2427141B00 | 24271C | PROTECTOR - HARNESS | |||
| 242715V000 | 24271C | PROTECTOR - HARNESS | |||
| 243115RB0A | 25410+A | BLOCK ASSY - FUSE | |||
| 243135RB0A | 24313M | LABEL - FUSE BLOCK | |||
| 243216CA0A | 25410U | PULLER - FUSE | |||
| 2432179903 | 25410U | PULLER - FUSE | |||
| 243454M441 | 24345 | COVER - CONNECTOR |
