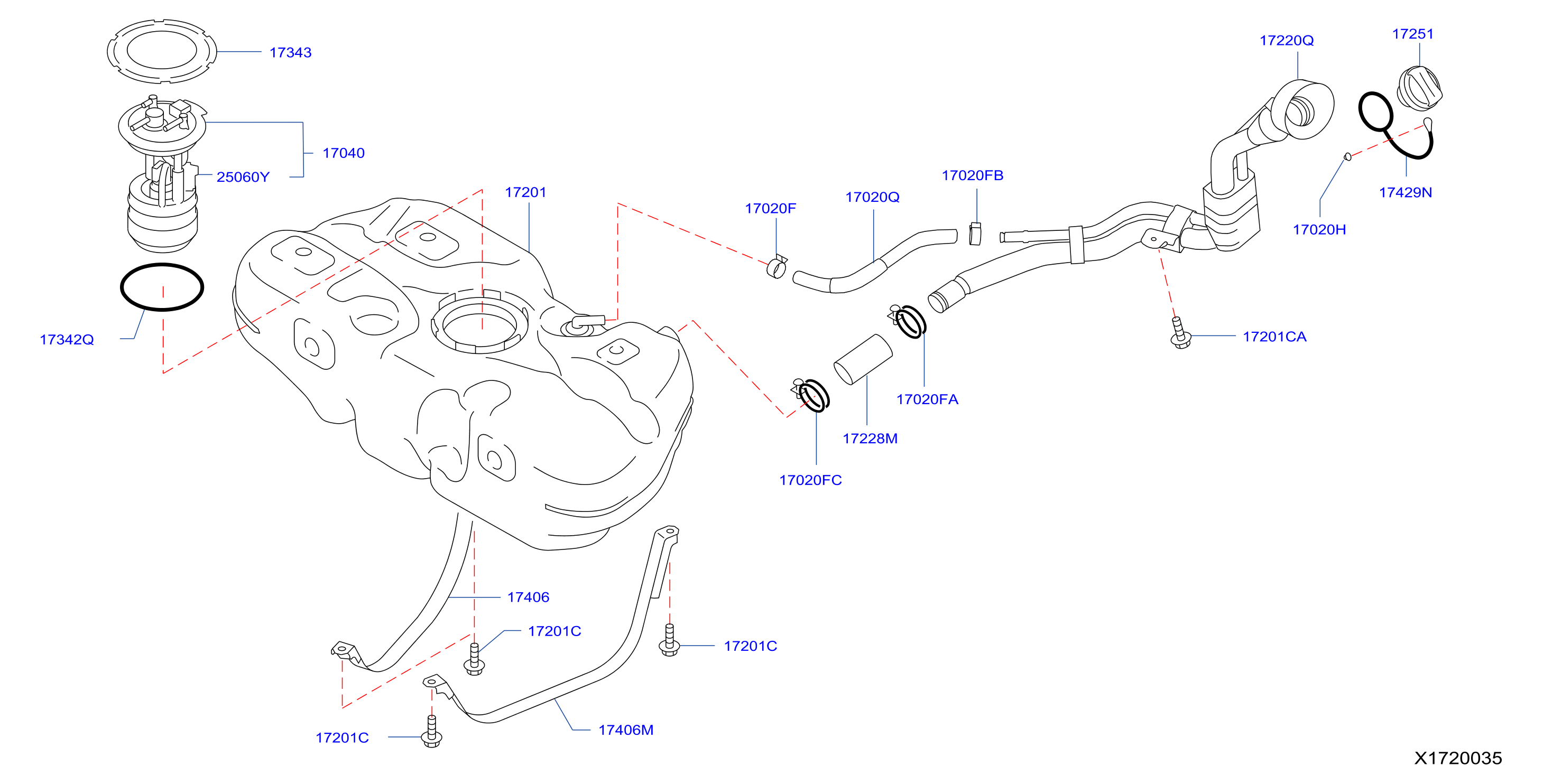

Parts in this diagram 22
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N003X | 17201CA | BOLT | |||
| 01125N8061 | 17201C | BOLT | |||
| 0155500911 | 17020FA | CLAMP | |||
| 0155500931 | 17020FC | CLAMP | |||
| 16439V500B | 17020F | CLAMP | |||
| 16439V500C | 17020FB | CLAMP | |||
| 170405RB0A | 17040 | FUEL PUMP - IN TANK | |||
| 172025RA0B | 17201 | TANK ASSY - FUEL | |||
| 172025RB0A | 17201 | TANK ASSY - FUEL | |||
| 172215RA0B | 17220Q | TUBE ASSY - FILLER | |||
| 172265RA0A | 17020Q | HOSE - VENTILATION, FUEL TANK | |||
| 172285RA0A | 17228M | HOSE - FILLER | |||
| 172285RB0A | 17228M | HOSE - FILLER | |||
| 172511HM1A | 17251 | CAP ASSY - FILLER | |||
| 172515RA0A | 17251 | CAP ASSY - FILLER | |||
| 17342EA000 | 17342Q | PACKING - FUEL GAUGE | |||
| 173431LB0A | 17343 | PLATE - LOCK, FUEL GAUGE | |||
| 174061HK0A | 17406 | BAND ASSY - FUEL TANK MOUNTING | |||
| 174071HK0A | 17406M | BAND ASSY - FUEL TANK, MOUNTING | |||
| 174295RA0A | 17429N | RETAINER - FUEL CAP, MOUNTING | |||
| 175715RB1A | 17020H | CLIP | |||
| 250605RB0A | 25060Y | FUEL LEVEL SENSOR |
