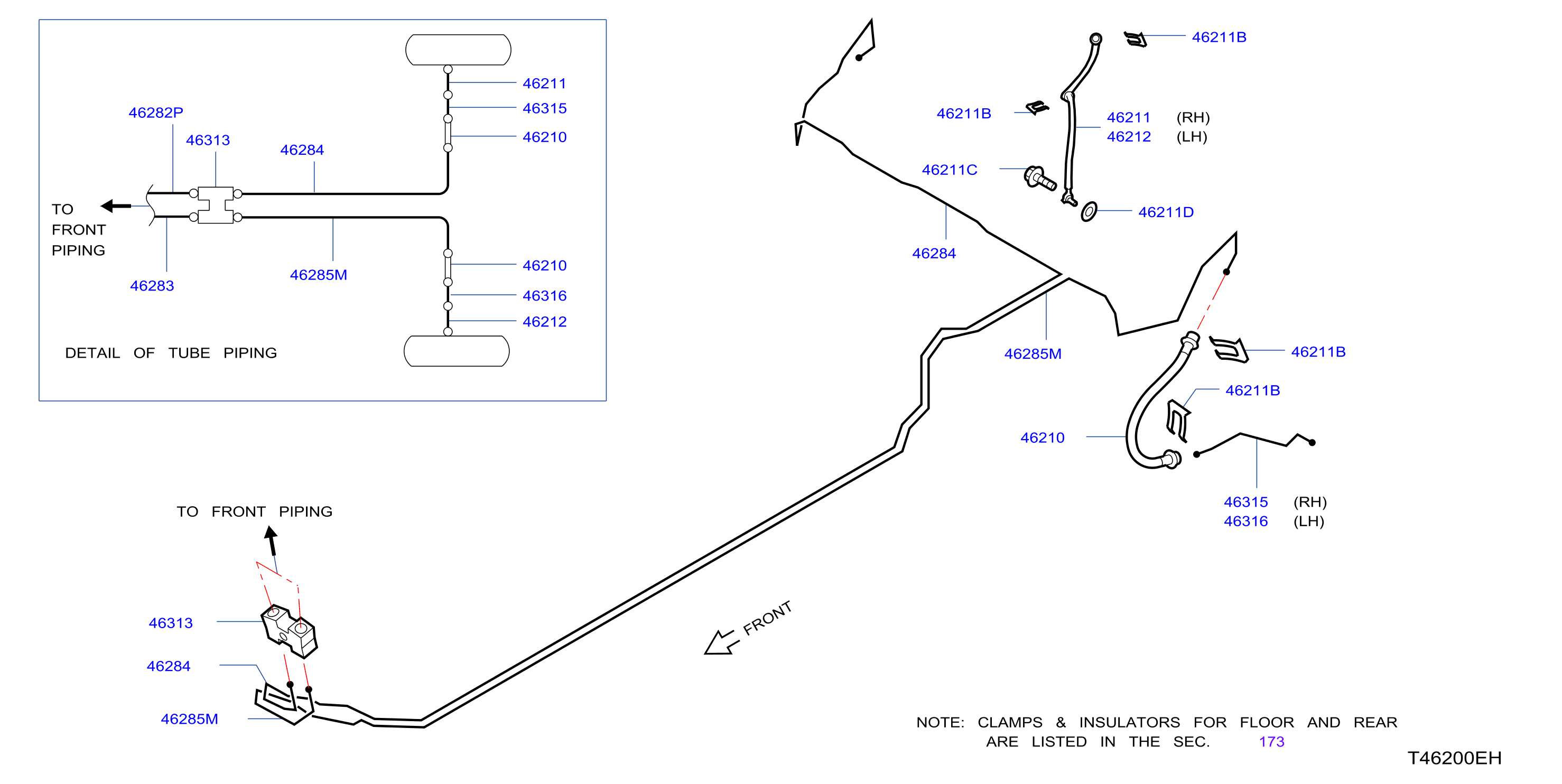

Brake Piping Control Rear Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-002-01 | Brake Piping Control Rear Piping | 2018 - 2022 |
BODY: 5HB
|
No illustration for this section
The full parts list is available below
Parts in this diagram 22
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 462063DA0A | 46211B | SPRING - LOCK, BRAKE HOSE | |||
| 462105R60B | 46211 | HOSE ASSY - BRAKE, REAR RH | |||
| 462105RF5A | 46210 | HOSE ASSY - BRAKE, REAR | |||
| 462105RF7B | 46211 | HOSE ASSY - BRAKE, REAR RH | |||
| 462115RF7B | 46212 | HOSE ASSY - BRAKE, REAR LH | |||
| 46237AV601 | 46211D | GASKET - BRAKE HOSE | |||
| 462822YK0A | 46282P | TUBE ASSY - BRAKE, ACTUATOR TO REAR | |||
| 462825RT0A | 46282P | TUBE ASSY - BRAKE, ACTUATOR TO REAR | |||
| 462832YK0A | 46283 | TUBE ASSY - BRAKE, REAR | |||
| 462835RT0A | 46283 | TUBE ASSY - BRAKE, REAR |
