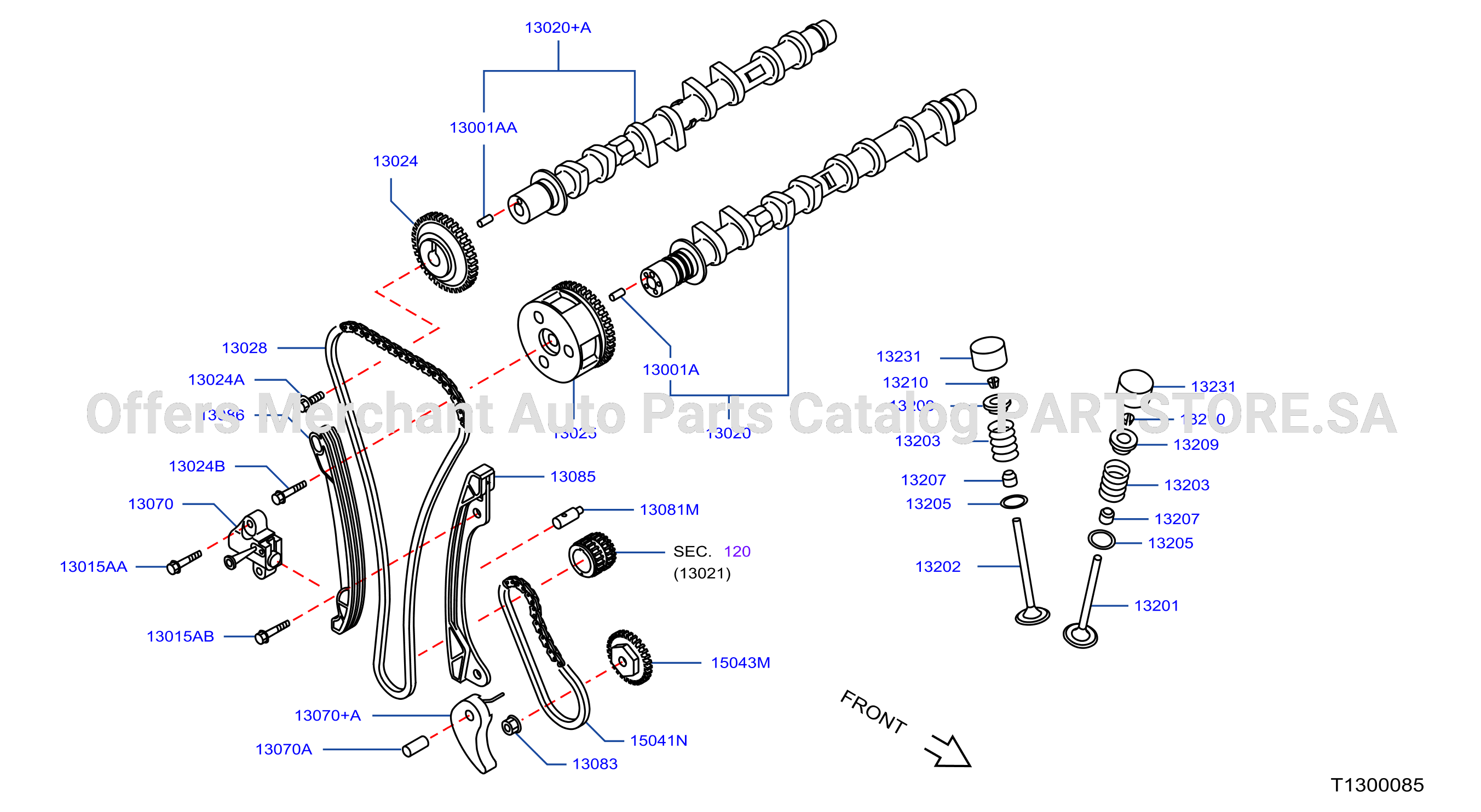

Camshaft Valve Mechanism Camshaft Valve Mechanism
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 130A-003-01 | Camshaft Valve Mechanism Camshaft Valve Mechanism | 2018 - 2019 |
AREA: BRAZIL
ENGINE: HR16DE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 90
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125E6041 | 13015AA | BOLT | |||
| 01125E8031 | 13015AB | BOLT | |||
| 01225E8011 | 13083 | NUT - LOCK | |||
| 13004ED000 | 13001A | PIN - DOWEL | |||
| 13012CJ00A | 13024A | BOLT - SPROCKET, CAMSHAFT | |||
| 13012ED000 | 13024B | BOLT - SPROCKET, CAMSHAFT | |||
| 130203HC0A | 13020 | CAMSHAFT ASSY | |||
| 130203HC0C | 13020+A | CAMSHAFT ASSY | |||
| 130243AC0A | 13024 | SPROCKET - CAMSHAFT | |||
| 130253AC0A | 13025 | SPROCKET - CAMSHAFT, INTAKE |
of
9
