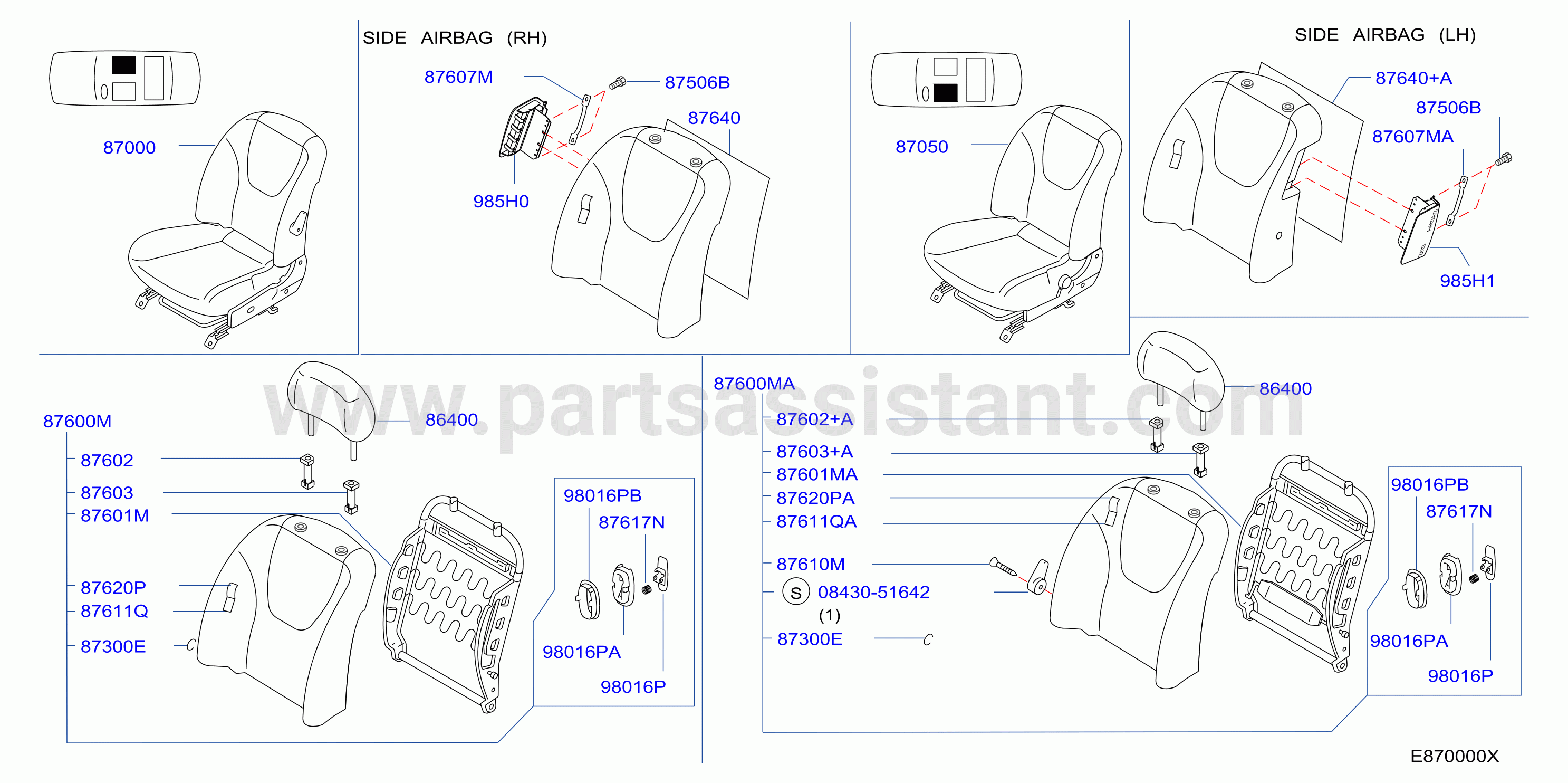

Browse Parts — Front Seat Seat Abck
Code Name Period Specifications
870I-003-01 Front Seat Seat Abck 1999 - ...
BODY: S GRADE: EP2
Part Number Offers Part Code Name Match
0122500921 87506B NUT
0843051642 0843051642 SCREW - MACHINE
864009F403 86400 HEADREST ASSY - FRONT SEAT
864009F413 86400 HEADREST ASSY - FRONT SEAT
864009F414 86400 HEADREST ASSY - FRONT SEAT
8690132200 87300E CLIP
870009F400 87000 SEAT ASSY - FRONT, RH
870009F401 87000 SEAT ASSY - FRONT, RH
870009F406 87000 SEAT ASSY - FRONT, RH
870009F407 87000 SEAT ASSY - FRONT, RH
870009F502 87000 SEAT ASSY - FRONT, RH
870009F503 87000 SEAT ASSY - FRONT, RH
870009F508 87000 SEAT ASSY - FRONT, RH
870009F509 87000 SEAT ASSY - FRONT, RH
87000BE700 87000 SEAT ASSY - FRONT, RH
870509F416 87050 SEAT ASSY - FRONT, LH
870509F417 87050 SEAT ASSY - FRONT, LH
870509F420 87050 SEAT ASSY - FRONT, LH
870509F421 87050 SEAT ASSY - FRONT, LH
870509F512 87050 SEAT ASSY - FRONT, LH
870509F513 87050 SEAT ASSY - FRONT, LH
870509F514 87050 SEAT ASSY - FRONT, LH
870509F515 87050 SEAT ASSY - FRONT, LH
87050BE708 87050 SEAT ASSY - FRONT, LH
876009F400 87600M BACK ASSY - FRONT SEAT
876009F401 87600M BACK ASSY - FRONT SEAT
876009F502 87600M BACK ASSY - FRONT SEAT
876009F503 87600M BACK ASSY - FRONT SEAT
87600BE760 87600M BACK ASSY - FRONT SEAT
87600BE761 87600M BACK ASSY - FRONT SEAT
87600BE772 87600M BACK ASSY - FRONT SEAT
87600BE773 87600M BACK ASSY - FRONT SEAT
876019F410 87601M FRAME ASSY - BACK, FRONT SEAT
876019F470 87601M FRAME ASSY - BACK, FRONT SEAT
87601BE770 87601M FRAME ASSY - BACK, FRONT SEAT
876029F401 87602 HOLDER ASSY - HEADREST, LOCK
876029F402 87602 HOLDER ASSY - HEADREST, LOCK
876039F401 87603 HOLDER ASSY - HEADREST, FREE
876039F402 87603 HOLDER ASSY - HEADREST, FREE
87607BE700 87607M ROD - AIR BAG, FRONT SEAT
876109F401 87610M LEVER - FRONT SEAT BACK
876109F402 87610M LEVER - FRONT SEAT BACK
876119F400 87611Q PAD ASSY - BACK, FRONT SEAT OUTER RH
876119F460 87611Q PAD ASSY - BACK, FRONT SEAT OUTER RH
87611BE760 87611Q PAD ASSY - BACK, FRONT SEAT OUTER RH
876179F400 87617N SPRING - TILT LEVER
876209F400 87620P TRIM ASSY - BACK, FRONT SEAT
876209F401 87620P TRIM ASSY - BACK, FRONT SEAT
876209F402 87620P TRIM ASSY - BACK, FRONT SEAT
876209F460 87620P TRIM ASSY - BACK, FRONT SEAT
876209F461 87620P TRIM ASSY - BACK, FRONT SEAT
876209F462 87620P TRIM ASSY - BACK, FRONT SEAT
876209F500 87620P TRIM ASSY - BACK, FRONT SEAT
876209F501 87620P TRIM ASSY - BACK, FRONT SEAT
876209F502 87620P TRIM ASSY - BACK, FRONT SEAT
876209F560 87620P TRIM ASSY - BACK, FRONT SEAT
876209F561 87620P TRIM ASSY - BACK, FRONT SEAT
87620BE760 87620P TRIM ASSY - BACK, FRONT SEAT
87620BE761 87620P TRIM ASSY - BACK, FRONT SEAT
87620BE772 87620P TRIM ASSY - BACK, FRONT SEAT
87620BE773 87620P TRIM ASSY - BACK, FRONT SEAT
876409F401 87640 BOARD ASSY - FRONT SEAT BACK
876409F402 87640 BOARD ASSY - FRONT SEAT BACK
876409F411 87640 BOARD ASSY - FRONT SEAT BACK
876409F412 87640 BOARD ASSY - FRONT SEAT BACK
876509F406 87600MA BACK ASSY - FRONT SEAT
876509F407 87600MA BACK ASSY - FRONT SEAT
876509F502 87600MA BACK ASSY - FRONT SEAT
876509F503 87600MA BACK ASSY - FRONT SEAT
87650BE760 87600MA BACK ASSY - FRONT SEAT
87650BE761 87600MA BACK ASSY - FRONT SEAT
87650BE772 87600MA BACK ASSY - FRONT SEAT
87650BE773 87600MA BACK ASSY - FRONT SEAT
876519F415 87601MA FRAME ASSY - BACK, FRONT SEAT
876519F475 87601MA FRAME ASSY - BACK, FRONT SEAT
87651BE775 87601MA FRAME ASSY - BACK, FRONT SEAT
876619F400 87611QA PAD ASSY - BACK, FRONT SEAT OUTER RH
876619F460 87611QA PAD ASSY - BACK, FRONT SEAT OUTER RH
87661BE760 87611QA PAD ASSY - BACK, FRONT SEAT OUTER RH
876709F462 87620PA TRIM ASSY - BACK, FRONT SEAT
876709F463 87620PA TRIM ASSY - BACK, FRONT SEAT
876709F562 87620PA TRIM ASSY - BACK, FRONT SEAT
876709F563 87620PA TRIM ASSY - BACK, FRONT SEAT
87670BE760 87620PA TRIM ASSY - BACK, FRONT SEAT
87670BE761 87620PA TRIM ASSY - BACK, FRONT SEAT
87670BE772 87620PA TRIM ASSY - BACK, FRONT SEAT
87670BE773 87620PA TRIM ASSY - BACK, FRONT SEAT
876909F401 87640+A BOARD ASSY - FRONT SEAT BACK
876909F402 87640+A BOARD ASSY - FRONT SEAT BACK
876909F411 87640+A BOARD ASSY - FRONT SEAT BACK
876909F412 87640+A BOARD ASSY - FRONT SEAT BACK
876941F720 98016PB HOOK - MALE
876949F501 98016P HOOK - MALE
876949F502 98016P HOOK - MALE
876949F511 98016PA HOOK - MALE
876949F512 98016PA HOOK - MALE
87857BM400 87506B NUT
985H06F800 985H0 MODULE ASSY - SIDE AIR BAG, FRONT RH
985H0BE800 985H0 MODULE ASSY - SIDE AIR BAG, FRONT RH
985H16F800 985H1 MODULE ASSY - SIDE AIR BAG, FRONT LH
985H1BE800 985H1 MODULE ASSY - SIDE AIR BAG, FRONT LH
H70009F460 87000 SEAT ASSY - FRONT, RH
H70009F461 87000 SEAT ASSY - FRONT, RH
H70009F466 87000 SEAT ASSY - FRONT, RH
H70009F467 87000 SEAT ASSY - FRONT, RH
H70009F562 87000 SEAT ASSY - FRONT, RH
H70009F563 87000 SEAT ASSY - FRONT, RH
H70009F574 87000 SEAT ASSY - FRONT, RH
H70009F575 87000 SEAT ASSY - FRONT, RH
H7000BE704 87000 SEAT ASSY - FRONT, RH
H7000BE760 87000 SEAT ASSY - FRONT, RH
H7000BE761 87000 SEAT ASSY - FRONT, RH
H7000BE772 87000 SEAT ASSY - FRONT, RH
H7000BE773 87000 SEAT ASSY - FRONT, RH
H70509F476 87050 SEAT ASSY - FRONT, LH
H70509F477 87050 SEAT ASSY - FRONT, LH
H70509F480 87050 SEAT ASSY - FRONT, LH
H70509F481 87050 SEAT ASSY - FRONT, LH
H70509F572 87050 SEAT ASSY - FRONT, LH
H70509F573 87050 SEAT ASSY - FRONT, LH
H70509F578 87050 SEAT ASSY - FRONT, LH
H70509F579 87050 SEAT ASSY - FRONT, LH
H7050BE709 87050 SEAT ASSY - FRONT, LH
H7050BE767 87050 SEAT ASSY - FRONT, LH
H7050BE768 87050 SEAT ASSY - FRONT, LH
H7050BE776 87050 SEAT ASSY - FRONT, LH
H7050BE777 87050 SEAT ASSY - FRONT, LH
H76009F460 87600M BACK ASSY - FRONT SEAT
H76009F461 87600M BACK ASSY - FRONT SEAT
H76009F562 87600M BACK ASSY - FRONT SEAT
H76009F563 87600M BACK ASSY - FRONT SEAT
H76509F466 87600MA BACK ASSY - FRONT SEAT
H76509F467 87600MA BACK ASSY - FRONT SEAT
H76509F562 87600MA BACK ASSY - FRONT SEAT
H76509F563 87600MA BACK ASSY - FRONT SEAT
