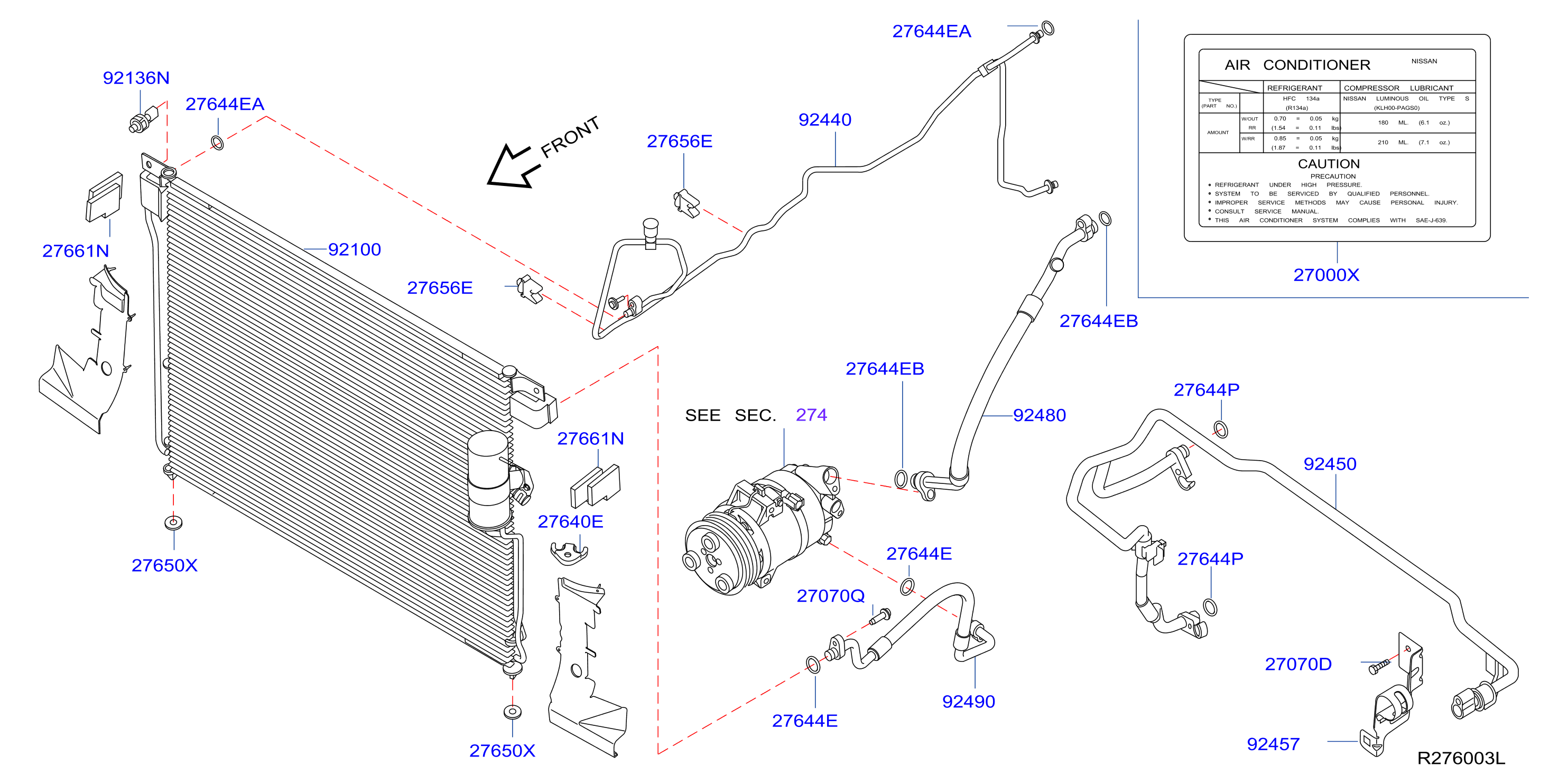

Condenser Liquid Tank Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276A-001-01 | Condenser Liquid Tank Piping | 2007 - 2008 |
BODY: W
|
No illustration for this section
The full parts list is available below
Parts in this diagram 22
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 011210041U | 27070Q | BOLT | |||
| 0145600411 | 27070D | SCREW | |||
| 175573B000 | 27656E | CLIP | |||
| 27090EA000 | 27000X | LABEL - CAUTION, AIR CONDITIONER | |||
| 27090EA010 | 27000X | LABEL - CAUTION, AIR CONDITIONER | |||
| 92100ZP50A | 92100 | CONDENSER & LIQUID TANK ASSY | |||
| 92118EA000 | 27650X | MOUNTING - RUBBER, CONDENSER UPPER | |||
| 921356M100 | 27640E | BRACKET - LIQUID TANK | |||
| 921363Z600 | 92136N | SENSOR ASSY - PRESSURE | |||
| 92136EL00A | 92136N | SENSOR ASSY - PRESSURE |
