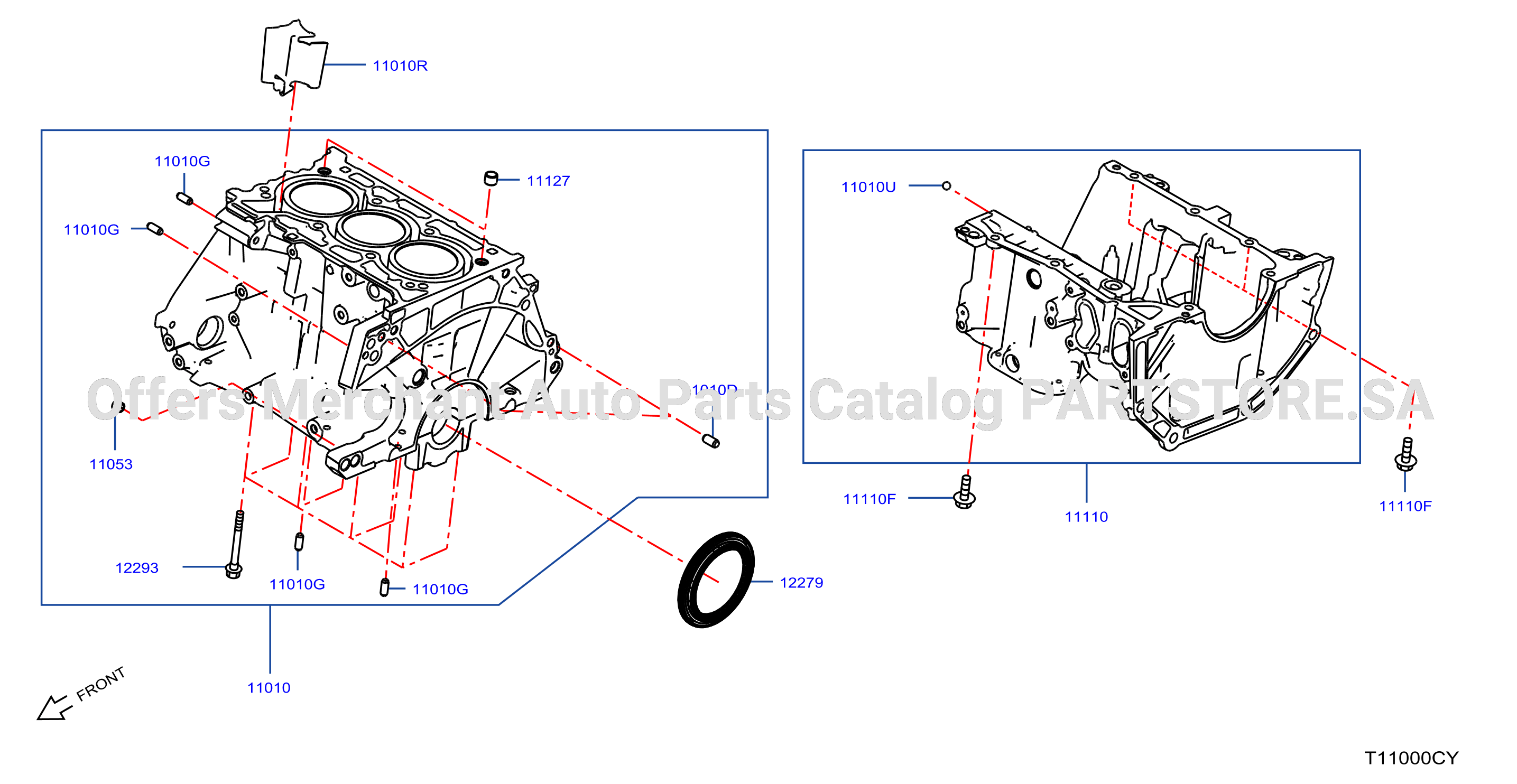

Cylinder Block Oil Pan Assembly
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 110A-003-01 | Cylinder Block Oil Pan Assembly | 2022 - 2023 |
ENGINE: HR10DE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 12
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0465100QAA | 11053 | PIN - SPRING | |||
| 110005EK0A | 11010 | BLOCK ASSY - CYLINDER | |||
| 1102277A00 | 11010G | PIN - DOWEL, CYLINDER BLOCK | |||
| 1105100Q0C | 11010R | PLUG | |||
| 111105EK0A | 11110 | PAN ASSY - OIL | |||
| 1112700Q0A | 11127 | COLLAR - OIL PAN | |||
| 1227900Q0E | 12279 | SEAL - OIL, CRANKSHAFT REAR | |||
| 1227900Q0L | 12279 | SEAL - OIL, CRANKSHAFT REAR | |||
| 12293ED00A | 12293 | BOLT - MAIN BEARING CAP | |||
| 30412H1001 | 11010D | PIN - DOWEL, CYLINDER BLOCK |
of
2
