| Code | Name | Period | Specifications |
|---|---|---|---|

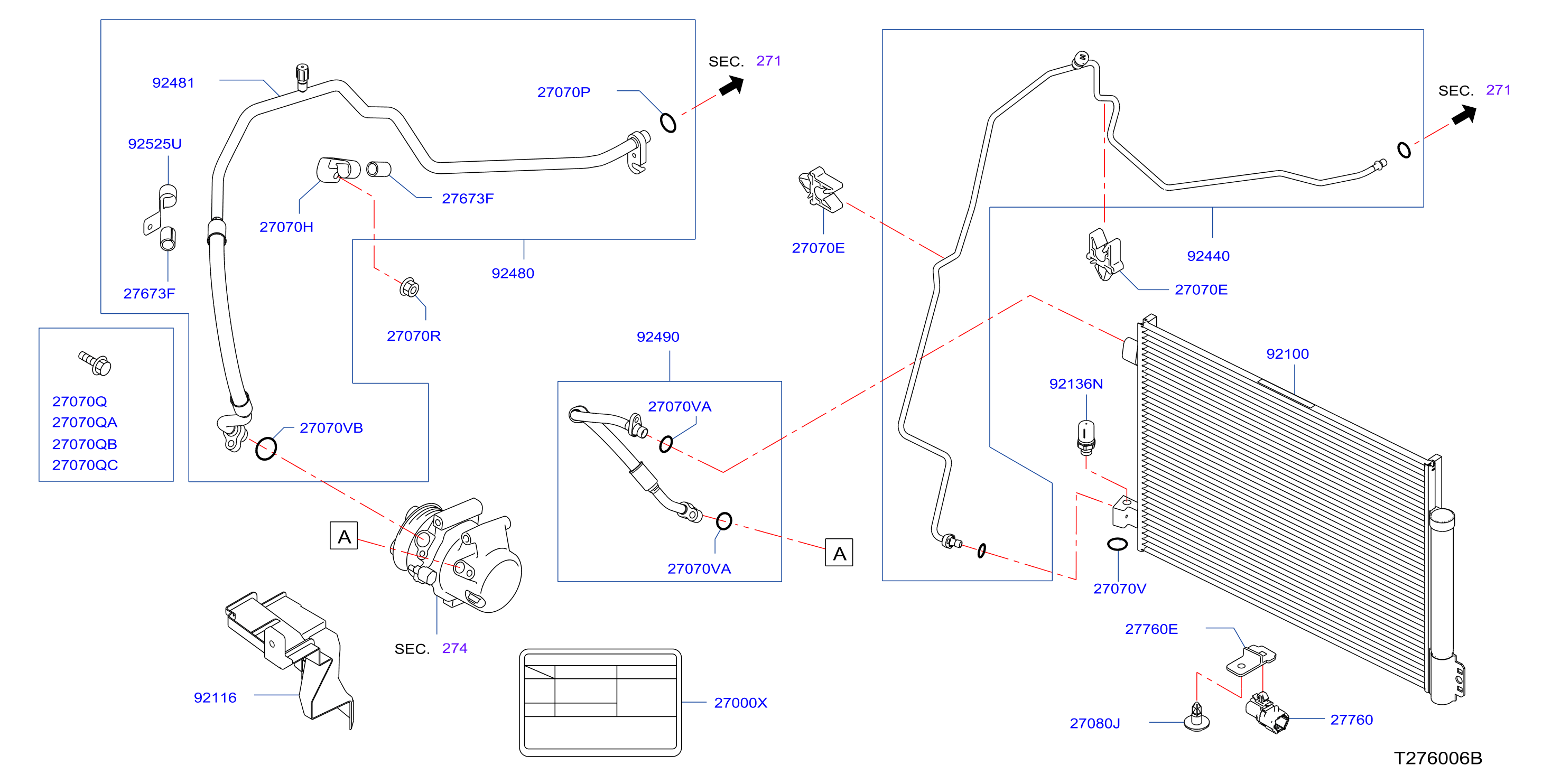

| 276C-001-01 | Condenser Liquid Tank Piping | 2018 - ... |
AREA: LAC
BODY: SED
TRANSMISSION: 5MT
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01125N6011 | 27070Q | BOLT | ||
| 01125N6021 | 27070QA | BOLT | ||
| 01125N6031 | 27070QB | BOLT | ||
| 01125N8051 | 27070QC | BOLT | ||
| 01225N6011 | 27070R | NUT | ||
| 270901HC1D | 27000X | LABEL - CAUTION, AIR CONDITIONER | ||
| 46271EW00A | 27070E | CLIP | ||
| 921003HU0A | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 921003HU0C | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 921363HU0A | 92136N | SENSOR ASSY - PRESSURE | ||
| 921849KE0B | 92116 | AIR GUIDE - CONDENSER | ||
| 924409LH0A | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92471N8210 | 27070V | SEAL - O RING | ||
| 92472N8210 | 27070VA | SEAL - O RING | ||
| 92473N8210 | 27070P | SEAL - O RING | ||
| 92474N8210 | 27070VB | SEAL - O RING | ||
| 924809LH0A | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924819LH0A | 92481 | HOSE - FLEXIBLE, LOW | ||
| 924909LM0A | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 925539LH0A | 27070H | CLAMP | ||
| 925549LH0A | 92525U | CLIP | ||
| 925579LH0A | 27673F | PROTECTOR - CLAMP TUBE |
