| Code | Name | Period | Specifications |
|---|---|---|---|

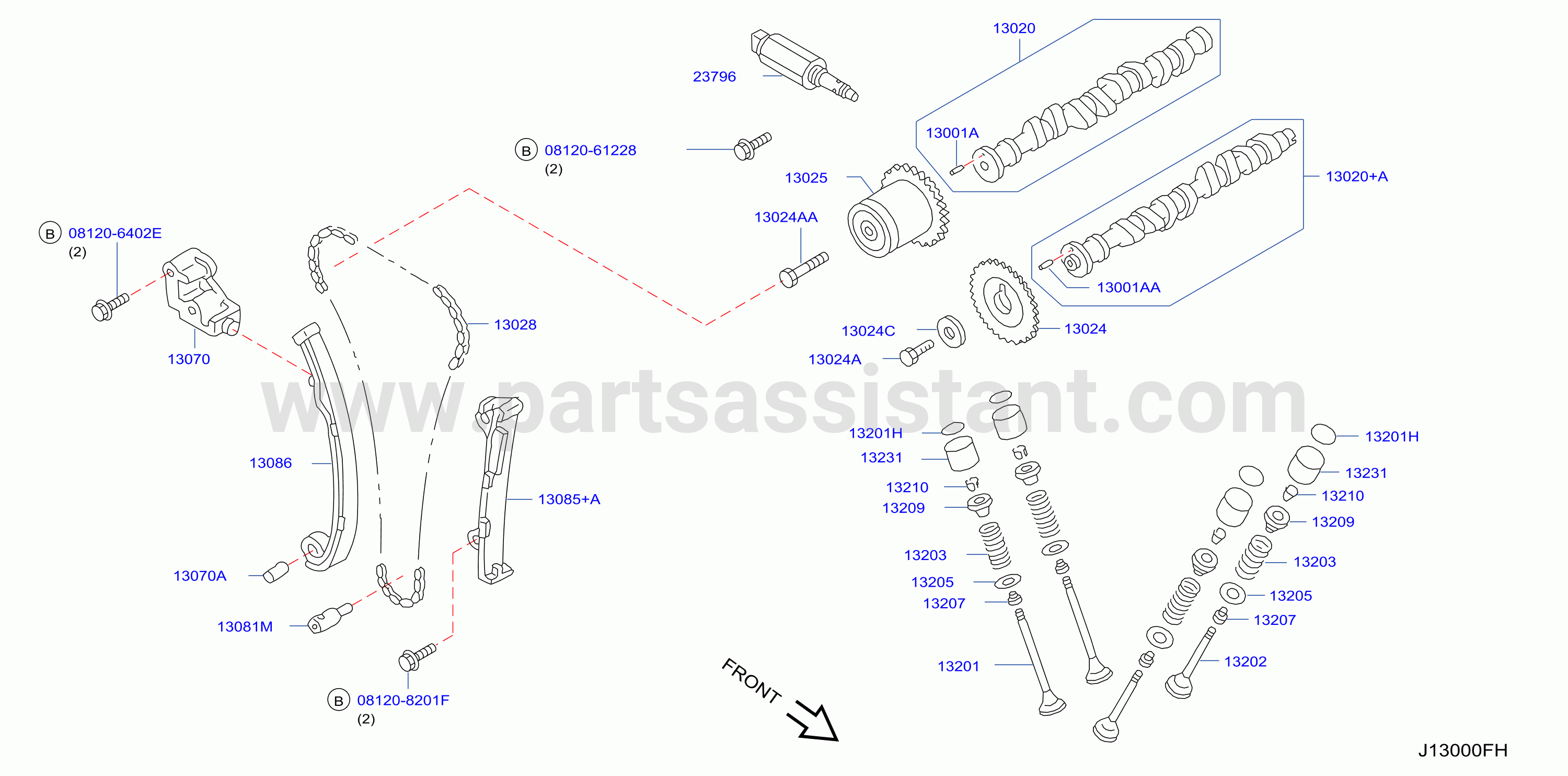

| 130C-002-01 | Camshaft Valve Mechanism Qg16De | 2003 - 2009 |
ENGINE: QG16DE
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0812061228 | 0812061228 | BOLT - HEX | ||
| 081206402E | 081206402E | BOLT - HEX | ||
| 081208201F | 081208201F | BOLT - HEX | ||
| 130205M010 | 13020+A | CAMSHAFT ASSY | ||
| 130244M510 | 13024 | SPROCKET - CAMSHAFT | ||
| 130284M501 | 13028 | TIMING CHAIN - CAMCHAFT | ||
| 130284M502 | 13028 | TIMING CHAIN - CAMCHAFT | ||
| 130284M511 | 13028 | TIMING CHAIN - CAMCHAFT | ||
| 130284M512 | 13028 | TIMING CHAIN - CAMCHAFT | ||
| 130284M51A | 13028 | TIMING CHAIN - CAMCHAFT | ||
| 1303218000 | 13001AA | PIN - DOWEL | ||
| 130704M500 | 13070 | TENSIONER ASSY - CHAIN | ||
| 13070AU000 | 13070 | TENSIONER ASSY - CHAIN | ||
| 130814M500 | 13081M | JET - OIL | ||
| 130854M500 | 13085+A | GUIDE - CHAIN, TENSION SIDE | ||
| 130914M500 | 13086 | GUIDE - CHAIN, SLACK SIDE | ||
| 130944M500 | 13070A | BOLT - TENSIONER | ||
| 130944M501 | 13070A | BOLT - TENSIONER | ||
| 1320353Y00 | 13203 | SPRING - VALVE, OUTER | ||
| 1320353Y10 | 13203 | SPRING - VALVE, OUTER | ||
| 13203AN210 | 13203 | SPRING - VALVE, OUTER | ||
| 1320553Y00 | 13205 | SEAT - VALVE SPRING, OUTER | ||
| 1320753Y00 | 13207 | SEAL - OIL, VALVE | ||
| 1320753Y10 | 13207 | SEAL - OIL, VALVE | ||
| 1320953Y00 | 13209 | RETAINER - VALVE SPRING | ||
| 1321053Y00 | 13210 | COLLET - VALVE SPRING | ||
| 1322950C00 | 13201H | SHIM - VALVE | ||
| 1322950C01 | 13201H | SHIM - VALVE | ||
| 1322950C02 | 13201H | SHIM - VALVE | ||
| 1322950C03 | 13201H | SHIM - VALVE | ||
| 1322950C04 | 13201H | SHIM - VALVE | ||
| 1322950C05 | 13201H | SHIM - VALVE | ||
| 1322950C06 | 13201H | SHIM - VALVE | ||
| 1322950Y00 | 13201H | SHIM - VALVE | ||
| 1322950Y01 | 13201H | SHIM - VALVE | ||
| 1322950Y02 | 13201H | SHIM - VALVE | ||
| 1322950Y03 | 13201H | SHIM - VALVE | ||
| 1322950Y04 | 13201H | SHIM - VALVE | ||
| 1322950Y05 | 13201H | SHIM - VALVE | ||
| 1322950Y06 | 13201H | SHIM - VALVE | ||
| 1322950Y07 | 13201H | SHIM - VALVE | ||
| 1322950Y08 | 13201H | SHIM - VALVE | ||
| 1322950Y09 | 13201H | SHIM - VALVE | ||
| 1322950Y10 | 13201H | SHIM - VALVE | ||
| 1322950Y11 | 13201H | SHIM - VALVE | ||
| 1322950Y12 | 13201H | SHIM - VALVE | ||
| 1322950Y13 | 13201H | SHIM - VALVE | ||
| 1322950Y14 | 13201H | SHIM - VALVE | ||
| 1322950Y15 | 13201H | SHIM - VALVE | ||
| 1322950Y16 | 13201H | SHIM - VALVE | ||
| 1322950Y17 | 13201H | SHIM - VALVE | ||
| 1322950Y18 | 13201H | SHIM - VALVE | ||
| 1322950Y19 | 13201H | SHIM - VALVE | ||
| 1322950Y20 | 13201H | SHIM - VALVE | ||
| 1322950Y21 | 13201H | SHIM - VALVE | ||
| 1322950Y22 | 13201H | SHIM - VALVE | ||
| 1322950Y23 | 13201H | SHIM - VALVE | ||
| 1322950Y24 | 13201H | SHIM - VALVE | ||
| 1322950Y60 | 13201H | SHIM - VALVE | ||
| 1322950Y61 | 13201H | SHIM - VALVE | ||
| 1322950Y62 | 13201H | SHIM - VALVE | ||
| 1322950Y63 | 13201H | SHIM - VALVE | ||
| 1322950Y64 | 13201H | SHIM - VALVE | ||
| 1322950Y65 | 13201H | SHIM - VALVE | ||
| 1322950Y66 | 13201H | SHIM - VALVE | ||
| 1322950Y67 | 13201H | SHIM - VALVE | ||
| 1322950Y68 | 13201H | SHIM - VALVE | ||
| 1322950Y69 | 13201H | SHIM - VALVE | ||
| 1322950Y70 | 13201H | SHIM - VALVE | ||
| 1322950Y71 | 13201H | SHIM - VALVE | ||
| 1322950Y72 | 13201H | SHIM - VALVE | ||
| 1322950Y73 | 13201H | SHIM - VALVE | ||
| 1322950Y74 | 13201H | SHIM - VALVE | ||
| 1322950Y75 | 13201H | SHIM - VALVE | ||
| 1322950Y76 | 13201H | SHIM - VALVE | ||
| 1322950Y77 | 13201H | SHIM - VALVE | ||
| 1323153Y01 | 13231 | LIFTER - VALVE | ||
| 1323153Y11 | 13231 | LIFTER - VALVE |
