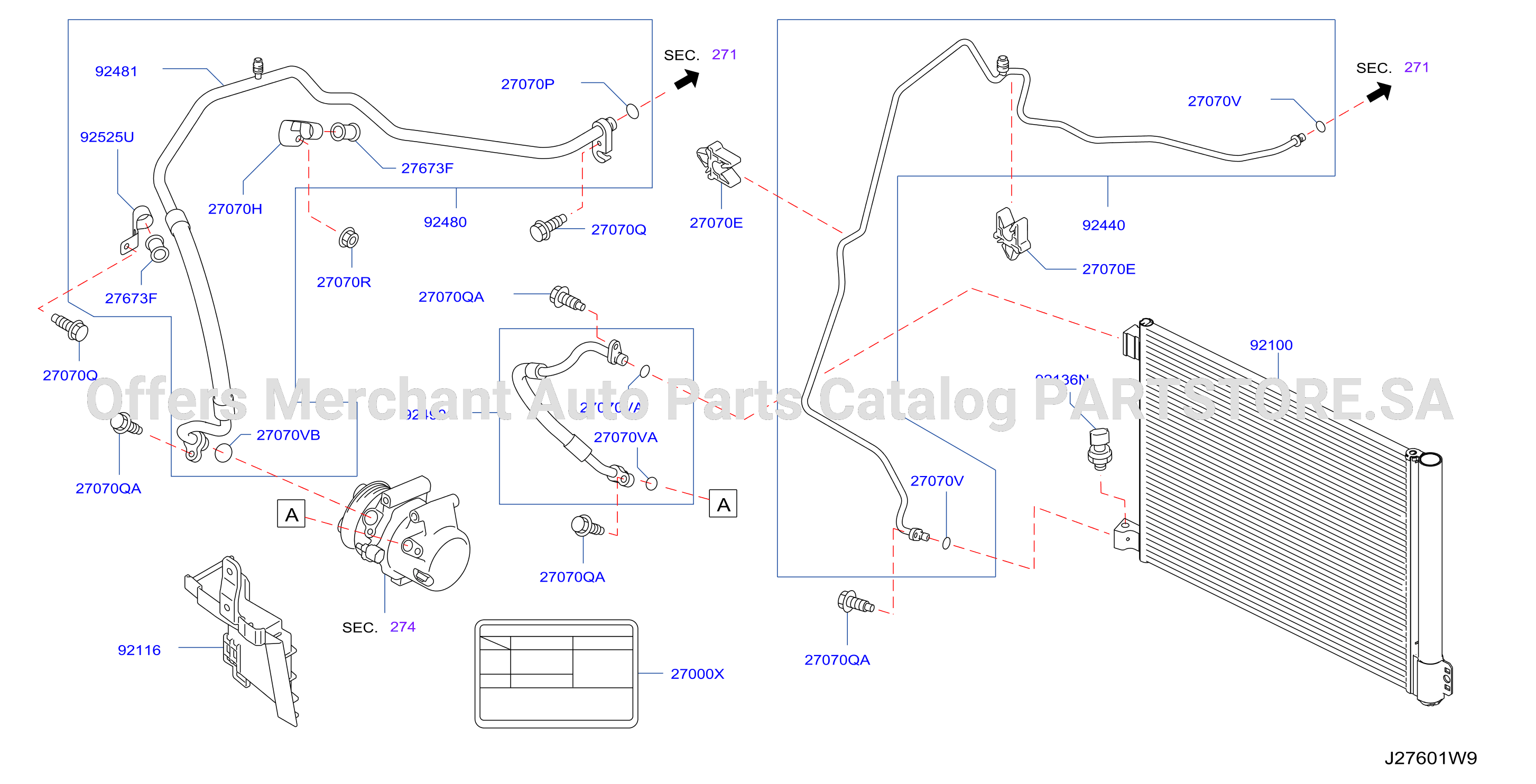

Condenser Liquid Tank Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276A-001-01 | Condenser Liquid Tank Piping | 2014 - ... |
BODY: HB
ENGINE: D4D
|
No illustration for this section
The full parts list is available below
Parts in this diagram 20
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6021 | 27070QA | BOLT | |||
| 01125N6031 | 27070Q | BOLT | |||
| 01225N6011 | 27070R | NUT | |||
| 270901HA1D | 27000X | LABEL - CAUTION, AIR CONDITIONER | |||
| 46271EW00A | 27070E | CLIP | |||
| 921003HU0A | 92100 | CONDENSER & LIQUID TANK ASSY | |||
| 921363HU0A | 92136N | SENSOR ASSY - PRESSURE | |||
| 921849LH0A | 92116 | AIR GUIDE - CONDENSER | |||
| 924409LH0B | 92440 | PIPE ASSY - FRONT COOLER, HIGH | |||
| 92471N8210 | 27070V | SEAL - O RING |
