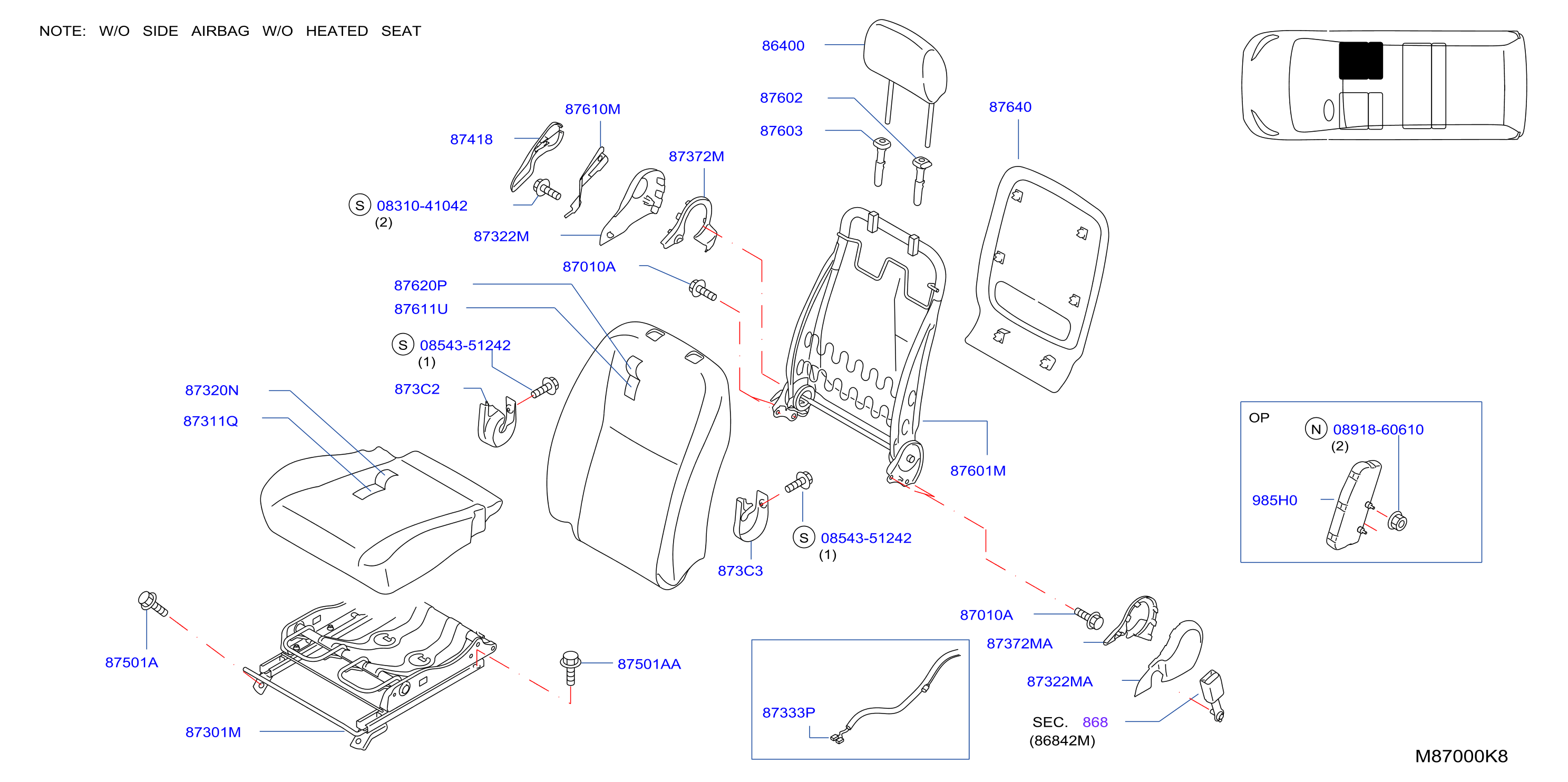

Front Seat Rh Seat W / O Side Airbag W / O Heated Seat
Search by VIN to filter parts for your vehicle
| Code | Name | Period | Specifications |
|---|---|---|---|
| 870A-003-01 | Front Seat Rh Seat W / O Side Airbag W / O Heated Seat | 2012 - 2013 |
BODY: 5D.WAGON
|
No illustration for this section
The full parts list is available below
Parts in this diagram 59
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01121S013E | 87501A | BOLT | |||
| 0831041042 | 0831041042 | SCREW - MACHINE | |||
| 0854351242 | 0854351242 | SCREW - TAPPING | |||
| 0891860610 | 0891860610 | NUT - SLOCK | |||
| 86400BJ00A | 86400 | HEADREST ASSY - FRONT SEAT | |||
| 86400BJ01B | 86400 | HEADREST ASSY - FRONT SEAT | |||
| 8689979910 | 87501A | BOLT | |||
| 868997992A | 87501AA | BOLT | |||
| 87301BJ60C | 87301M | FRAME ASSY - CUSHION, FRONT SEAT | |||
| 87301BJ61B | 87301M | FRAME ASSY - CUSHION, FRONT SEAT |
of
6
