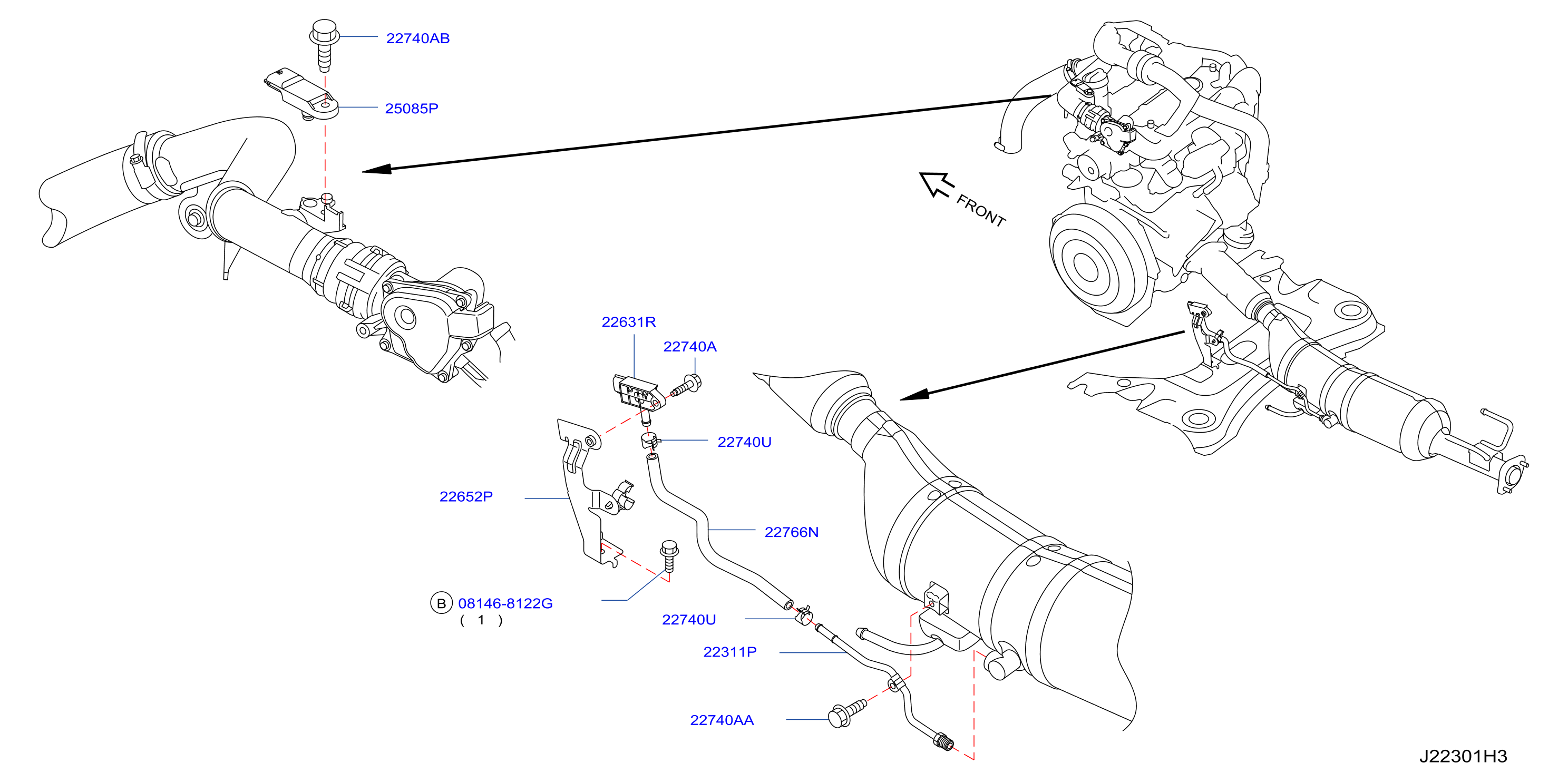

Engine Control Vacuum Piping K9K 400
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 223R-004-01 | Engine Control Vacuum Piping K9K 400 | 2013 - 2015 |
ENGINE: K9K/63KW
OTHER EQUIPMENT: EURO5
|
No illustration for this section
The full parts list is available below
Parts in this diagram 9
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125S617E | 22740A | BOLT | |||
| 081468122G | 081468122G | BOLT - HEX | |||
| 14069JD70A | 22740AA | BOLT | |||
| 1643916E0A | 22740U | CLAMP | |||
| 22340BJ90B | 22311P | TUBE ASSY - PRESSUER SENSOR, INLET | |||
| 22761BJ90A | 22652P | BRACKET - SENSOR | |||
| 22766BJ90A | 22766N | HOSE - PRESSURE | |||
| 2277000Q0A | 22631R | SENSOR ASSY - DPF PRESSURE | |||
| 2508500Q0C | 25085P | SENSOR - BOOST PRESSURE |
