Console Box Tray Type
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 969A-001-01 | Console Box Tray Type | 2017 - ... |
BODY: W5D
GRADE: UPPER
|
No illustration for this section
The full parts list is available below

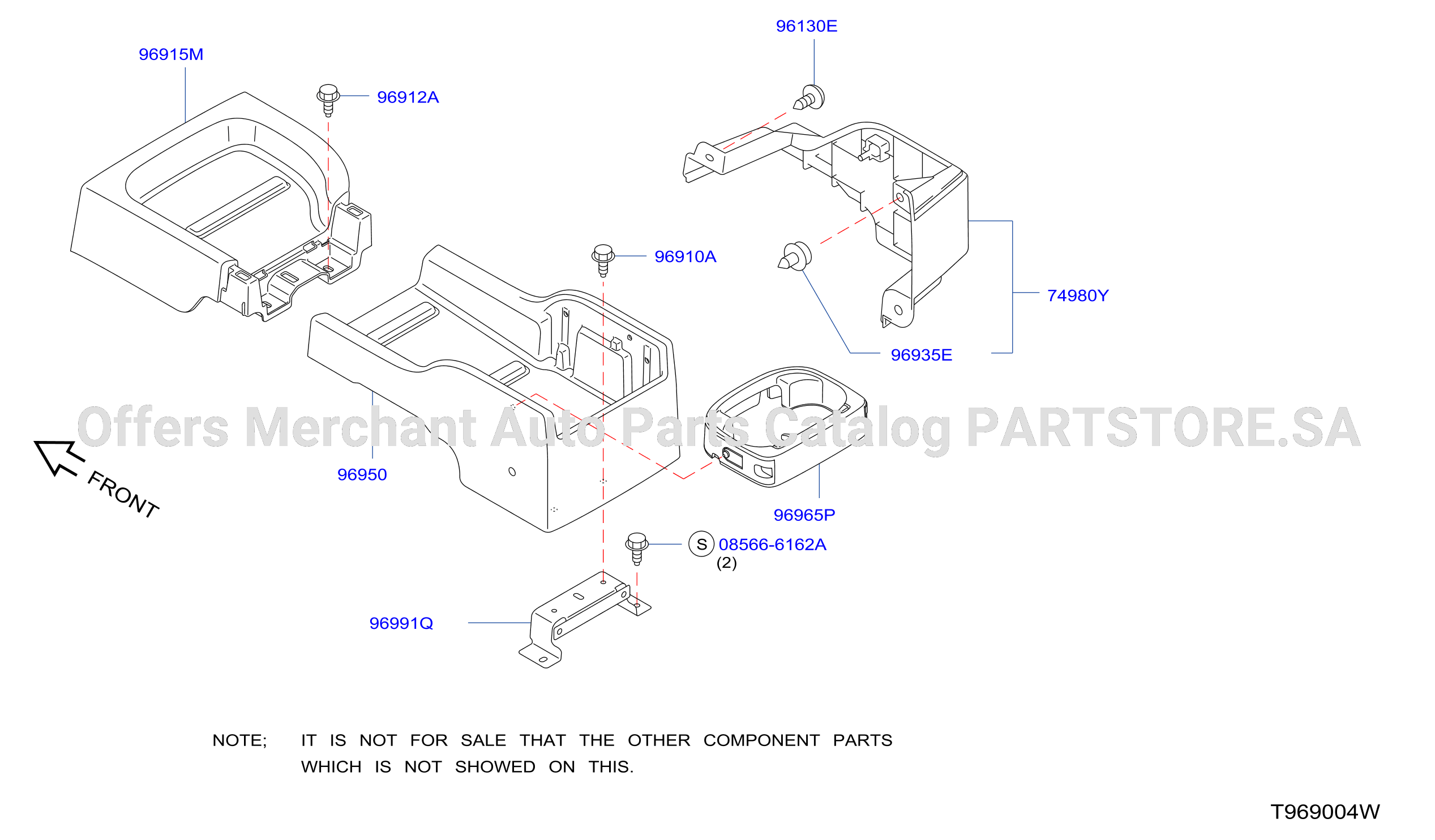

Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01121N6031 | 96910A | BOLT | |||
| 0145100581 | 96912A | SCREW | |||
| 0155309891 | 96935E | CLIP | |||
| 085666162A | 085666162A | SCREW - TAPPING | |||
| 749375LF0A | 74980Y | COVER ASSY - PARKING BRAKE LEVER | |||
| 768825LF1A | 96130E | CLIP | |||
| 969155LF0A | 96915M | CONSOLE ASSY - LOWER | |||
| 969505LF0B | 96950 | CONSOLE BOX ASSY - FLOOR, REAR | |||
| 969655LF0B | 96965P | HOLDER ASSY - CUP, REAR | |||
| 96991JX30A | 96991Q | BRACKET - CONSOLE BOX, REAR |
