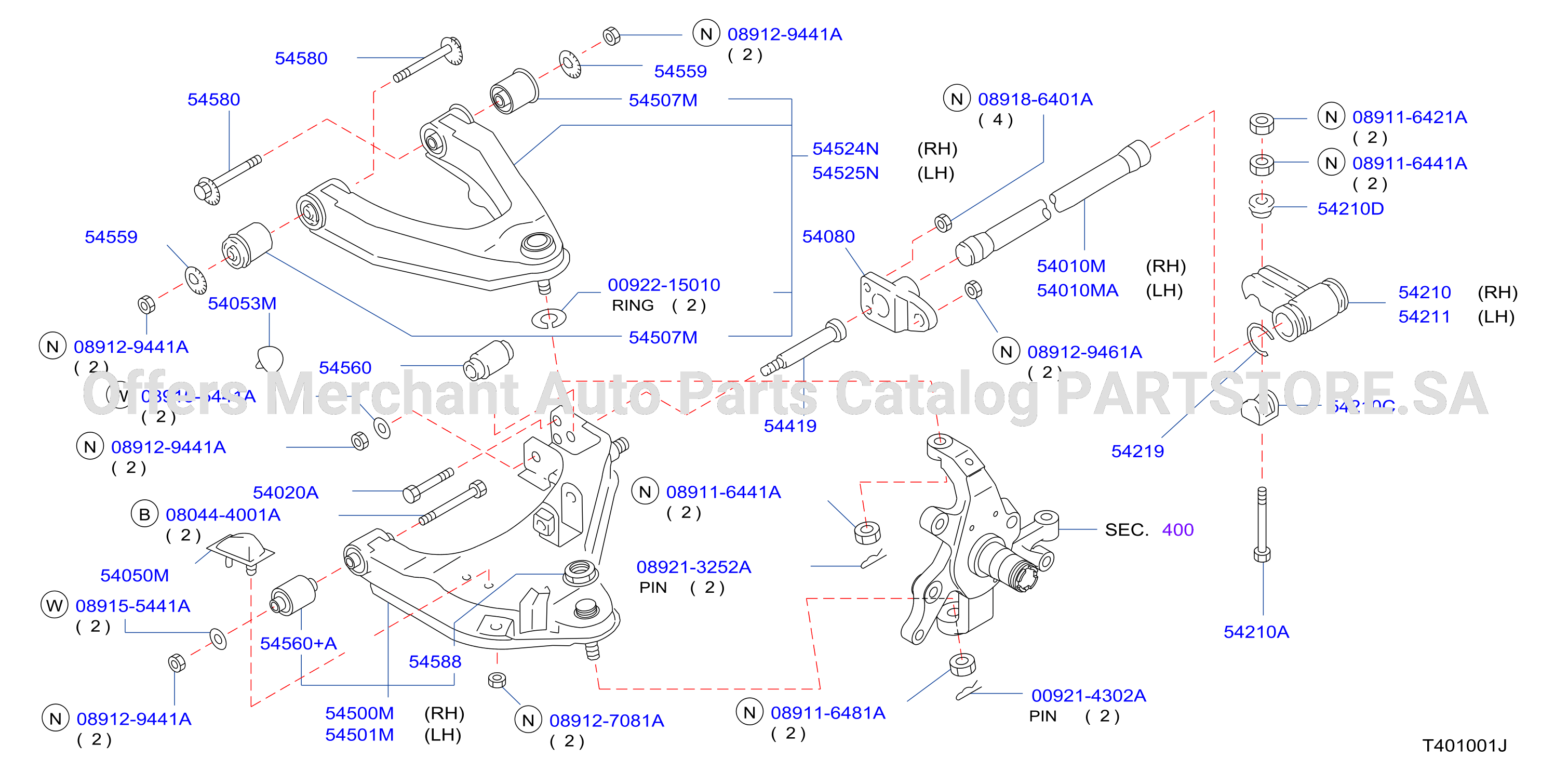

Front Suspension Link Arm Spring
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 401B-001-01 | Front Suspension Link Arm Spring | 2009 - ... |
DRIVE: 4WD
ENGINE: KA24DE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 35
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 009214302A | 009214302A | PIN - COTTER, SPLI | |||
| 0092215010 | 0092215010 | RING - SNAP | |||
| 0111100073 | 54020A | BOLT | |||
| 080444001A | 080444001A | BOLT - HEX | |||
| 089116421A | 089116421A | NUT - HEX | |||
| 089116441A | 089116441A | NUT - HEX | |||
| 089116481A | 089116481A | NUT - HEX | |||
| 089127081A | 089127081A | NUT - HEX | |||
| 089129441A | 089129441A | NUT - HEX | |||
| 089129461A | 089129461A | NUT - HEX |
of
4
