Clutch Master Cylinder
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 305A-001-01 | Clutch Master Cylinder | 2009 - ... |
ENGINE: KA24DE
|
No illustration for this section
The full parts list is available below

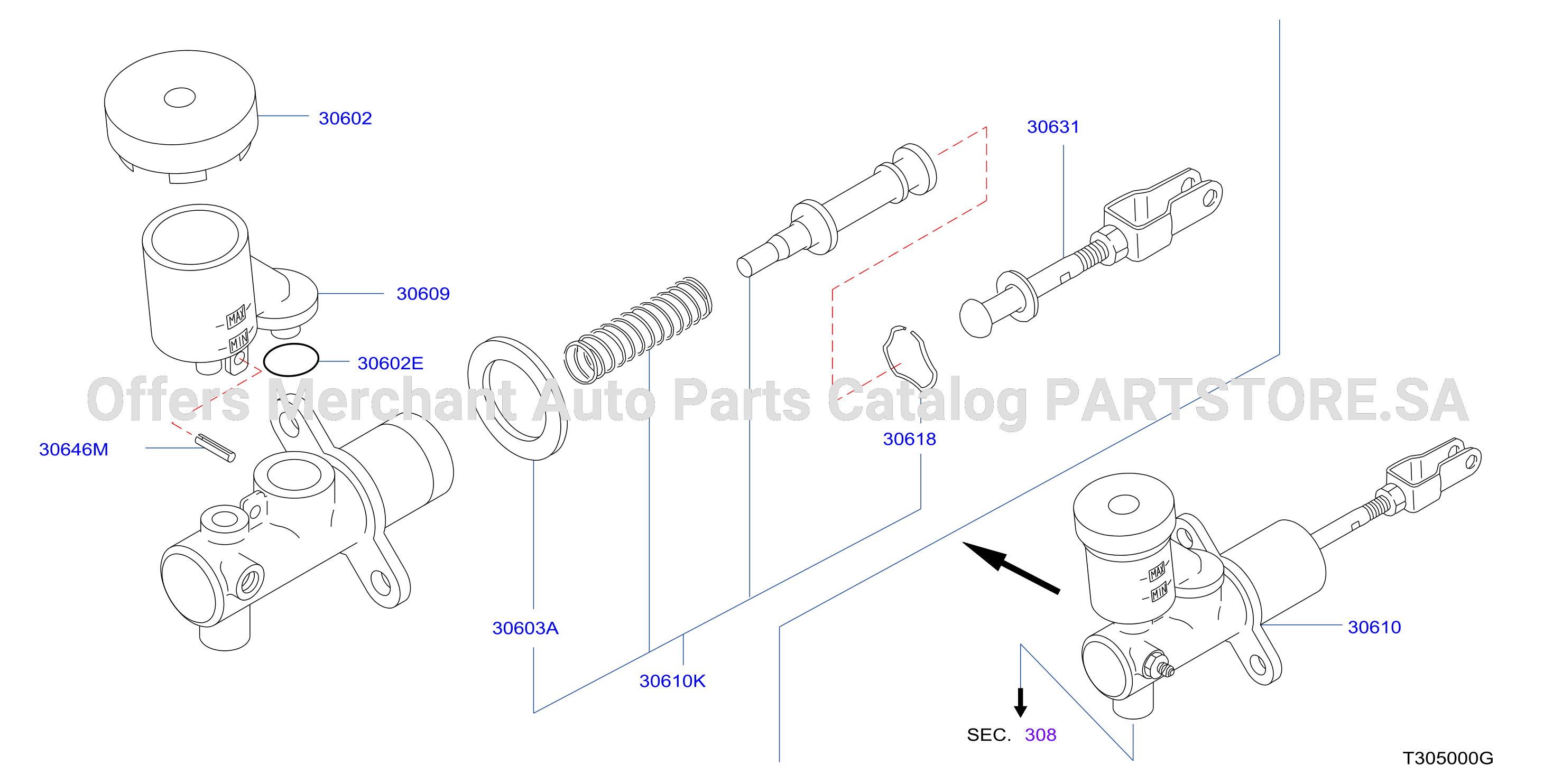

Parts in this diagram 11
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 306103S10A | 30610 | CYLINDER ASSY - CLUTCH MASTER | |||
| 306103S10B | 30610 | CYLINDER ASSY - CLUTCH MASTER | |||
| 306115N325 | 30610K | PISTON KIT - CLUTCH MASTER CYLINDER | |||
| 3061721U00 | 30609 | RESERVOIR - OIL, CLUTCH | |||
| 306313S10A | 30631 | ROD ASSY - PUSH | |||
| 3063181L0A | 30631 | ROD ASSY - PUSH | |||
| 3064421U00 | 30602E | SEAL - O RING, RESERVOIR CAP | |||
| 3065521U00 | 30646M | PIN - SPRING | |||
| 306765M014 | 30603A | GASKET | |||
| 460203S501 | 30602 | CAP ASSY - RESERVOIR |
