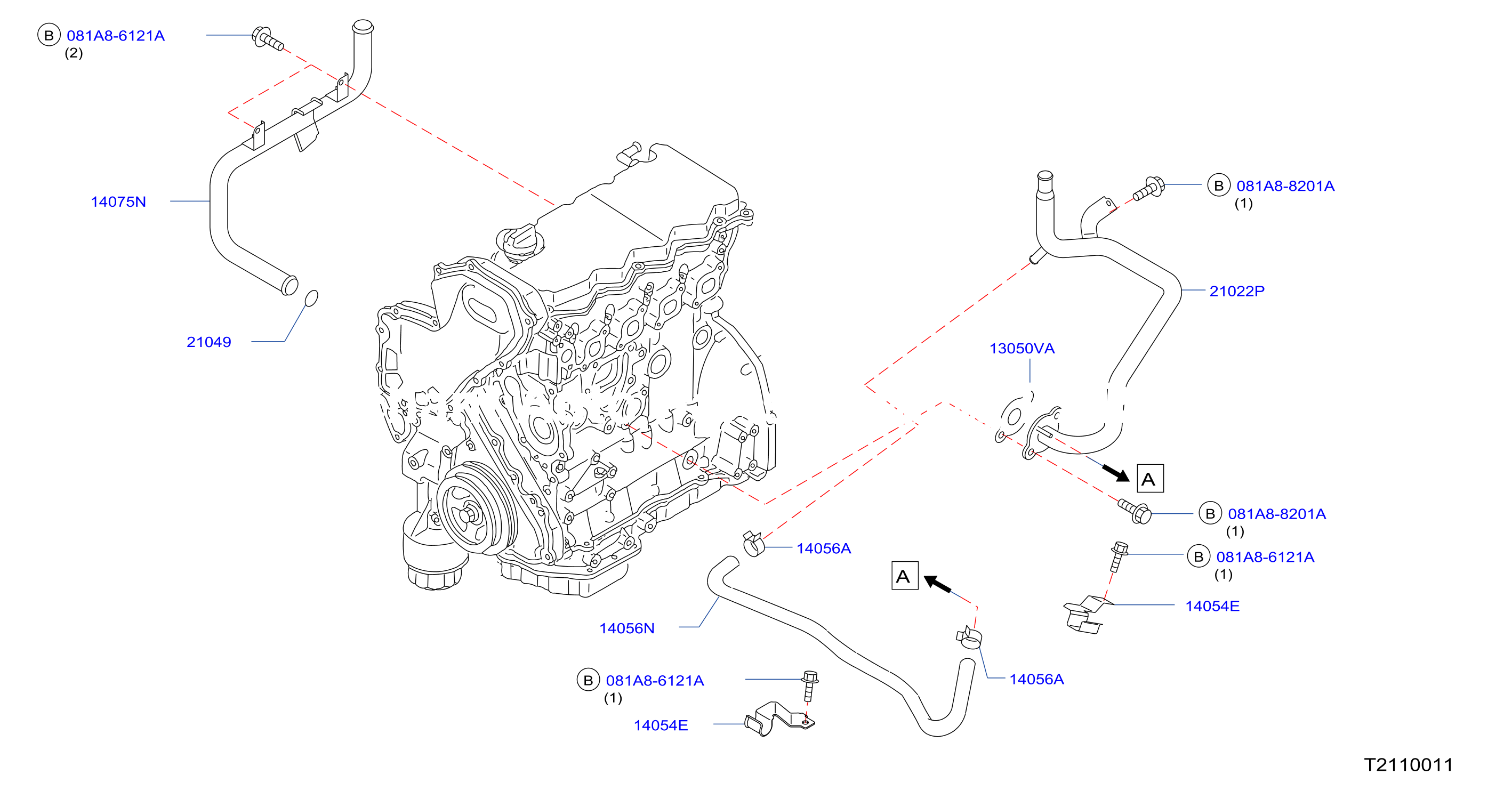

Water Hose Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 211A-001-01 | Water Hose Piping | 2009 - ... |
ENGINE: YD25DDTI
|
No illustration for this section
The full parts list is available below
Parts in this diagram 9
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081A86121A | 081A86121A | BOLT | |||
| 081A88201A | 081A88201A | BOLT | |||
| 13050AD20B | 13050VA | GASKET - WATER CONNECTOR | |||
| 14053VK50A | 14075N | PIPE ASSY - HEATER FEED | |||
| 140562TB0A | 14056N | HOSE - WATER | |||
| 1643956S0A | 14056A | CLAMP - HOSE | |||
| 21022VK50A | 21022P | PIPE ASSY - HEATER | |||
| 2104931U00 | 21049 | SEAL - O RING | |||
| 21514VM00A | 14054E | BRACKET - WATER HOSE |
