Throttle Chamber
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 163B-001-01 | Throttle Chamber | 2012 - ... |
ENGINE: KA24DE
|
No illustration for this section
The full parts list is available below

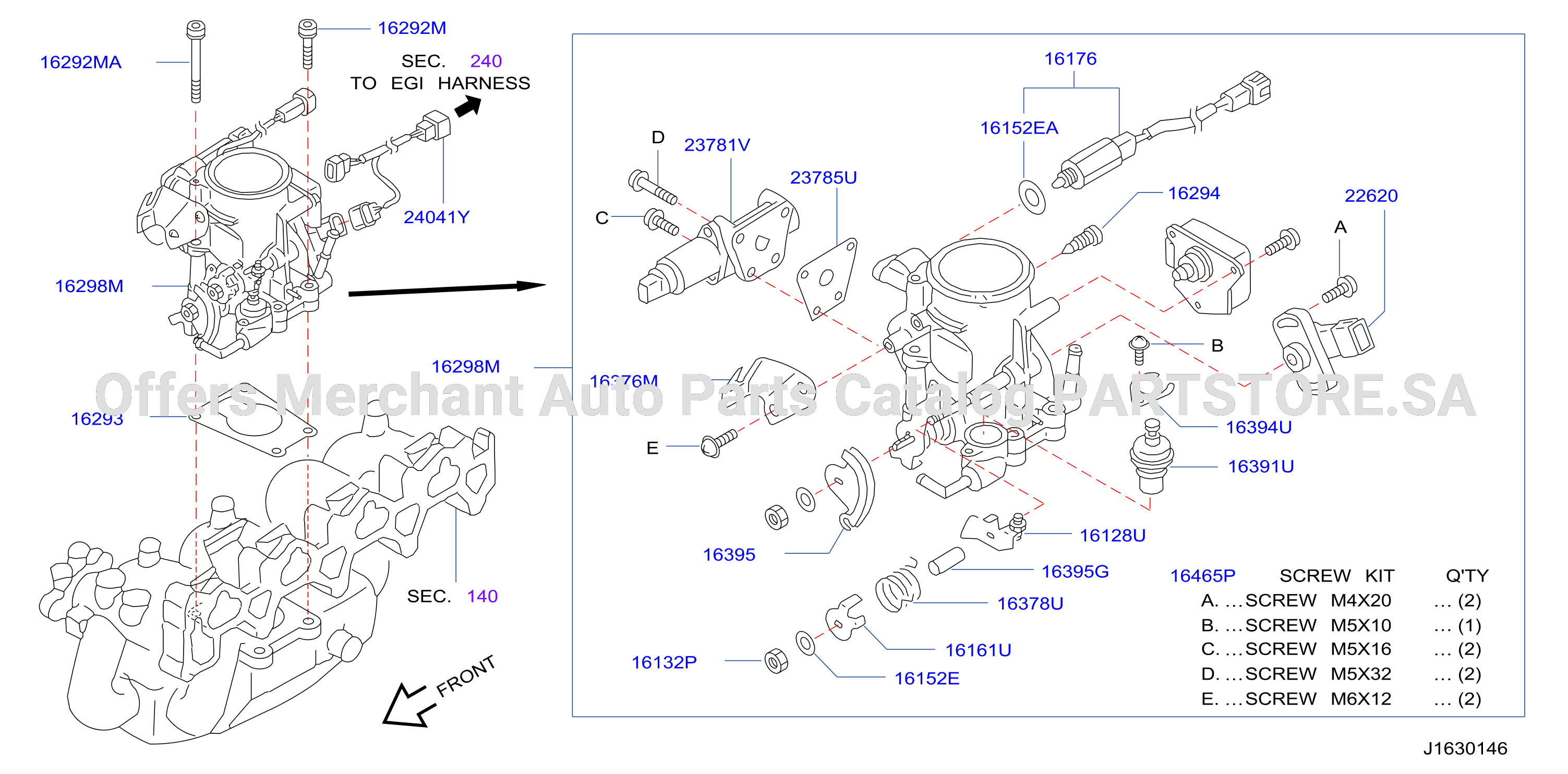

Parts in this diagram 22
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 1611686G00 | 16395G | RETAINER - SPRING | |||
| 16119VJ207 | 16298M | CHAMBER ASSY - THROTTLE | |||
| 1612273C0A | 16292MA | BOLT - CHAMBER | |||
| 1612295L0A | 16292M | BOLT - CHAMBER | |||
| 1612873C00 | 16128U | CAM - FAST IDLE | |||
| 1613273C00 | 16132P | NUT | |||
| 16134VJ201 | 16395 | LEVER - THROTTLE | |||
| 1614473C01 | 16294 | SCREW - IDLE ADJUST | |||
| 1615273C00 | 16152E | WASHER | |||
| 1615274C10 | 16152EA | WASHER |
of
3
