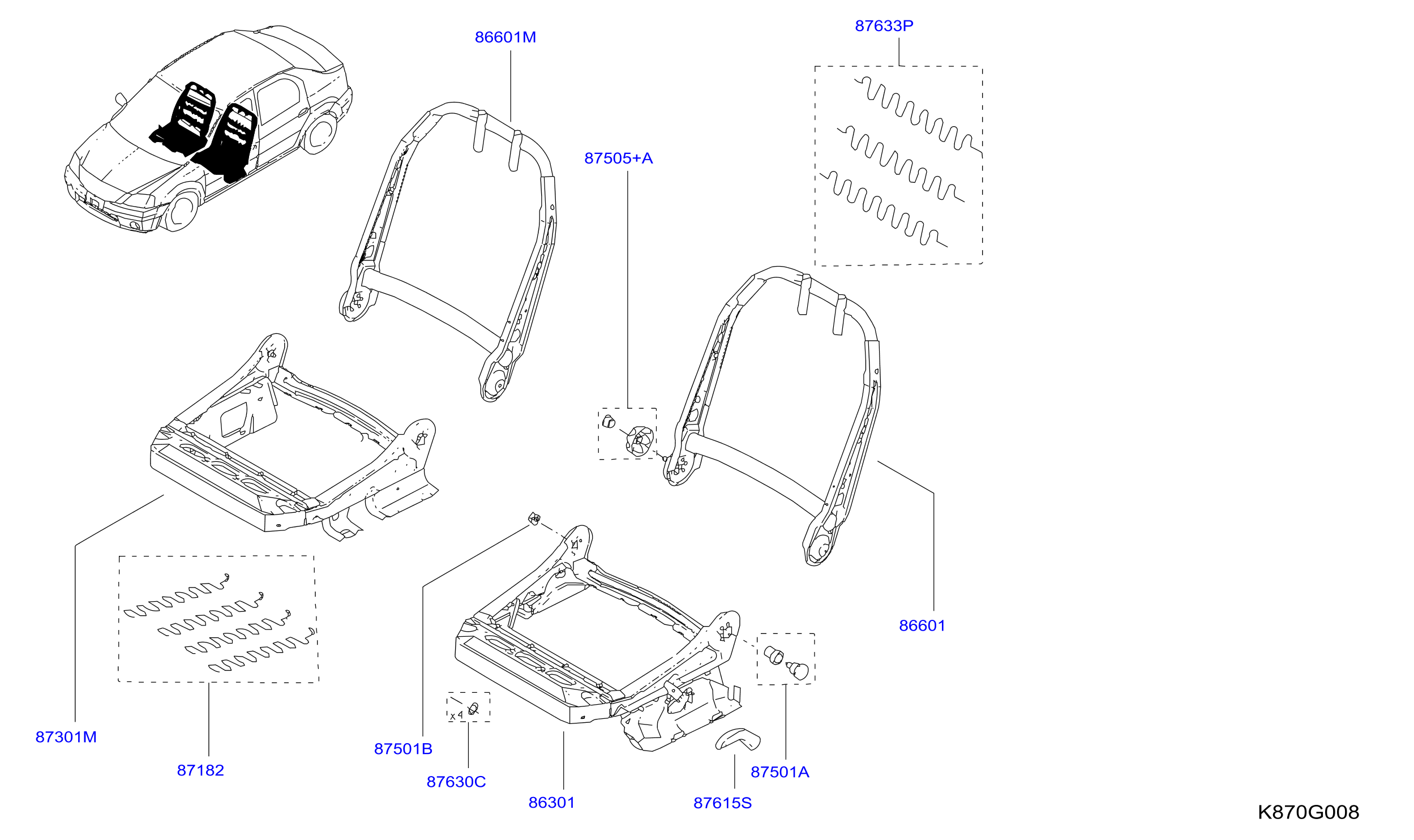

Front Seat Seat Frame
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 870-G001 | Front Seat Seat Frame |
BODY: L90
|
No illustration for this section
The full parts list is available below
Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0112100Q6H | 87501A | BOLT | |||
| 8630100Q0E | 86301 | FRAME ASSY - FRONT SEAT CUSHION | |||
| 8630100Q0F | 86301 | FRAME ASSY - FRONT SEAT CUSHION | |||
| 8660100Q0A | 86601 | FRAME ASSY - FRONT SEAT BACK | |||
| 8660100Q0B | 86601M | FRAME ASSY - FRONT SEAT BACK, RH | |||
| 8718200Q0A | 87182 | SPRING | |||
| 8730100Q0A | 87301M | FRAME ASSY - CUSHION, FRONT SEAT | |||
| 8750500Q0B | 87505+A | COVER - SEAT SLIDE | |||
| 8750500Q0C | 87501B | NUT | |||
| 8763700Q0A | 87633P | SPRING |
