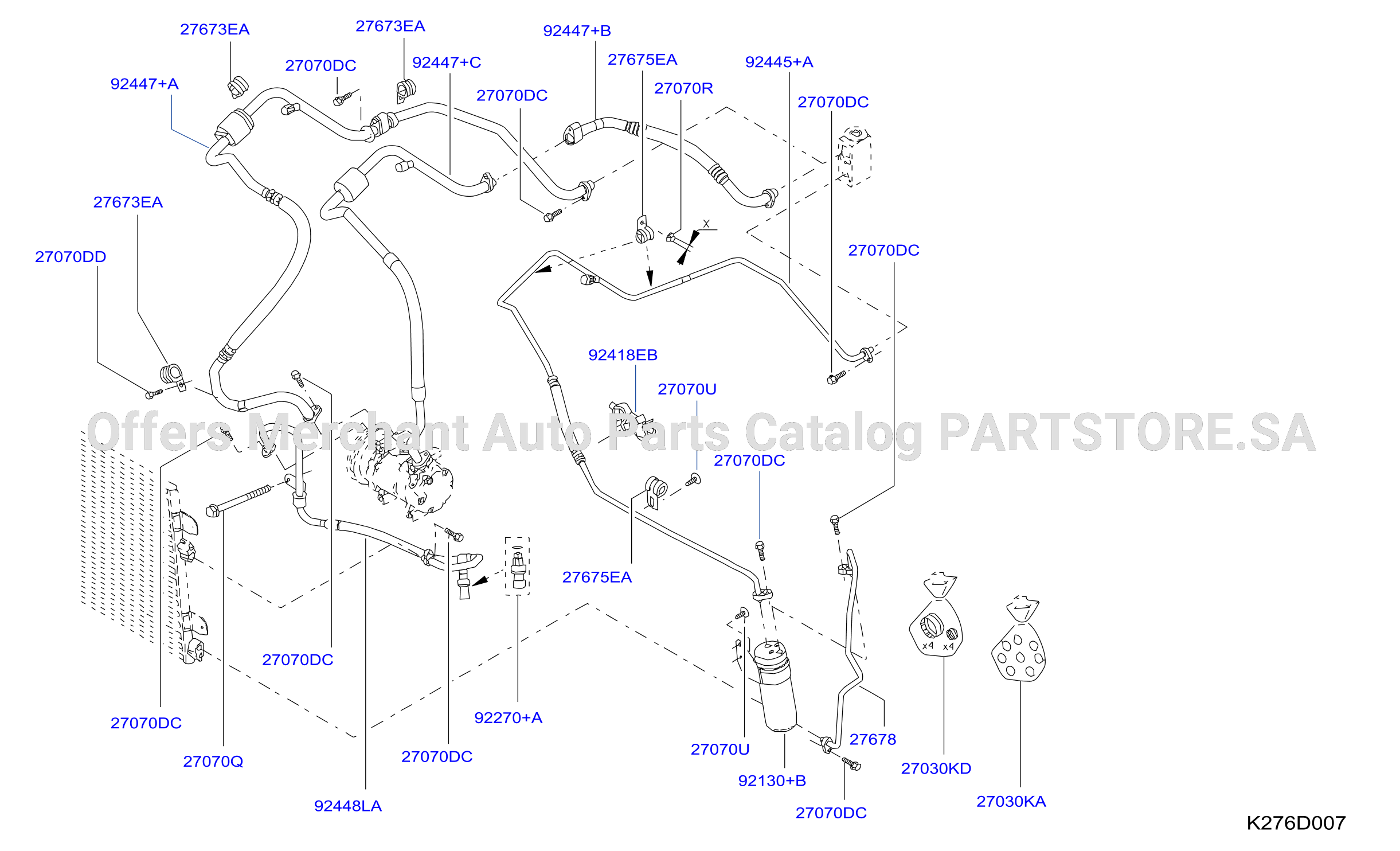

Condenser Liquid Tank Piping Cooler Pipe
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276-D001 | Condenser Liquid Tank Piping Cooler Pipe |
BODY: L90
ENGINE: AT
|
Parts in this diagram 21
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0112500Q3C | 27070U | SCREW | |||
| 0122100Q0B | 27070R | NUT | |||
| 0142500Q0D | 27070DD | SCREW | |||
| 0146100Q0G | 27070DC | SCREW | |||
| 2318800QAB | 27070Q | BOLT | |||
| 2703000Q0A | 92418EB | CLAMP | |||
| 2769100Q0A | 27675EA | CLAMP - TUBE | |||
| 2778000Q0A | 27678 | TUBE - CONDENSER TO LIQUID TANK | |||
| 2891300QAC | 92270+A | VALVE ASSY - SAFETY | |||
| 4624500QAA | 27673EA | CLAMP - TUBE |
of
3
