| Code | Name | Period | Specifications |
|---|---|---|---|

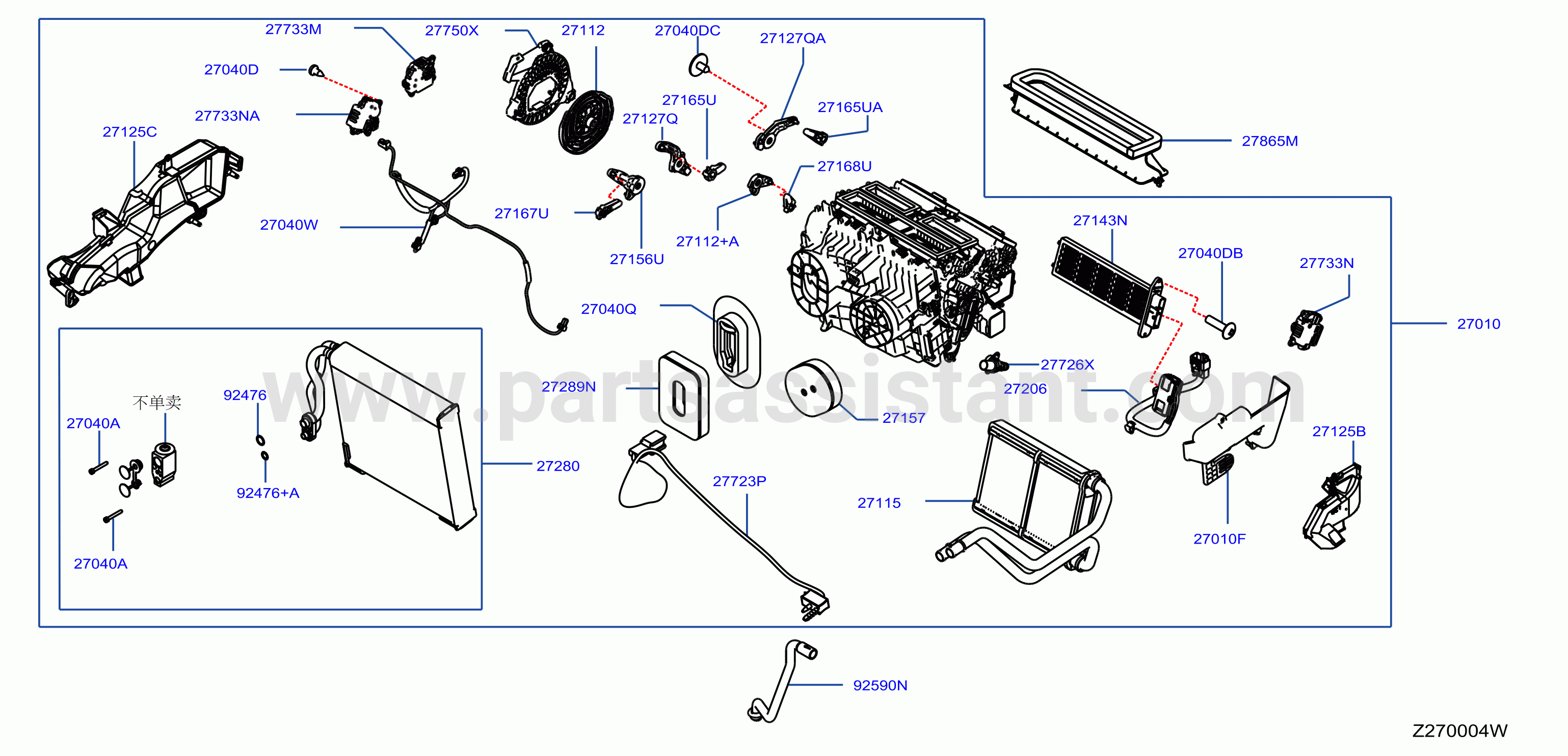

| 270A-001-01 | Heater Blower Unit Heater Fr | 2018 - 2020 |
BODY: SED
ENGINE: MR20
GRADE: XL
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 240405NN1B | 27040W | HARNESS - SUB, HEATER UNIT | ||
| 240406CT0B | 27040W | HARNESS - SUB, HEATER UNIT | ||
| 271102JJ0A | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271102JJ2A | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271106CT0A | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271106CT1A | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271106CT2A | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271106CT2B | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271112Y000 | 27040D | SCREW | ||
| 271112Y00A | 27040D | SCREW | ||
| 271256CT0A | 27125B | DISTRIBUTOR ASSY - FOOT | ||
| 271266CT0A | 27125C | DUCT - FOOT | ||
| 271406CT1A | 27115 | CORE ASSY - FRONT HEATER | ||
| 271406CT3A | 27115 | CORE ASSY - FRONT HEATER | ||
| 271431KB0A | 27143N | HEATER ASSY - PTC | ||
| 271434EA4C | 27143N | HEATER ASSY - PTC | ||
| 271439HE0C | 27143N | HEATER ASSY - PTC | ||
| 271439HE1C | 27143N | HEATER ASSY - PTC | ||
| 271535NN0A | 27127Q | LINK - AIR DOOR, NO 4 | ||
| 271535NN1A | 27127QA | LINK - AIR DOOR, NO 4 | ||
| 271555NN0A | 27112 | LINK ASSY - SIDE | ||
| 271565NN0A | 27156U | LEVER - AIR MIX DOOR | ||
| 271595NN0A | 27112+A | LINK ASSY - SIDE | ||
| 271655NN0A | 27165U | LEVER - VENTILATOR | ||
| 271655NN1A | 27165UA | LEVER - VENTILATOR | ||
| 271675NN0A | 27167U | LEVER - DEFROSTER | ||
| 271685NN0A | 27168U | LEVER - FOOT | ||
| 271746CT0A | 27157 | PACKING | ||
| 271756CT0A | 27010F | BRACKET - FRONT HEATER UNIT | ||
| 271992J000 | 27040DC | SCREW | ||
| 271994GA0A | 27040DB | SCREW | ||
| 272066CT0A | 27206 | HARNESS ASSY - SUB | ||
| 272066CT1A | 27206 | HARNESS ASSY - SUB | ||
| 272294M40A | 27040A | BOLT | ||
| 272805NN0A | 27280 | EVAPORATOR ASSY - FRONT | ||
| 272806CT0A | 27280 | EVAPORATOR ASSY - FRONT | ||
| 272896CT0A | 27289N | GROMMET | ||
| 277233SB0A | 27723P | SENSOR ASSY - INTAKE | ||
| 277233SB0B | 27723P | SENSOR ASSY - INTAKE | ||
| 277233SB0C | 27723P | SENSOR ASSY - INTAKE | ||
| 277265NN0A | 27726X | ASPIRATOR | ||
| 277315NA0A | 27733M | ACTUATOR ASSY - MODE | ||
| 27731L076A | 27733M | ACTUATOR ASSY - MODE | ||
| 277325NA0A | 27733N | ACTUATOR ASSY - AIR MIX | ||
| 277325NA1A | 27733NA | ACTUATOR ASSY - AIR MIX | ||
| 277325NA6A | 27733N | ACTUATOR ASSY - AIR MIX | ||
| 277325NA7A | 27733NA | ACTUATOR ASSY - AIR MIX | ||
| 277505NN0A | 27750X | BRACKET - ACTUATOR | ||
| 278652JJ0A | 27865M | ADAPTER - CENTER VENTILATOR & DEFROSTER | ||
| 278656CT0A | 27865M | ADAPTER - CENTER VENTILATOR & DEFROSTER | ||
| 924752FT0A | 92476+A | SEAL - O RING | ||
| 924752FT0B | 92476 | SEAL - O RING | ||
| 925606CT0A | 27040Q | GROMMET | ||
| 925906CT0A | 92590N | HOSE - DRAIN |
