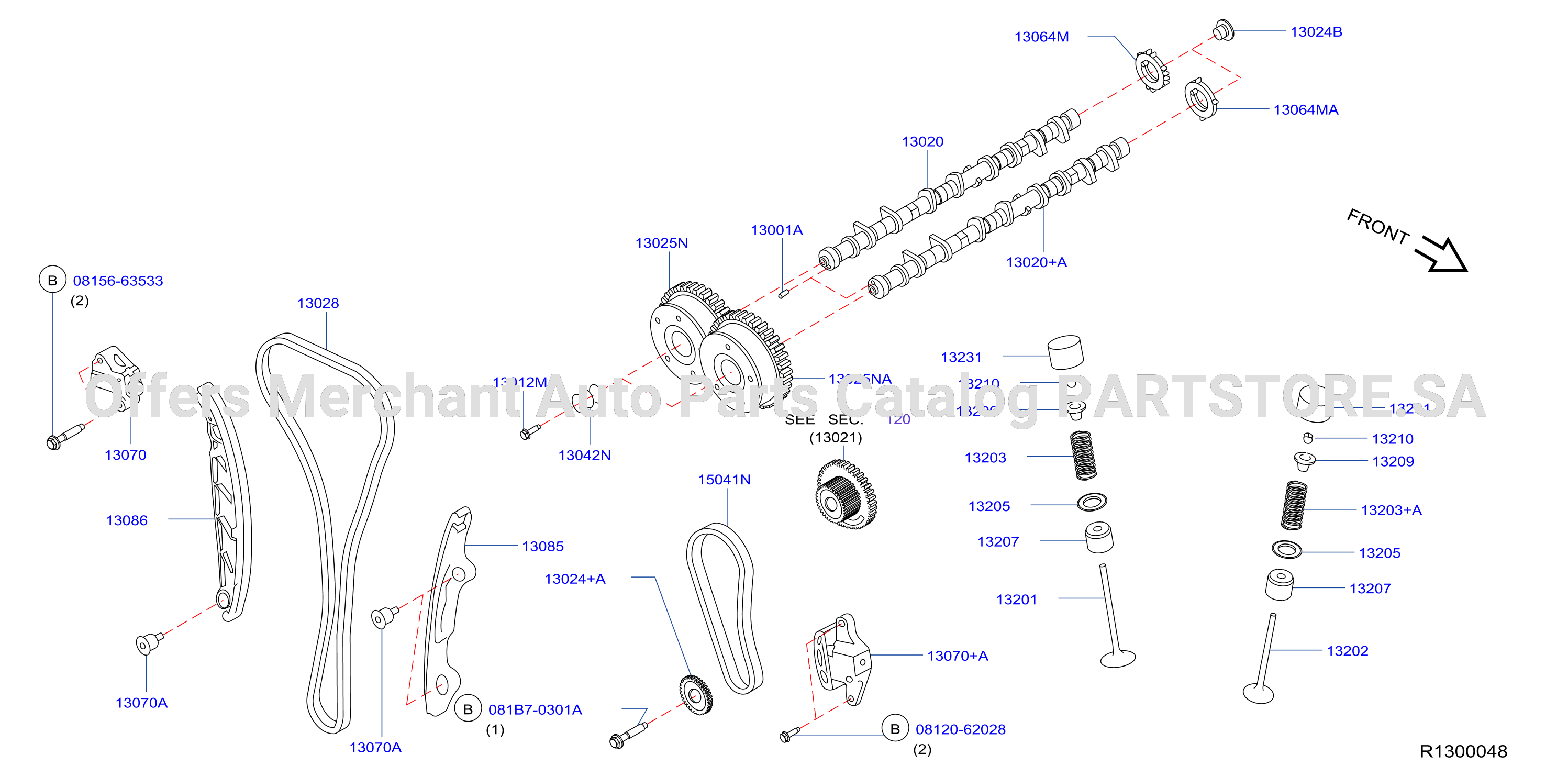

Camshaft Valve Mechanism Camshaft Valve Mechanism
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 130A-002-04 | Camshaft Valve Mechanism Camshaft Valve Mechanism | 2017 - 2017 |
ENGINE: QR25DE
TRANSMISSION: CVT/QR25
|
No illustration for this section
The full parts list is available below
Parts in this diagram 145
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0812062028 | 0812062028 | BOLT - HEX | |||
| 0815663533 | 0815663533 | BOLT - HEX | |||
| 081B70301A | 081B70301A | BOLT - FLANGE | |||
| 130046N200 | 13001A | PIN - DOWEL | |||
| 13012EN20A | 13024B | BOLT - SPROCKET, CAMSHAFT | |||
| 13012JA00A | 13012M | BOLT - VTC PULLEY | |||
| 13012JG30A | 13012M | BOLT - VTC PULLEY | |||
| 130203TA1A | 13020 | CAMSHAFT ASSY | |||
| 130203TA1C | 13020+A | CAMSHAFT ASSY | |||
| 13020JA11A | 13020 | CAMSHAFT ASSY |
of
15
