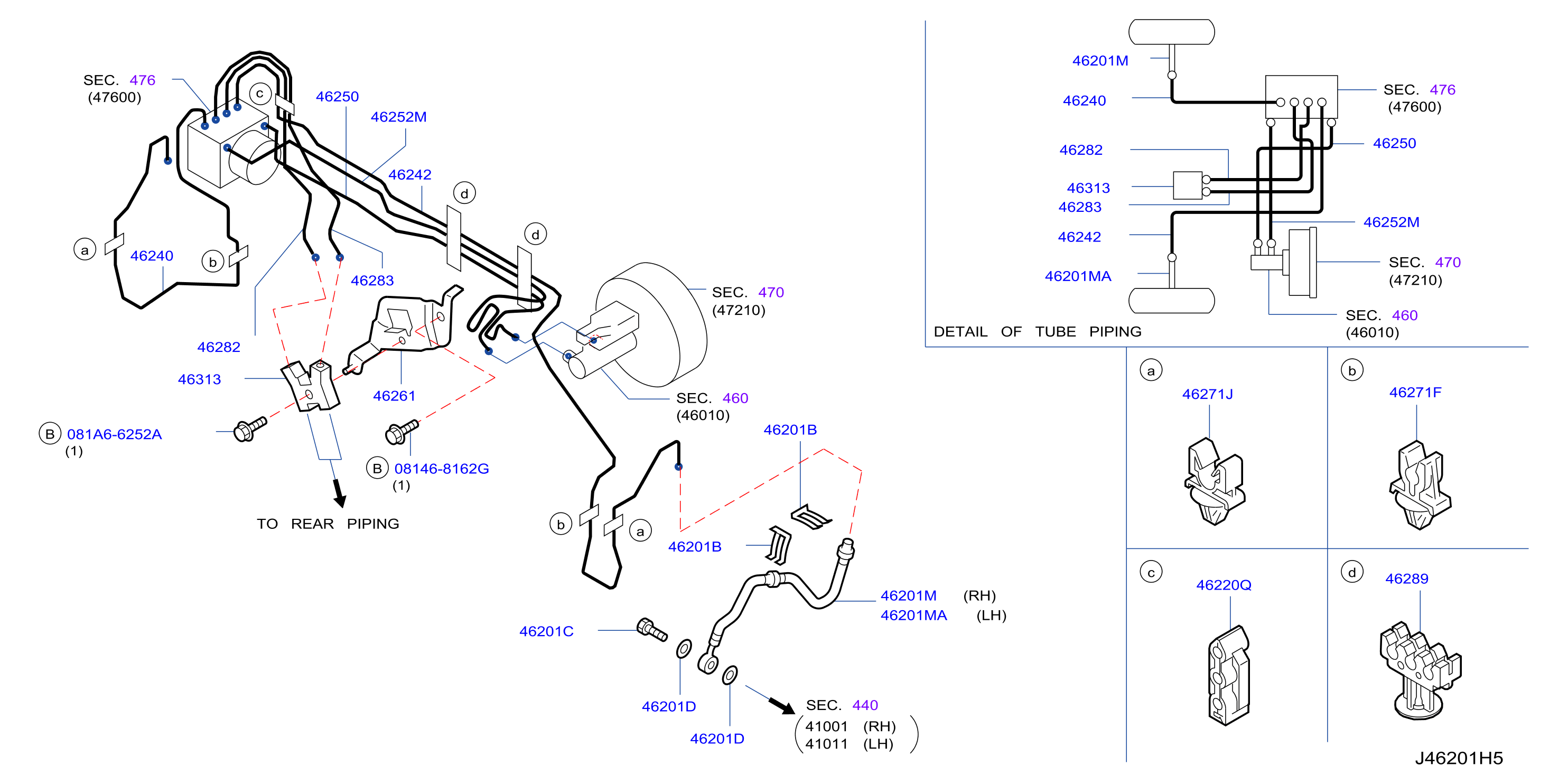

Brake Piping Control Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-001-01 | Brake Piping Control Front Piping | 2007 - ... |
BODY: 2ROW
GRADE: HI
|
No illustration for this section
The full parts list is available below
Parts in this diagram 18
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0156100241 | 46220Q | CLAMP | |||
| 081468162G | 081468162G | BOLT - HEX | |||
| 081A66252A | 081A66252A | BOLT - FLANGE, HEX | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 46210AX001 | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210AX006 | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | |||
| 46242EF800 | 46240 | TUBE ASSY - BRAKE, FRONT RH | |||
| 46250EF800 | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | |||
| 46252EF800 | 46252M | TUBE ASSY - BRAKE, MASTER CYLINDER TO REAR |
