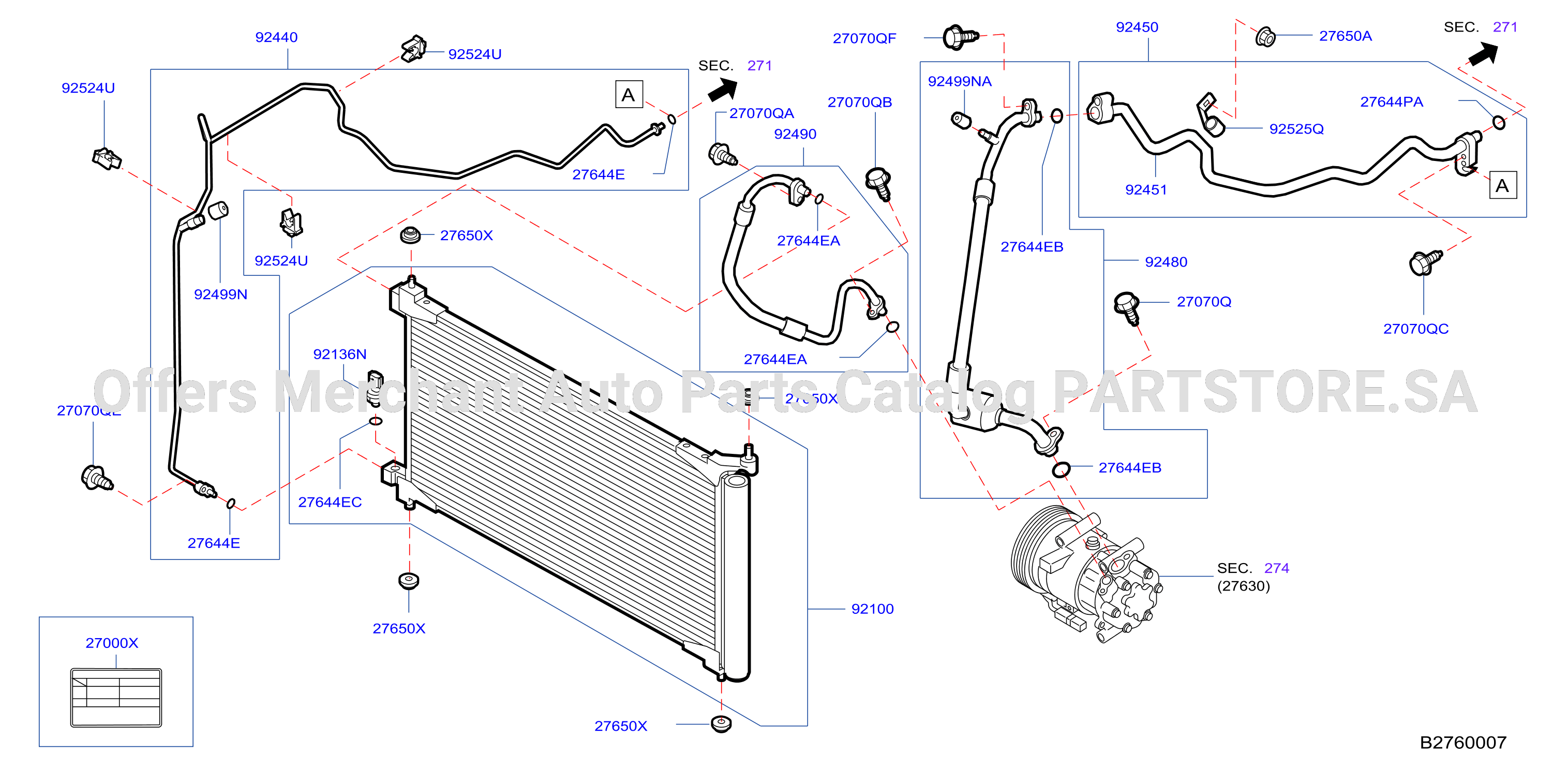

Condenser Liquid Tank Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276B-001-01 | Condenser Liquid Tank Piping | 2009 - ... |
BODY: W
ENGINE: K4M
|
No illustration for this section
The full parts list is available below
Parts in this diagram 23
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6021 | 27070Q | BOLT | |||
| 01125N6031 | 27070QC | BOLT | |||
| 01125N6041 | 27070QE | BOLT | |||
| 01125N8051 | 27070QA | BOLT | |||
| 01225N6011 | 27650A | NUT | |||
| 27090EE90A | 27000X | LABEL - CAUTION, AIR CONDITIONER | |||
| 4627150L10 | 92524U | CLIP | |||
| 92100AZ60A | 92100 | CONDENSER & LIQUID TANK ASSY | |||
| 921184M400 | 27650X | MOUNTING - RUBBER, CONDENSER UPPER | |||
| 92136AZ60A | 92136N | SENSOR ASSY - PRESSURE |
of
3
