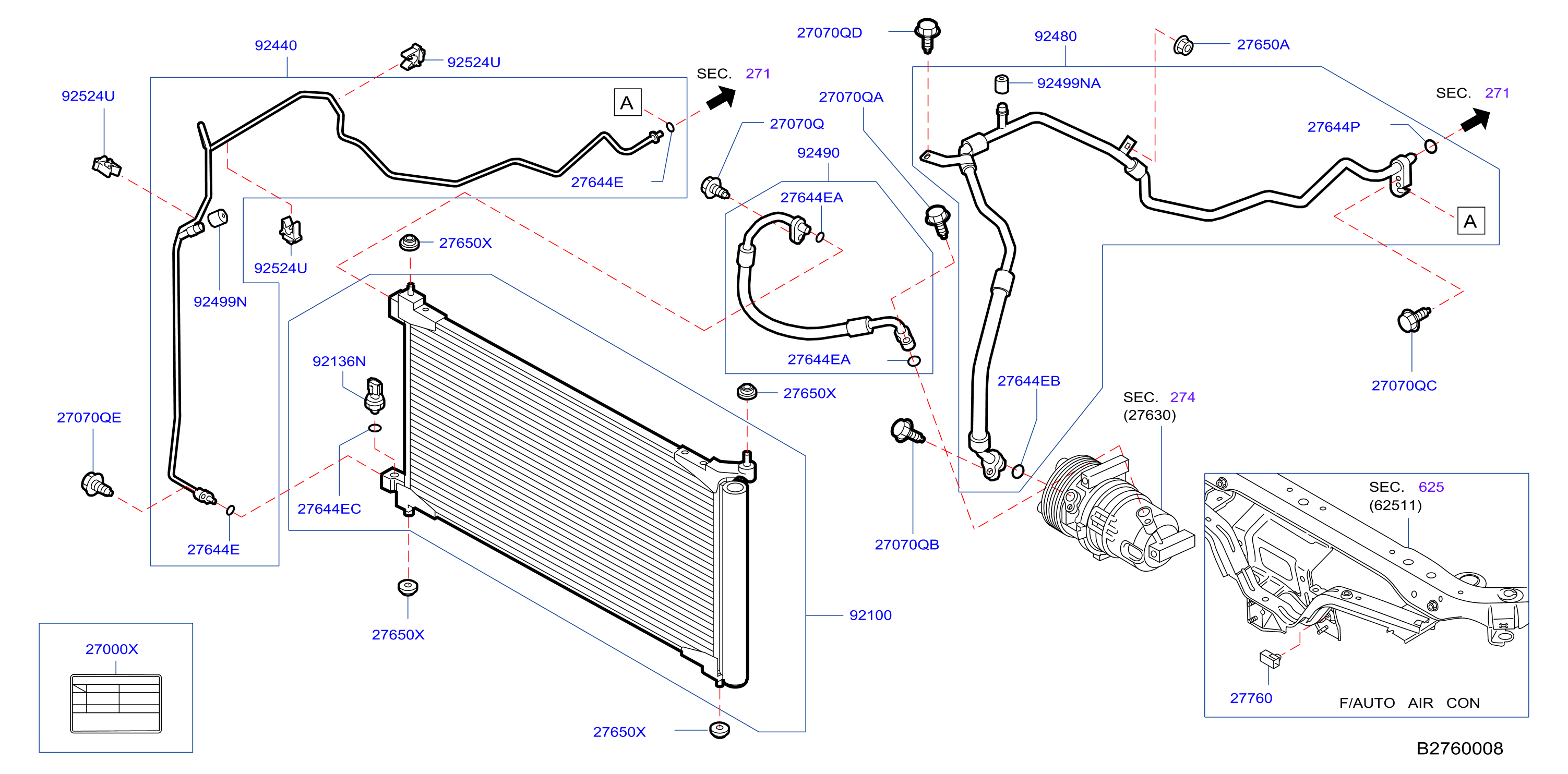

Parts in this diagram 25
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6011 | 27070QD | BOLT | |||
| 01125N6031 | 27070QC | BOLT | |||
| 01125N6041 | 27070QE | BOLT | |||
| 01125N8051 | 27070Q | BOLT | |||
| 01225N6011 | 27650A | NUT | |||
| 27090AX000 | 27000X | LABEL - CAUTION, AIR CONDITIONER | |||
| 4627150L10 | 92524U | CLIP | |||
| 46271EW80A | 92524U | CLIP | |||
| 92100AZ60A | 92100 | CONDENSER & LIQUID TANK ASSY | |||
| 921184M400 | 27650X | MOUNTING - RUBBER, CONDENSER UPPER | |||
| 92136AZ60A | 92136N | SENSOR ASSY - PRESSURE | |||
| 92440AZ60A | 92440 | PIPE ASSY - FRONT COOLER, HIGH | |||
| 92440EW900 | 92440 | PIPE ASSY - FRONT COOLER, HIGH | |||
| 92471AZ60A | 27644EC | SEAL - O RING | |||
| 92471N8210 | 27644E | SEAL - O RING | |||
| 92472N8210 | 27644EA | SEAL - O RING | |||
| 92473N8210 | 27644P | SEAL - O RING | |||
| 92474N8210 | 27644EB | SEAL - O RING | |||
| 92480AZ70A | 92480 | HOSE - FLEXIBLE, LOW | |||
| 92480CJ70A | 92480 | HOSE - FLEXIBLE, LOW | |||
| 92490AZ70A | 92490 | HOSE - FLEXIBLE, HIGH | |||
| 92490ED500 | 92490 | HOSE - FLEXIBLE, HIGH | |||
| 9249989920 | 92499N | CAP - CHARGE VALVE | |||
| 9249989921 | 92499N | CAP - CHARGE VALVE | |||
| 92499AZ61A | 92499NA | CAP - CHARGE VALVE |
