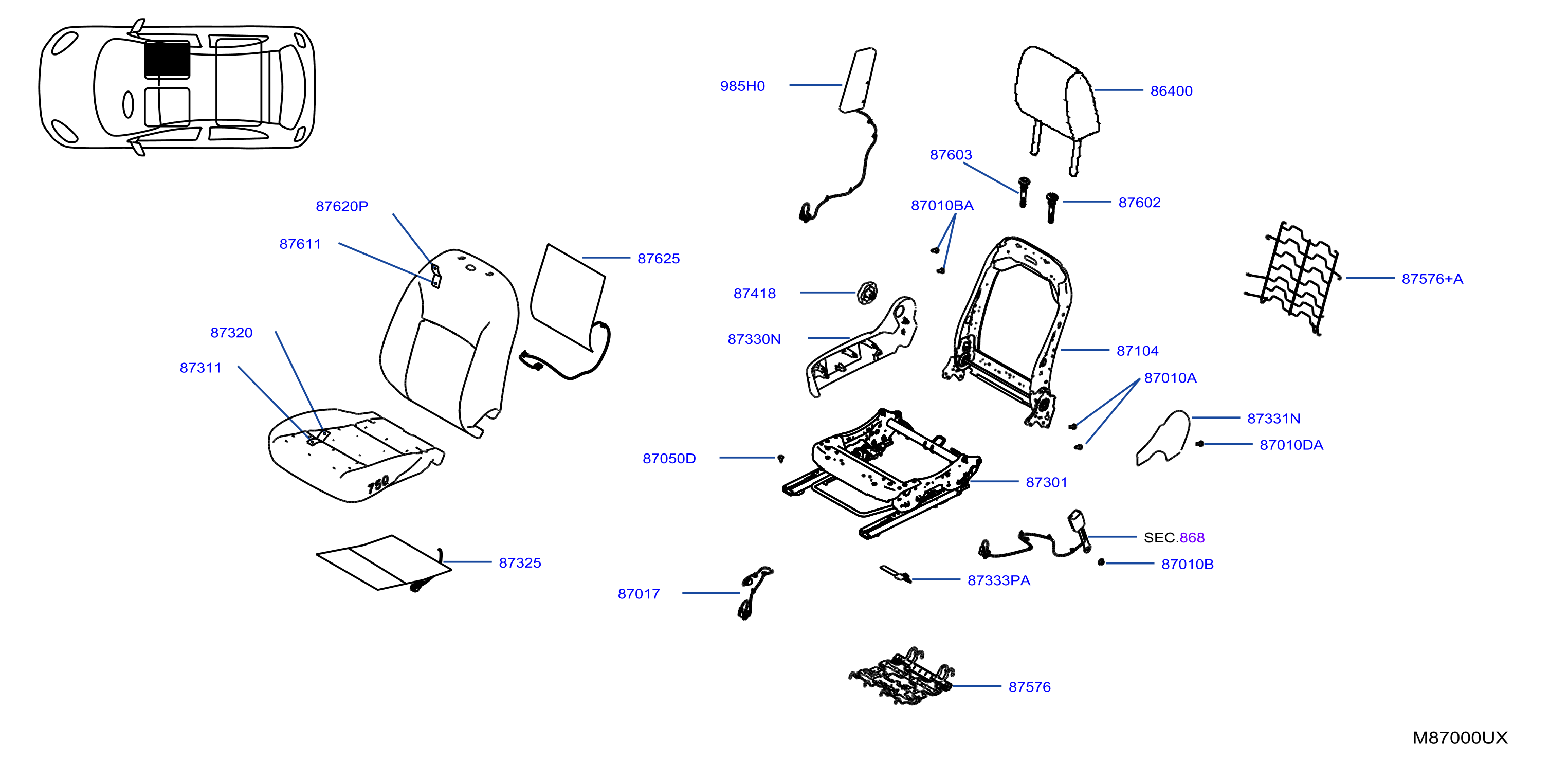

Front Seat Rh Seat
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 870A-003-01 | Front Seat Rh Seat | 2020 - ... |
BODY: 5HB
|
No illustration for this section
The full parts list is available below
Parts in this diagram 21
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0145100Q1K | 87050D | SCREW | |||
| 864005FB0A | 86400 | HEADREST ASSY - FRONT SEAT | |||
| 864005FC0C | 86400 | HEADREST ASSY - FRONT SEAT | |||
| 870195FA0A | 87017 | HARNESS - SUB, FRONT SEAT | |||
| 871015FA0A | 87301 | FRAME ASSY - CUSHION, FRONT SEAT RH | |||
| 871015FA1A | 87301 | FRAME ASSY - CUSHION, FRONT SEAT RH | |||
| 871045FE0A | 87104 | FRAME ASSY - BACK, FRONT SEAT RH | |||
| 873115FA0A | 87311 | PAD ASSY - CUSHION, FRONT SEAT RH | |||
| 873205FC0C | 87320 | TRIM ASSY - CUSHION, FRONT SEAT RH | |||
| 873305FA1A | 87330N | FINISHER - CUSHION, FRONT SEAT OUTER RH |
of
3
