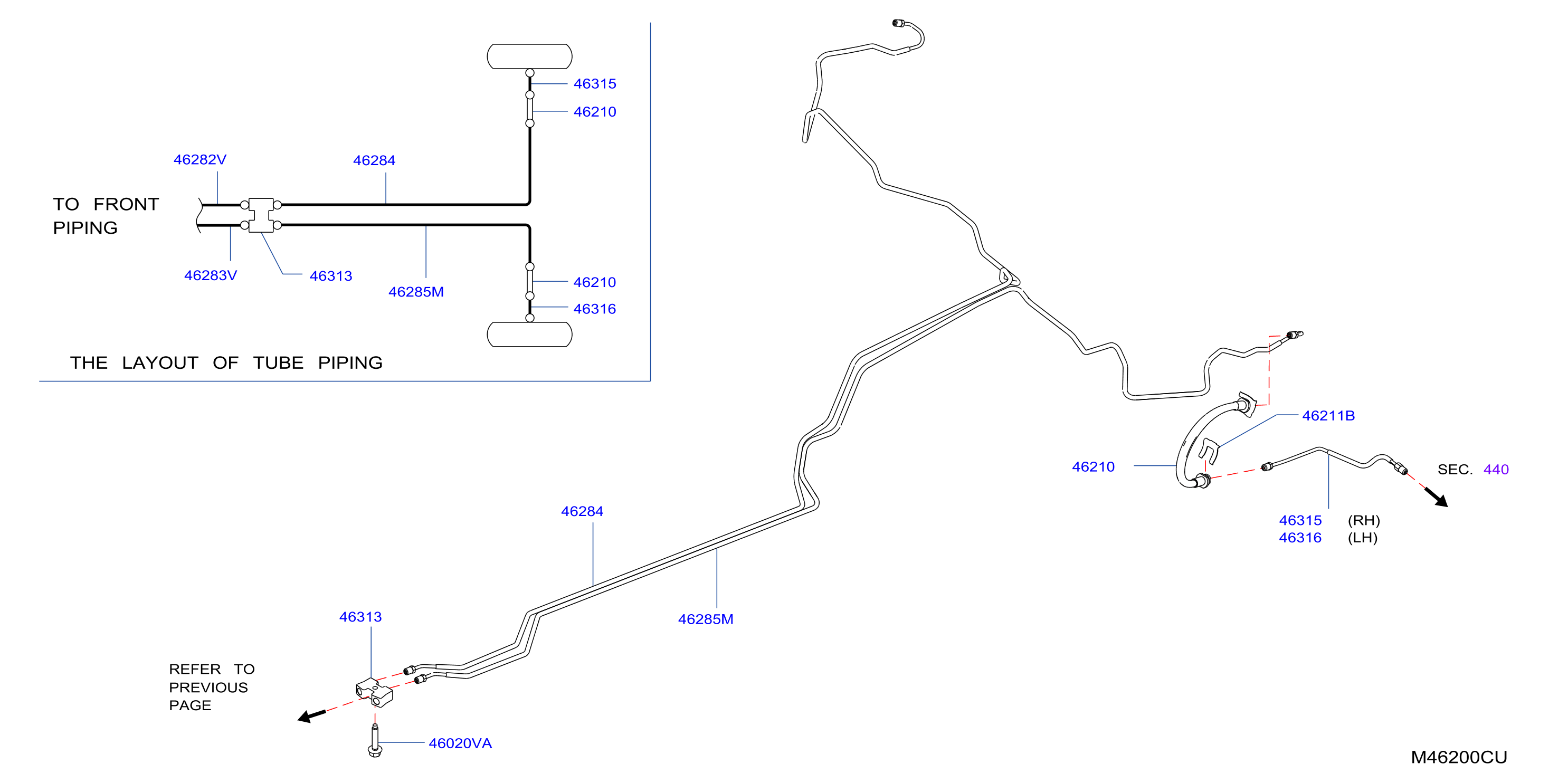

Brake Piping Control Rear
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462E-002-01 | Brake Piping Control Rear | 2019 - 2020 |
BODY: 5HB
ENGINE: HR10DDT
|
No illustration for this section
The full parts list is available below
Parts in this diagram 14
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 462062J00A | 46211B | SPRING - LOCK, BRAKE HOSE | |||
| 462105FA5A | 46210 | HOSE ASSY - BRAKE, REAR | |||
| 462825FM5A | 46282V | TUBE ASSY - BRAKE, CONNECTOR TO REAR | |||
| 462825FM6A | 46282V | TUBE ASSY - BRAKE, CONNECTOR TO REAR | |||
| 462825FN5A | 46282V | TUBE ASSY - BRAKE, CONNECTOR TO REAR | |||
| 462835FM5A | 46283V | TUBE ASSY - BRAKE, CONNECTOR TO REAR | |||
| 462835FM6A | 46283V | TUBE ASSY - BRAKE, CONNECTOR TO REAR | |||
| 462835FN5A | 46283V | TUBE ASSY - BRAKE, CONNECTOR TO REAR | |||
| 462845FA1A | 46284 | TUBE ASSY - BRAKE, REAR | |||
| 462855FA1A | 46285M | TUBE ASSY - BRAKE, REAR |
