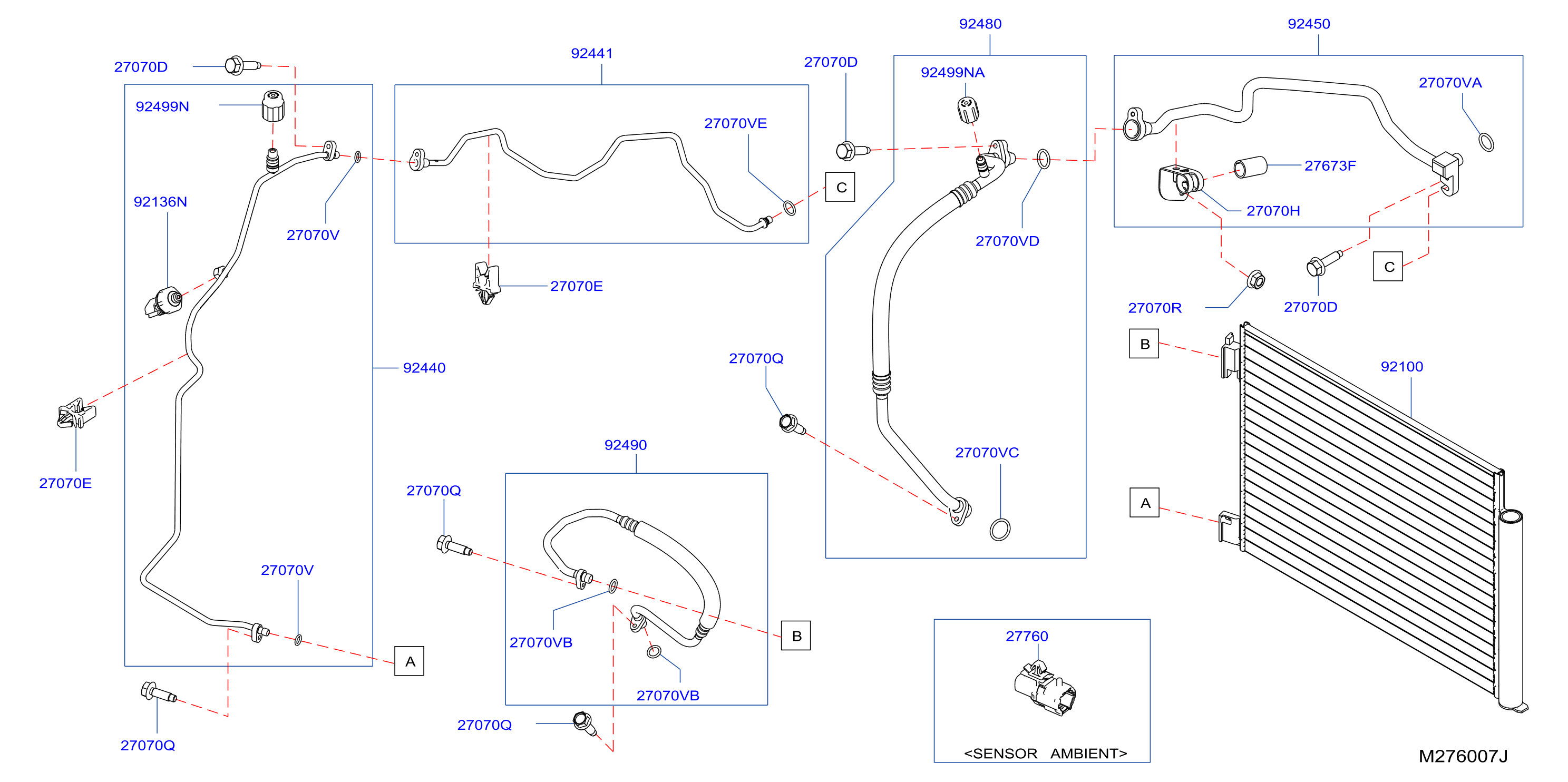

Condenser Liquid Tank Piping Hr10Det
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276D-001-01 | Condenser Liquid Tank Piping Hr10Det | 2018 - 2020 |
BODY: 5HB
ENGINE: HR10DET
|
No illustration for this section
The full parts list is available below
Parts in this diagram 25
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6021 | 27070QA | BOLT | |||
| 0122100Q2A | 27070Q | BOLT | |||
| 277223VA0A | 27760 | SENSOR ASSY - AMBIENT | |||
| 46271EW00A | 27070E | CLIP | |||
| 9052000Q0A | 27070R | NUT | |||
| 921005FA0A | 92100 | CONDENSER & LIQUID TANK ASSY | |||
| 921361FA0A | 92136N | SENSOR ASSY - PRESSURE | |||
| 924405FN0A | 92440 | PIPE ASSY - FRONT COOLER, HIGH | |||
| 924405FN0B | 92440 | PIPE ASSY - FRONT COOLER, HIGH | |||
| 924415FN0B | 92441 | PIPE - FRONT COOLER, HIGH A |
of
3
