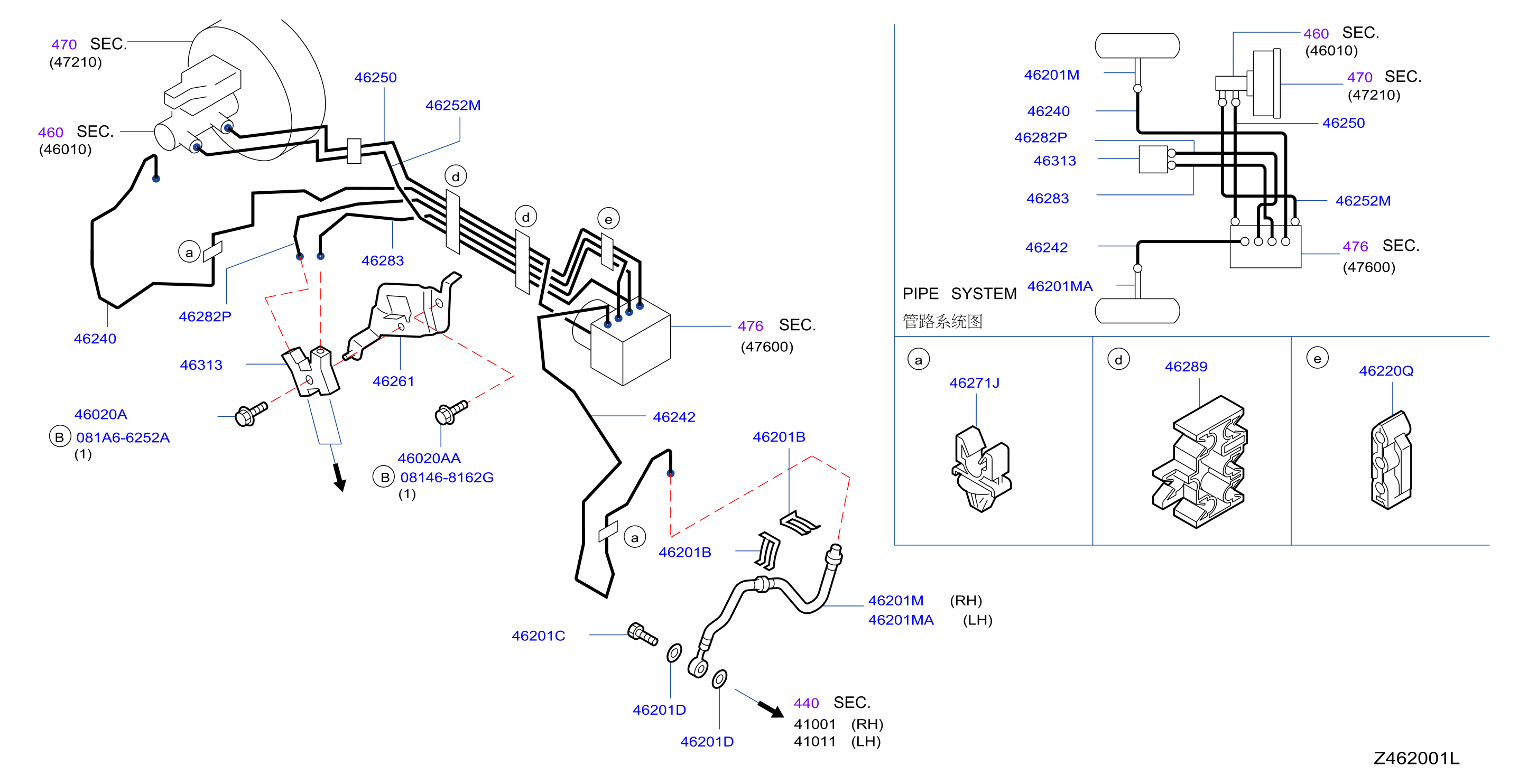

Brake Piping Control Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-003-01 | Brake Piping Control Piping | 2014 - ... |
BODY: HB
|
No illustration for this section
The full parts list is available below
Parts in this diagram 28
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6041 | 46020A | BOLT | |||
| 01125N8171 | 46020AA | BOLT | |||
| 081468162G | 081468162G | BOLT - HEX | |||
| 081A66252A | 081A66252A | BOLT - FLANGE, HEX | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462063DA0A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462101HM0A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462111HM0A | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | |||
| 462401HM1A | 46240 | TUBE ASSY - BRAKE, FRONT RH |
of
3
