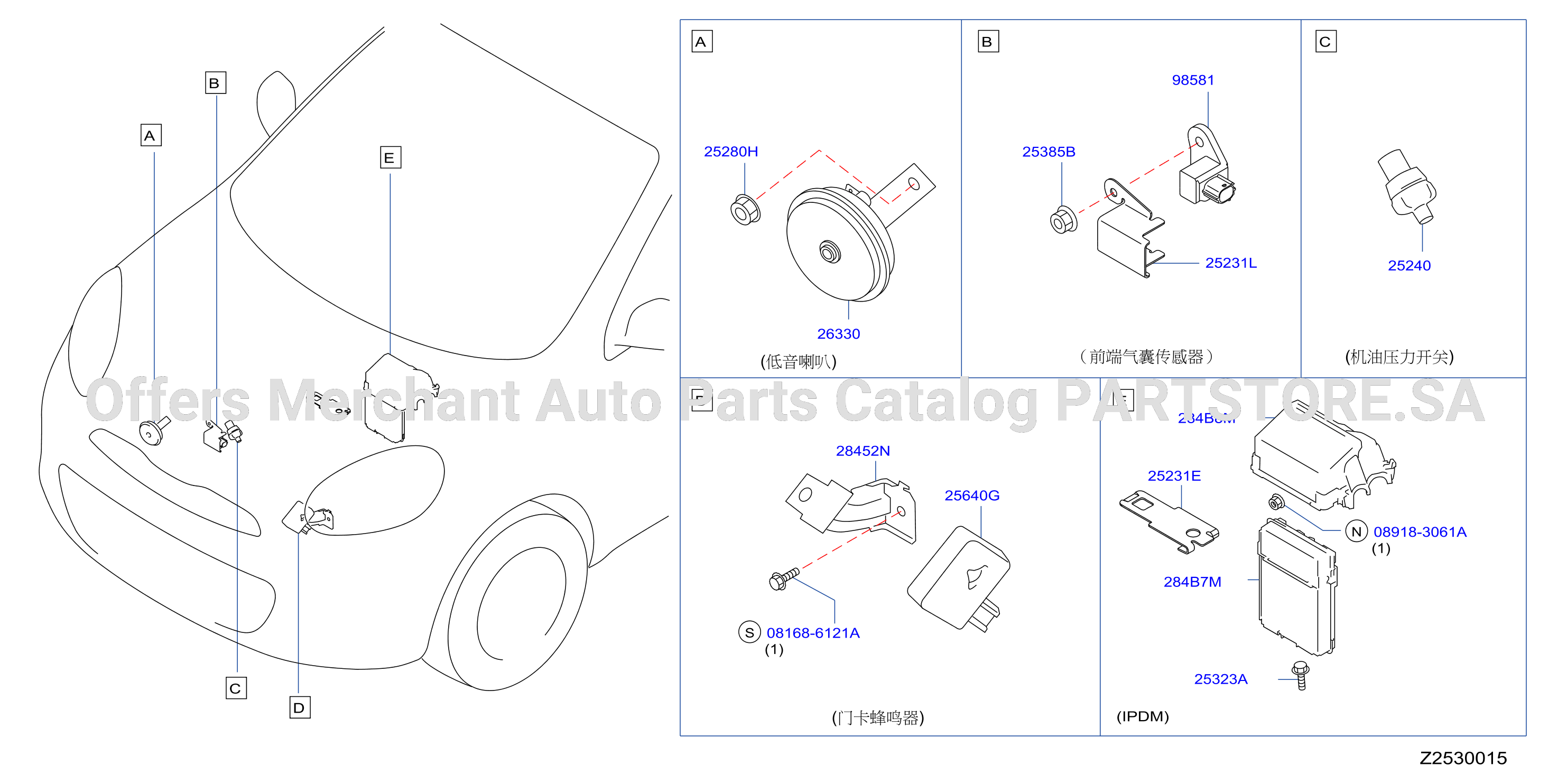

Electrical Unit Engine Room
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 253A-002-01 | Electrical Unit Engine Room | 2010 - 2014 |
BODY: HB
|
No illustration for this section
The full parts list is available below
Parts in this diagram 12
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01121N6031 | 25323A | BOLT | |||
| 01221N8011 | 25280H | NUT | |||
| 0122500881 | 25385B | NUT | |||
| 081686121A | 081686121A | SCREW | |||
| 089183061A | 089183061A | NUT - FLANGE, HEX | |||
| 252381HM0A | 25231E | BRACKET | |||
| 252402DT0A | 25240 | ENGINE OIL PRESSURE SWITCH | |||
| 256201HA0B | 26330 | HORN ASSY - ELECTRIC LOW | |||
| 284B81HM0A | 284B8M | COVER - IPDM | |||
| 985Q2EN000 | 25231L | BRACKET |
