| Code | Name | Period | Specifications |
|---|---|---|---|

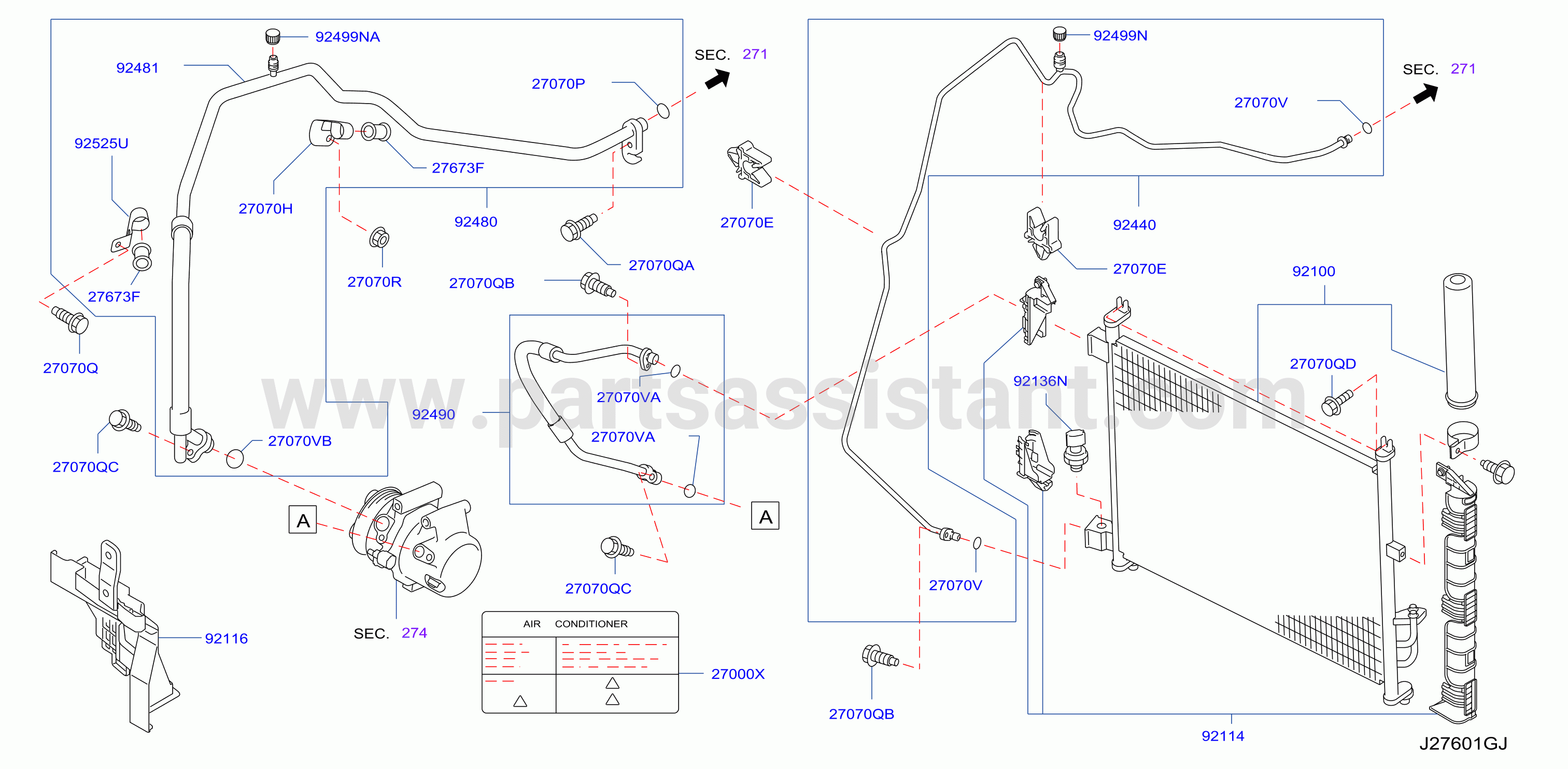

| 276B-001-01 | Condenser Liquid Tank Piping For Mt | 2010 - 2014 |
BODY: 5HB
ENGINE: HR12DE
GRADE: MID
TRANSMISSION: 5MT
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01125N6061 | 27070Q | BOLT | ||
| 01125N6071 | 27070QA | BOLT | ||
| 01125N6121 | 27070QA | BOLT | ||
| 01125N8141 | 27070QC | BOLT | ||
| 216941HC1B | 27070QD | BOLT | ||
| 270901HC1A | 27000X | LABEL - CAUTION, AIR CONDITIONER | ||
| 270901HC1D | 27000X | LABEL - CAUTION, AIR CONDITIONER | ||
| 46271EW00A | 27070E | CLIP | ||
| 7703033205 | 27070R | NUT | ||
| 9052000Q0A | 27070R | NUT | ||
| 921011HC1B | 92100 | CONDENSER & LIQUID TANK ASSY | ||
| 921141HC1A | 92114 | BRACKET - CONDENSER | ||
| 921361HC1A | 92136N | SENSOR ASSY - PRESSURE | ||
| 921841HC1A | 92116 | AIR GUIDE - CONDENSER | ||
| 924401HD0A | 92440 | PIPE ASSY - FRONT COOLER, HIGH | ||
| 92471N8210 | 27070V | SEAL - O RING | ||
| 92472N8210 | 27070VA | SEAL - O RING | ||
| 92473N8210 | 27070P | SEAL - O RING | ||
| 92474N8210 | 27070VB | SEAL - O RING | ||
| 924801HD0A | 92480 | HOSE - FLEXIBLE, LOW | ||
| 924811HD0A | 92481 | HOSE - FLEXIBLE, LOW | ||
| 924901HD0A | 92490 | HOSE - FLEXIBLE, HIGH | ||
| 924991HD0A | 92499N | CAP - CHARGE VALVE | ||
| 924991HD1A | 92499NA | CAP - CHARGE VALVE | ||
| 925531HD0A | 27070H | CLAMP | ||
| 925541HD0A | 92525U | CLIP | ||
| 925571HD0A | 27673F | PROTECTOR - CLAMP TUBE |
