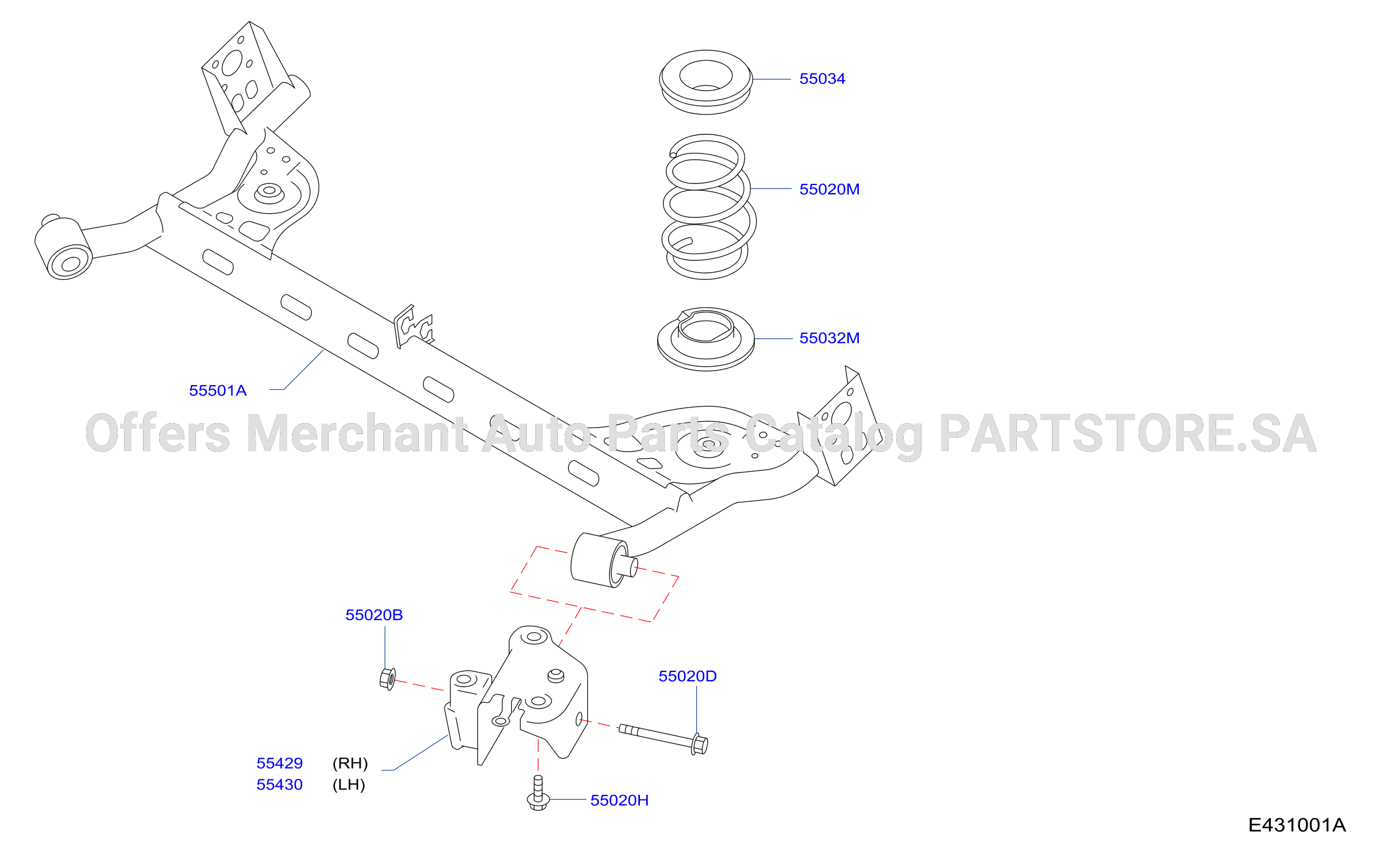

Rear Suspension Beam
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 431A-001-01 | Rear Suspension Beam | 2004 - 2005 |
ENGINE: CGA3DE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0122500072 | 55020B | NUT | |||
| 0145600QAD | 55020H | SCREW | |||
| 55020AX601 | 55020M | SPRING - REAR SUSPENSION | |||
| 55032AX601 | 55032M | SEAT - RUBBER, REAR SPRING LOWER | |||
| 55034AX600 | 55034 | SEAT - RUBBER, REAR SPRING UPPER | |||
| 55222AX001 | 55020D | BOLT | |||
| 55429AX600 | 55429 | BRACKET ASSY - REAR SUSPENSION ARM, RH | |||
| 55430AX600 | 55430 | BRACKET ASSY - REAR SUSPENSION ARM, LH | |||
| 55501AX620 | 55501A | BEAM COMPL - REAR SUSPENSION | |||
| 55501AX640 | 55501A | BEAM COMPL - REAR SUSPENSION |
