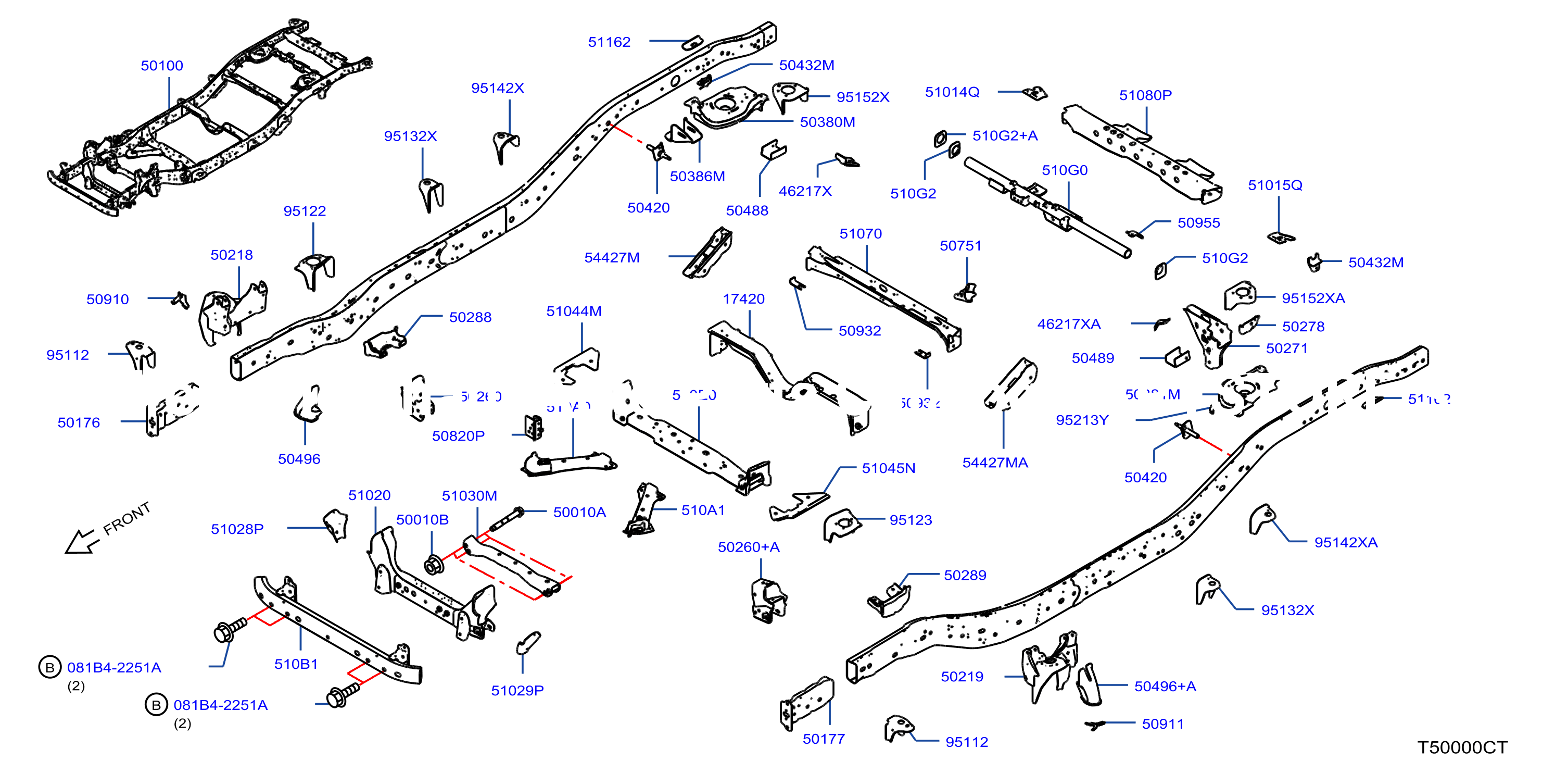

Frame Fitting Bracket
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 500B-008-01 | Frame Fitting Bracket | 2023 - ... |
BODY: 3ROW
DRIVE: 2WD
|
No illustration for this section
The full parts list is available below
Parts in this diagram 54
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081B42251A | 081B42251A | BOLT - FLANGE, HEX | |||
| 501705KA2A | 50176 | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 501715KA2A | 50177 | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 502184JJ0A | 50218 | BRACKET ASSY - FRONT SUSPENSION, RH | |||
| 502194JJ0A | 50219 | BRACKET ASSY - FRONT SUSPENSION, LH | |||
| 502405KA0A | 54427M | BRACKET - LOWER MOUNTING | |||
| 502415KA0A | 54427MA | BRACKET - LOWER MOUNTING | |||
| 502604JJ0A | 50260 | BRACKET ASSY - FRONT LOWER LINK MOUNTING | |||
| 502615KA0A | 50260+A | BRACKET ASSY - FRONT LOWER LINK MOUNTING | |||
| 502714JJ4A | 50271 | BRACKET ASSY - PANHARD ROD MOUNTING, LH |
of
6
