Frame Frame Assy
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 500A-003-01 | Frame Frame Assy | 2021 - 2022 |
AREA: ASEAN
BODY: 3ROW
DRIVE: 2WD
GRADE: PREMIUM
|
No illustration for this section
The full parts list is available below

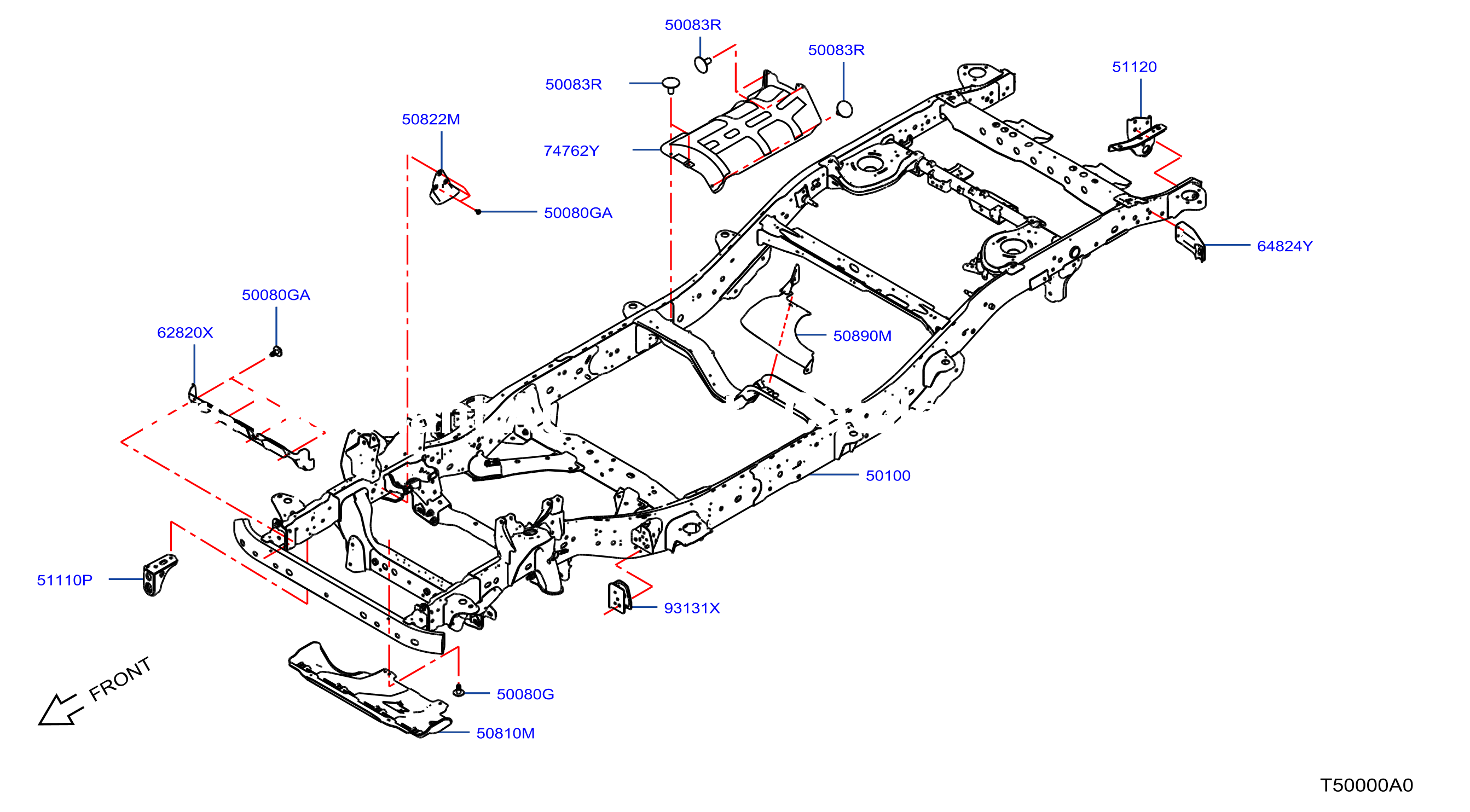

Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155309321 | 50080G | CLAMP | |||
| 501005KK0B | 50100 | FRAME ASSY | |||
| 501006KT2B | 50100 | FRAME ASSY | |||
| 508104JA0B | 50810M | COVER - UNDER, FRONT | |||
| 511104JA0B | 51110P | TOWING HOOK ASSY - FRONT, RH | |||
| 511305KA0A | 51120 | TOWING HOOK ASSY - REAR | |||
| 628205KA0A | 62820X | AIR GUIDE - FRONT | |||
| 74762EB70A | 74762Y | HEAT INSULATOR - REAR FLOOR | |||
| 748G98J000 | 50083R | RIVET | |||
| 931315KK0A | 93131X | PROTECTOR - GUARD FRAME, LH |
