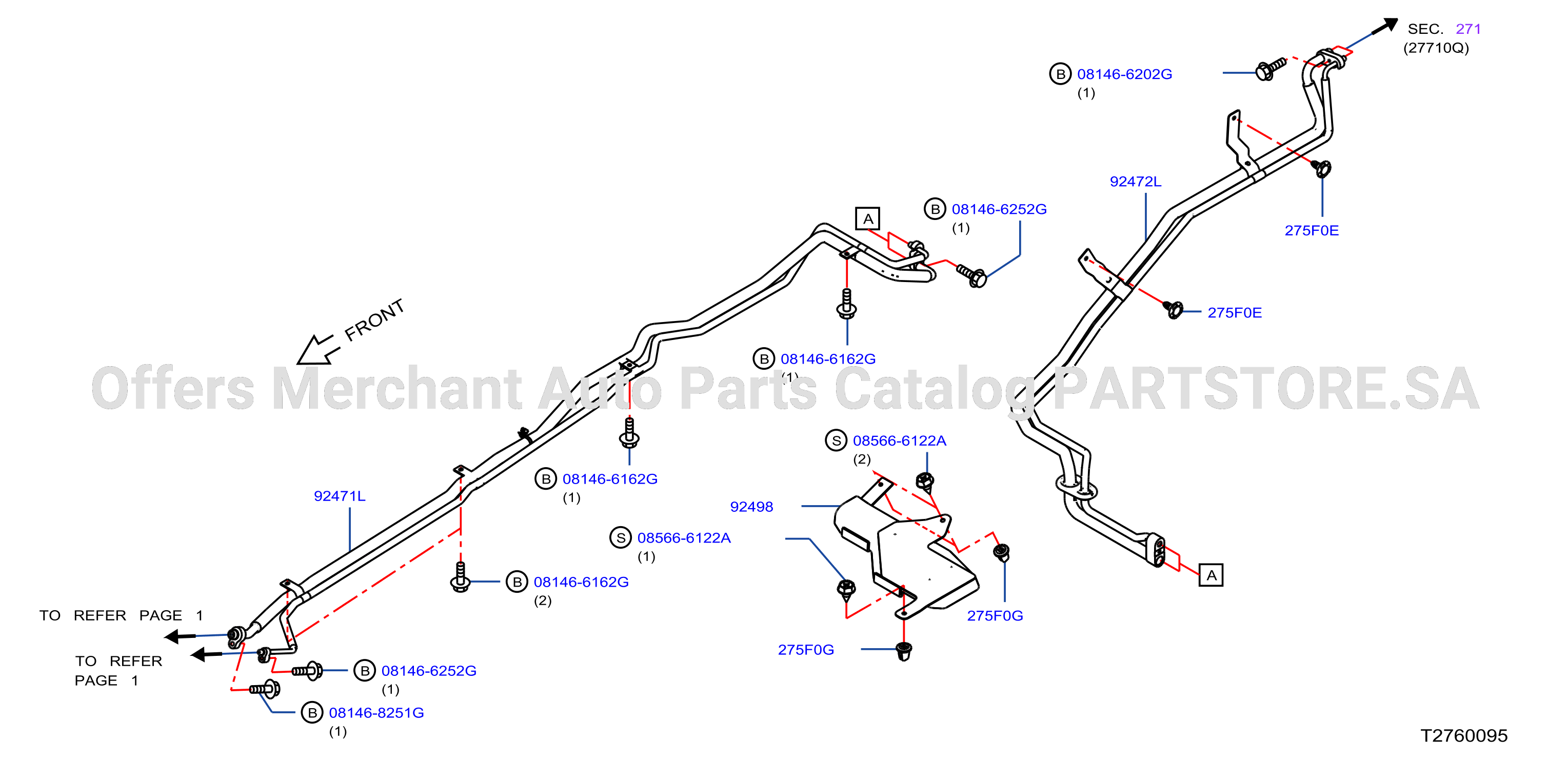

Condenser Liquid Tank Piping 2
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276B-012-01 | Condenser Liquid Tank Piping 2 | 2021 - 2021 |
BODY: 3ROW
ENGINE: YD25DDTI
|
Parts in this diagram 10
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155309321 | 275F0E | CLIP | |||
| 081466162G | 081466162G | BOLT - HEX | |||
| 081466202G | 081466202G | BOLT - HEX | |||
| 081466252G | 081466252G | BOLT - HEX | |||
| 081468251G | 081468251G | BOLT - HEX | |||
| 085666122A | 085666122A | SCREW - TAPPING | |||
| 887966P000 | 275F0G | GROMMET | |||
| 924715KA0A | 92471L | PIPE ASSY - REAR COOLER, LOW A | |||
| 924725KA0A | 92472L | PIPE ASSY - REAR COOLER, LOW B | |||
| 924985KA0A | 92498 | COVER - REAR COOLER PIPE |
