| Code | Name | Period | Specifications |
|---|---|---|---|

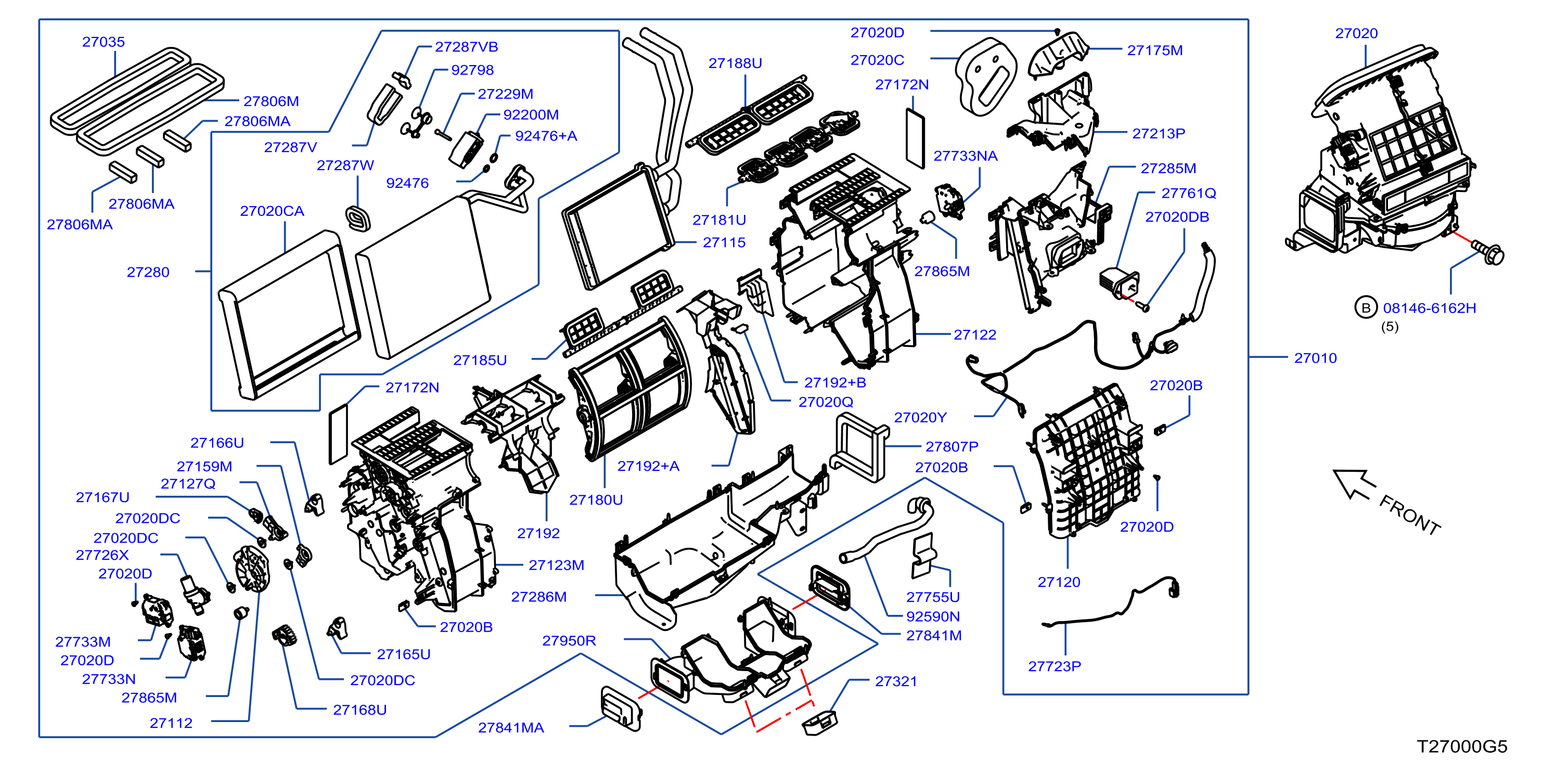

| 270A-011-01 | Heater Blower Unit Auto | 2021 - 2022 |
BODY: 3ROW
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0124100011 | 27020B | NUT | ||
| 081466162H | 081466162H | BOLT - HEX | ||
| 24271N7100 | 27755U | PROTECTOR - HARNESS | ||
| 271111HD0B | 27020DB | SCREW | ||
| 271204JA0A | 27120 | CASE ASSY - FRONT HEATER UNIT | ||
| 271234JG0A | 27123M | CASE - FRONT HEATER | ||
| 271244JG0A | 27213P | COVER - HEATER | ||
| 271371HD0A | 27020Q | CLIP | ||
| 271404JG0A | 27115 | CORE ASSY - FRONT HEATER | ||
| 271534JG0B | 27127Q | LINK - AIR DOOR, NO 4 | ||
| 271554JG0A | 27112 | LINK ASSY - SIDE | ||
| 271594JG0A | 27159M | LINK - FOOT | ||
| 271654JG0A | 27165U | LEVER - VENTILATOR | ||
| 271664JG2A | 27166U | LEVER - VENTILATION, NO2 | ||
| 271674JA0A | 27167U | LEVER - DEFROSTER | ||
| 271684JG0A | 27168U | LEVER - FOOT | ||
| 271724JA0A | 27172N | SEAT | ||
| 271754JG0A | 27175M | BRACKET - FRONT HEATER | ||
| 271814JA0A | 27181U | DOOR ASSY - VENTILATION | ||
| 271854JA0A | 27185U | DOOR ASSY - FOOT | ||
| 271884JA0A | 27188U | DOOR ASSY - DEFROSTER | ||
| 271904JA0A | 27192+A | AIR GUIDE - RH | ||
| 271904JA1A | 27192+B | AIR GUIDE - RH | ||
| 271904JG0A | 27192 | AIR GUIDE - RH | ||
| 271991HD0A | 27020DC | SCREW | ||
| 272004JG3A | 27020 | BLOWER ASSY - FRONT | ||
| 272291HD0B | 27229M | BOLT | ||
| 272805KE0A | 27280 | EVAPORATOR ASSY - FRONT | ||
| 272854JG3A | 27285M | CASE - FRONT COOLING UNIT, UPPER | ||
| 272864JG0A | 27286M | CASE - FRONT COOLING UNIT, LOWER | ||
| 272874JA0A | 27287V | SEAL - EVAPORATOR | ||
| 272874JA0B | 27287VB | SEAL - EVAPORATOR | ||
| 272874JA0C | 27287W | INSULATOR - COOLER | ||
| 272884JG0A | 27020CA | GROMMET | ||
| 272894JA2A | 27020C | GROMMET | ||
| 273214JA0A | 27321 | COVER - REAR HEATER | ||
| 277231HN0B | 27723P | SENSOR ASSY - INTAKE | ||
| 277233SB0B | 27723P | SENSOR ASSY - INTAKE | ||
| 277313SB0A | 27733M | ACTUATOR ASSY - MODE | ||
| 27732A070A | 27733N | ACTUATOR ASSY - AIR MIX | ||
| 277614BA0A | 27761Q | MODULE ASSY - POWER | ||
| 278054JA0A | 27035 | SEAL - BLOWER | ||
| 278064JA0A | 27806M | SEAL - FRONT HEATER UNIT | ||
| 278064JA1A | 27806MA | SEAL - FRONT HEATER UNIT | ||
| 278074JA0A | 27807P | SEAL - DUCT, INLET | ||
| 278404KD0A | 27841M | NOZZLE - HEATER | ||
| 278414KD0A | 27841MA | NOZZLE - HEATER | ||
| 279504JG0A | 27950R | DUCT - REAR FLOOR | ||
| 922001JA1A | 92200M | VALVE ASSY - EXPANSION | ||
| 924774GF0A | 92476 | SEAL - O RING | ||
| 924774GF1A | 92476+A | SEAL - O RING | ||
| 925904KD0A | 92590N | HOSE - DRAIN | ||
| 927981HD0A | 92798 | SEAL - COVER |
