| Code | Name | Period | Specifications |
|---|---|---|---|

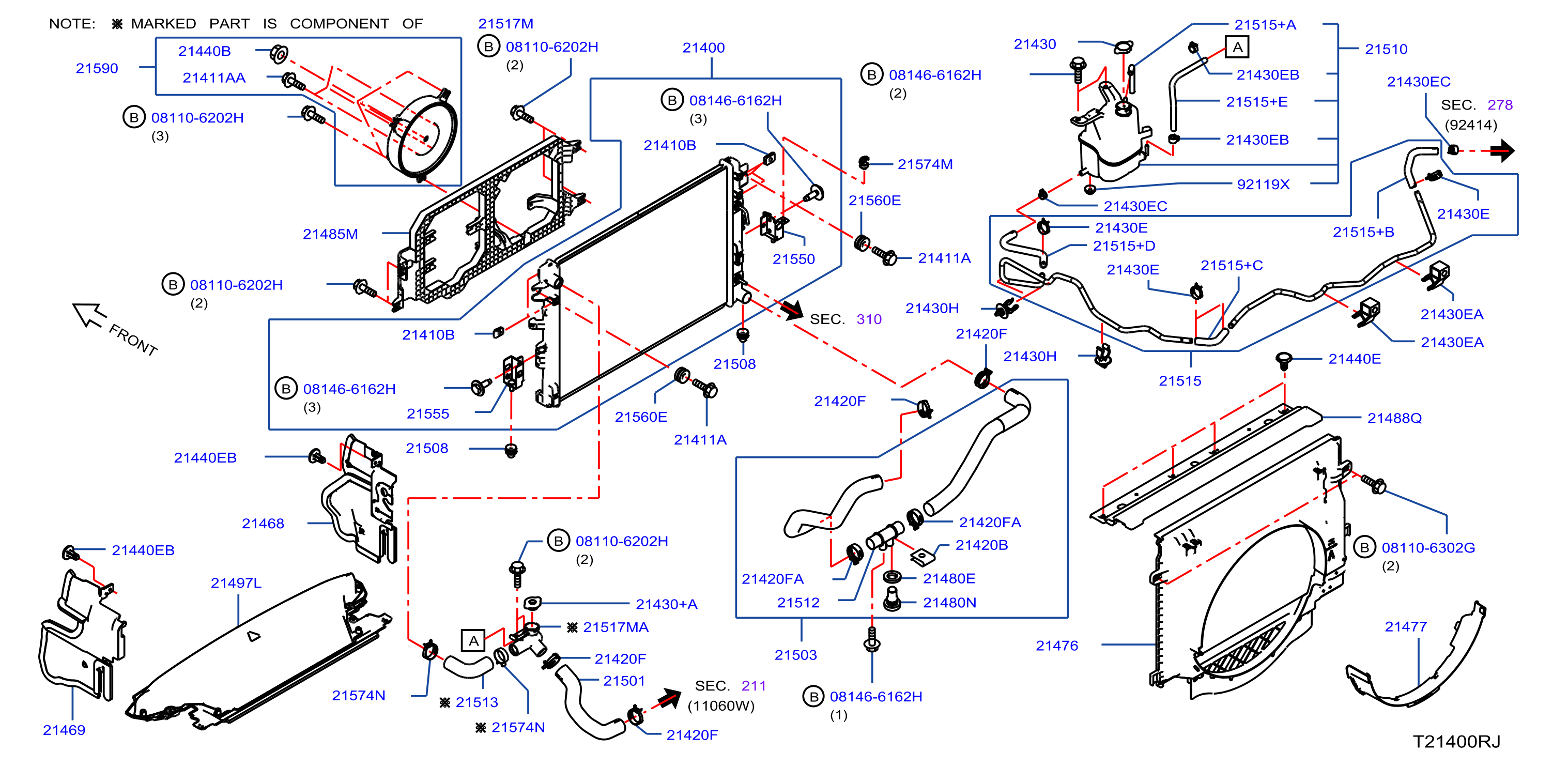

| 214C-008-01 | Radiator Shroud Inverter Cooling Fitting Parts | 2021 - 2022 |
ENGINE: YD25DDTI
TRANSMISSION: 7AT
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0155200283 | 21574M | CLAMP - HOSE | ||
| 0155310501 | 21440E | CLIP | ||
| 0155800731 | 21420F | CLAMP | ||
| 081106202H | 081106202H | BOLT - HEX | ||
| 081106302G | 081106302G | BOLT - HEX | ||
| 081466162H | 081466162H | BOLT - HEX | ||
| 1643956S0A | 21430EB | CLAMP | ||
| 164397S01C | 21430E | CLAMP | ||
| 21430C993B | 21430+A | CAP ASSY - RADIATOR | ||
| 21430D999C | 21430 | CAP ASSY - RADIATOR | ||
| 21441JK20A | 21480N | COCK - WATER DRAIN | ||
| 214605KA1A | 21400 | RADIATOR ASSY | ||
| 214685KA0A | 21468 | AIR DUCT - INTAKE, RH | ||
| 214686KT0A | 21468 | AIR DUCT - INTAKE, RH | ||
| 214695KA0A | 21469 | AIR DUCT - INTAKE, LH | ||
| 214696KT0A | 21469 | AIR DUCT - INTAKE, LH | ||
| 214764JN0A | 21476 | SHROUD - RADIATOR, UPPER | ||
| 214774JN0A | 21477 | SHROUD - RADIATOR, LOWER | ||
| 2147940K00 | 21420B | NUT | ||
| 214815KA0A | 21590 | MOTOR & FAN ASSY - W / SHROUD | ||
| 2148189900 | 21480E | PACKING - DRAIN | ||
| 214855KA0A | 21485M | BRACKET - MOTOR FAN | ||
| 214964JA0A | 21488Q | SEAL - RADIATOR, UPPER | ||
| 214975KA0A | 21497L | SEAL - RADIATOR, LOWER | ||
| 214976KT5A | 21497L | SEAL - RADIATOR, LOWER | ||
| 215014JN0A | 21501 | HOSE - RADIATOR, UPPER | ||
| 215034JN0A | 21503 | HOSE - RADIATOR, LOWER | ||
| 215064JA0A | 21560E | MOUNTING - RUBBER, RADIATOR UPPER | ||
| 21508EB70A | 21508 | MOUNTING - RUBBER, RADIATOR | ||
| 215134JN0A | 21513 | HOSE - SUB, RADIATOR | ||
| 215174JN0A | 21517M | PIPE - RADIATOR, UPPER | ||
| 215174JN1A | 21517MA | PIPE - RADIATOR, UPPER | ||
| 215374JN0A | 21512 | PIPE - SUB RADIATOR | ||
| 215505KA0A | 21550 | SUPPORT - RADIATOR, UPPER RH | ||
| 215555KA0A | 21555 | SUPPORT - RADIATOR, UPPER LH | ||
| 216945X20A | 21411A | BOLT | ||
| 2169480F1A | 21411AA | BOLT | ||
| 217104JN0A | 21510 | TANK ASSY - RADIATOR RESERVOIR | ||
| 217106KG1A | 21510 | TANK ASSY - RADIATOR RESERVOIR | ||
| 217414JN0A | 21515+A | HOSE - RESERVOIR TANK | ||
| 217414JN1A | 21515+D | HOSE - RESERVOIR TANK | ||
| 217414JN2A | 21515+C | HOSE - RESERVOIR TANK | ||
| 217414JN3A | 21515+B | HOSE - RESERVOIR TANK | ||
| 217424JN0A | 21515+E | HOSE - RESERVOIR TANK | ||
| 217434JN0A | 21515 | HOSE - RESERVOIR TANK | ||
| 74527Q0100 | 21430H | BAND | ||
| 921184M400 | 92119X | MOUNTING - RUBBER, CONDENSER | ||
| 9255152B00 | 21430EA | CLAMP | ||
| 925940M30A | 21440B | NUT |
