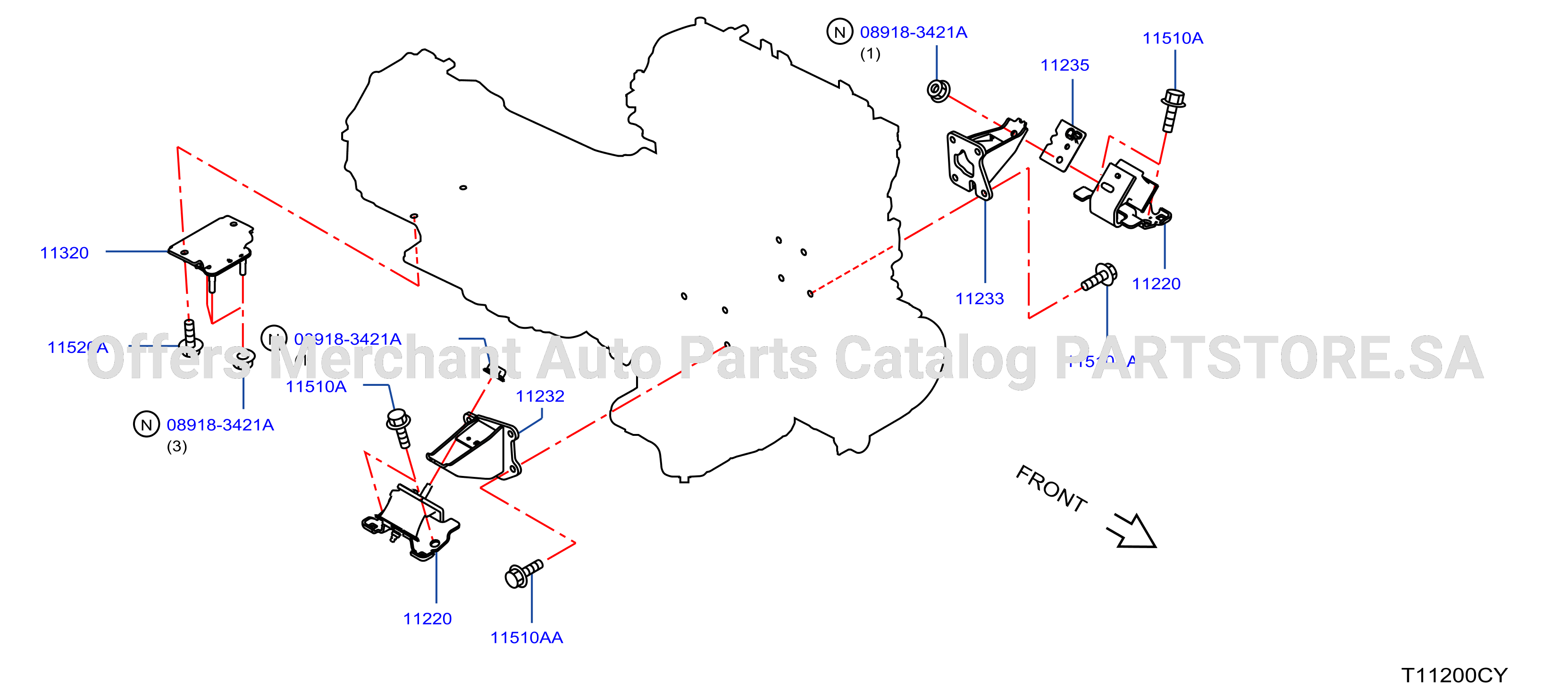

Engine Transmission Mounting
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 112G-001-01 | Engine Transmission Mounting | 2022 - 2023 |
DRIVE: 2WD
ENGINE: YD25DDTI
TRANSMISSION: 7AT
|
No illustration for this section
The full parts list is available below
Parts in this diagram 9
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 089183421A | 089183421A | NUT - FLANGE, HEX | |||
| 11220EB70C | 11220 | INSULATOR - ENGINE MOUNTING, FRONT | |||
| 11232EB70A | 11232 | BRACKET - ENGINE MOUNTING, RH | |||
| 11233EB70A | 11233 | BRACKET - ENGINE MOUNTING, LH | |||
| 11284JR50B | 11235 | HEAT SHIELD PLATE | |||
| 112985V101 | 11510A | BOLT | |||
| 11298AX013 | 11520A | BOLT | |||
| 113204JL0A | 11320 | INSULATOR - ENGINE MOUNTING, REAR | |||
| 547260W005 | 11510AA | BOLT |
