| Code | Name | Period | Specifications |
|---|---|---|---|

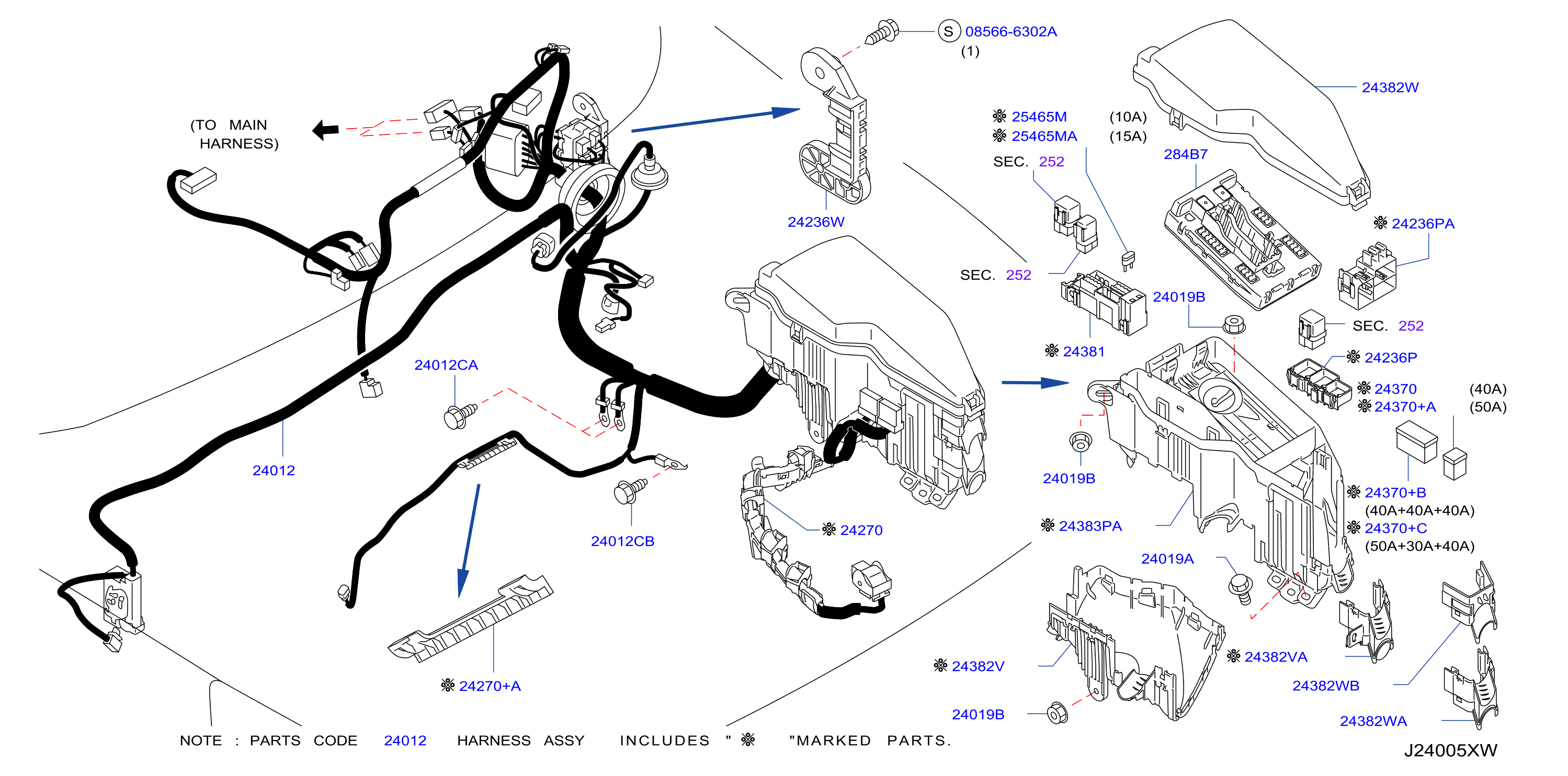

| 240B-001-01 | Wiring Engine Room Harn | 2008 - 2012 |
BODY: SED
ENGINE: VQ25DE
|
Parts in this diagram 24
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6031 | 24019A | BOLT | |||
| 01225N6031 | 24019B | NUT | |||
| 0145600411 | 24012CA | SCREW | |||
| 085666302A | 085666302A | SCREW - TAPPING | |||
| 24272JA10A | 24270+A | PROTECTOR - HARNESS | |||
| 24272JN00A | 24270 | PROTECTOR - HARNESS | |||
| 2431989910 | 25465M | FUSE | |||
| 2431989915 | 25465MA | FUSE | |||
| 24346JA10B | 24236PA | BRACKET - CONNECTOR | |||
| 24346JA11A | 24236P | BRACKET - CONNECTOR | |||
| 24359JA00A | 24236W | BRACKET - CONNECTOR | |||
| 24370C991B | 24370+B | CONNECTOR ASSY - FUSIBLE LINK | |||
| 24370C992B | 24370+C | CONNECTOR ASSY - FUSIBLE LINK | |||
| 24370C994A | 24370 | CONNECTOR ASSY - FUSIBLE LINK | |||
| 24370C995A | 24370+A | CONNECTOR ASSY - FUSIBLE LINK | |||
| 243817990A | 24381 | HOUSING - FUSIBLE LINK HOLDER | |||
| 24382JA01A | 24382V | COVER - RELAY BOX | |||
| 24382JA02A | 24382WA | COVER - RELAY BOX | |||
| 24382JA03A | 24382WB | COVER - RELAY BOX | |||
| 24382JA04A | 24382VA | COVER - RELAY BOX | |||
| 24382JN00A | 24382W | COVER - RELAY BOX | |||
| 24383JA00B | 24383PA | HOUSING - RELAY BOX | |||
| 284B71AA0A | 284B7 | CONTROLLER UNIT - IPDM ENGINE ROOM | |||
| 284B71AA4C | 284B7 | CONTROLLER UNIT - IPDM ENGINE ROOM |
