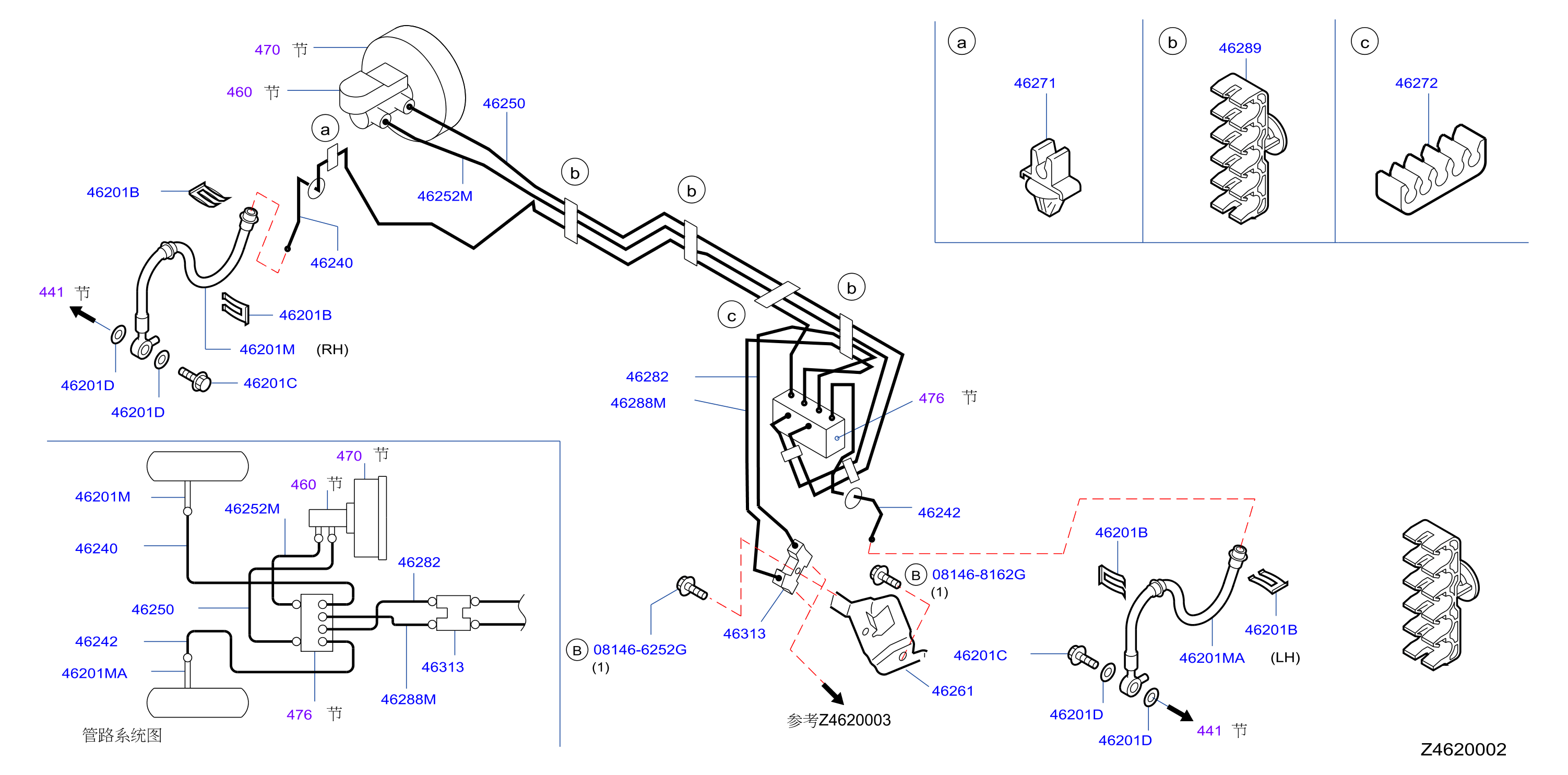

Brake Piping Control Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-001-01 | Brake Piping Control Piping | 2004 - 2006 |
BODY: S
|
No illustration for this section
The full parts list is available below
Parts in this diagram 21
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081466252G | 081466252G | BOLT - HEX | |||
| 081468162G | 081468162G | BOLT - HEX | |||
| 462062J000 | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462109W200 | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462109W201 | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 462109W20A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462109W20B | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 462109W20C | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462109W20D | 46201MA | HOSE ASSY - BRAKE, FRONT |
of
3
