| Code | Name | Period | Specifications |
|---|---|---|---|

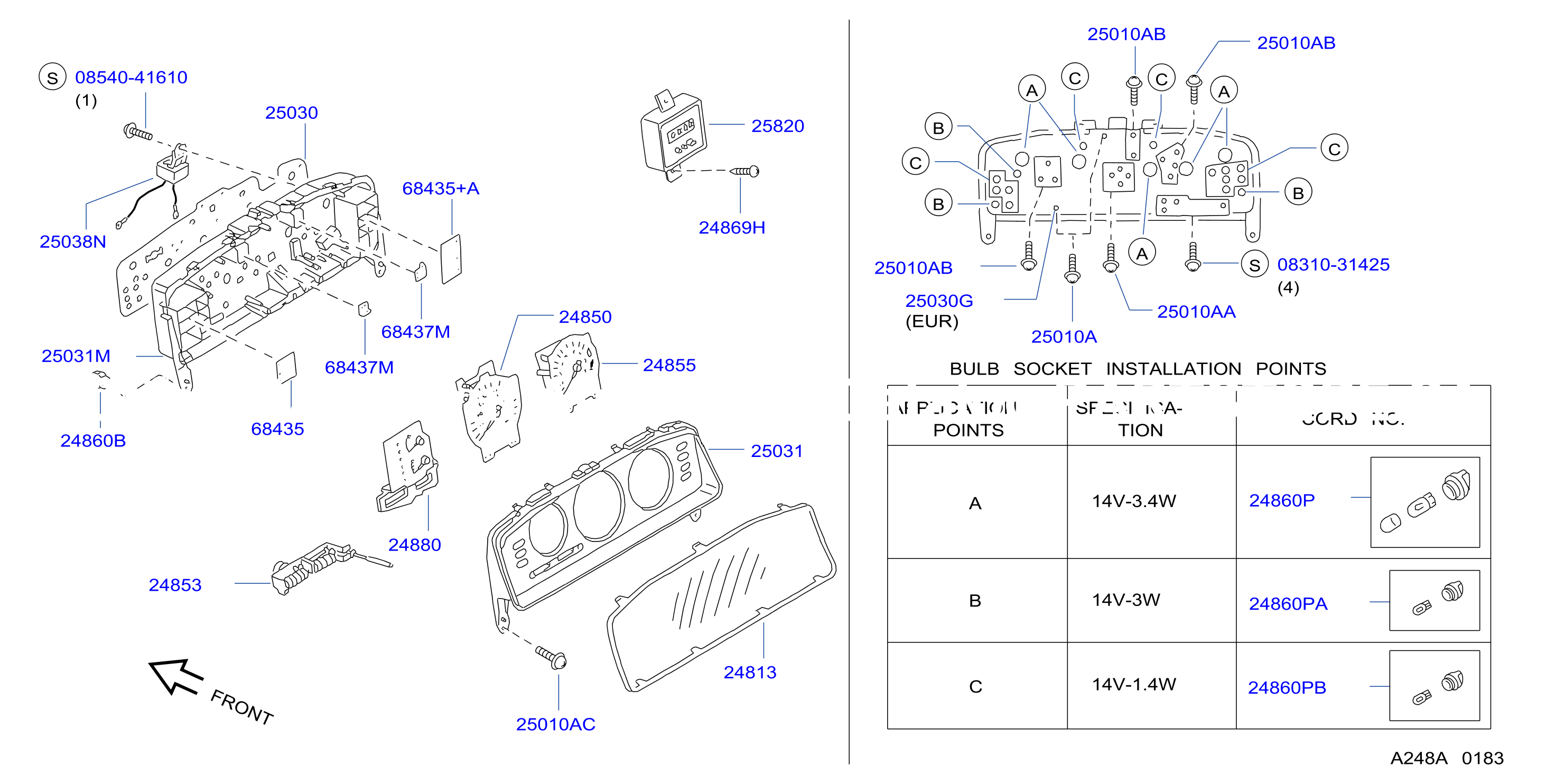

| 248A-001-01 | Instrument Meter Gauge Analog | 1988 - ... |
BODY: S
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 2481185E00 | 25031M | HOUSING - COMBINATION METER, LOWER | ||
| 2481197E00 | 25031M | HOUSING - COMBINATION METER, LOWER | ||
| 2481285E00 | 25031 | HOUSING - COMBINATION METER, UPPER | ||
| 2481297E00 | 25031 | HOUSING - COMBINATION METER, UPPER | ||
| 2481385E00 | 24813 | COVER - FRONT, COMBINATION METER | ||
| 2481485E00 | 25030 | PLATE ASSY - PRINTED CIRCUIT | ||
| 2481685E00 | 68437M | LENS - WARNING LAMP, TURN SIGNAL | ||
| 2481697E00 | 68437M | LENS - WARNING LAMP, TURN SIGNAL | ||
| 2482091E00 | 24850 | SPEEDOMETER ASSY | ||
| 2482585E00 | 24855 | TACHOMETER ASSY | ||
| 2483591E00 | 24880 | METER ASSY - WATER TEMPERATURE | ||
| 2487585E00 | 24853 | ODOMETER & TRIP METER ASSY | ||
| 2487587E00 | 24853 | ODOMETER & TRIP METER ASSY | ||
| 2488085E00 | 68435 | LENS - WARNING LAMP | ||
| 2488097E00 | 68435 | LENS - WARNING LAMP | ||
| 2582085E00 | 25820 | CLOCK ASSY - DIGITAL | ||
| 6819151E00 | 24860B | NUT | ||
| 2488086E01 | 68435 | LENS - WARNING LAMP | ||
| 2488591E01 | 68435+A | LENS - WARNING LAMP | ||
| 2582085E01 | 25820 | CLOCK ASSY - DIGITAL | ||
| 0145100581 | 24869H | SCREW | ||
| 0831031425 | 0831031425 | SCREW - MACHINE | ||
| 0854041610 | 0854041610 | SCREW - TAPPING | ||
| 2488589E19 | 68435+A | LENS - WARNING LAMP | ||
| 248146E360 | 25030 | PLATE ASSY - PRINTED CIRCUIT | ||
| 248146E802 | 25030 | PLATE ASSY - PRINTED CIRCUIT | ||
| 248206E700 | 24850 | SPEEDOMETER ASSY | ||
| 248206E702 | 24850 | SPEEDOMETER ASSY | ||
| 248256E700 | 24855 | TACHOMETER ASSY | ||
| 248356E700 | 24880 | METER ASSY - WATER TEMPERATURE | ||
| 248356E702 | 24880 | METER ASSY - WATER TEMPERATURE | ||
| 2486010V00 | 24860P | SOCKET & BULB ASSY | ||
| 2486040F01 | 24860PB | SOCKET & BULB ASSY | ||
| 2486071L00 | 24860PA | SOCKET & BULB ASSY | ||
| 2486904J00 | 25010AB | BOLT | ||
| 2486913V00 | 25010AA | BOLT | ||
| 2487209B01 | 25010A | BOLT | ||
| 248806E802 | 68435 | LENS - WARNING LAMP | ||
| 248856E668 | 68435+A | LENS - WARNING LAMP | ||
| 2506532R00 | 25038N | CHIME ASSY - WARNING |
