| Code | Name | Period | Specifications |
|---|---|---|---|

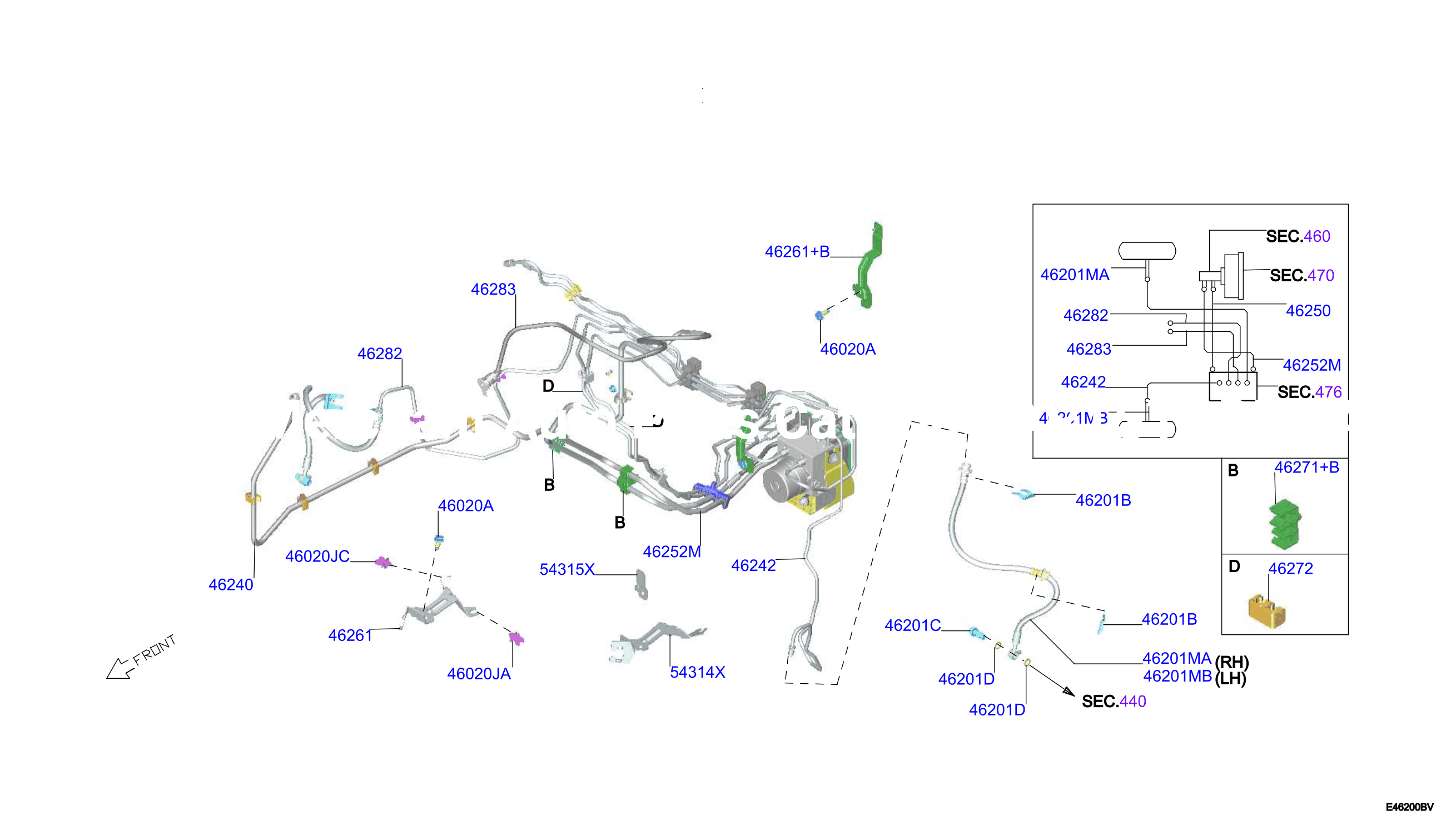

| 462C-005-01 | Brake Piping Control Front Piping | 2024 - ... |
BODY: 5DOOR
ENGINE: KR15
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01125A8031 | 46020A | BOLT | ||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | ||
| 462106US0A | 46201MA | HOSE ASSY - BRAKE, FRONT | ||
| 462116US0A | 46201MB | HOSE ASSY - BRAKE, FRONT | ||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | ||
| 462406UM0A | 46240 | TUBE ASSY - BRAKE, FRONT RH | ||
| 462426UM0A | 46242 | TUBE ASSY - BRAKE, FRONT LH | ||
| 462506UM0A | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | ||
| 462526UM0A | 46252M | TUBE ASSY - BRAKE, MASTER CYLINDER TO REAR | ||
| 462616RA3A | 46261 | BRACKET - BRAKE TUBE | ||
| 462616UM1B | 46261+B | BRACKET - BRAKE TUBE | ||
| 462714BA0A | 46271+B | CLIP - TUBE, BRAKE | ||
| 46271JJ91A | 46020JA | CLIP | ||
| 46271JK71A | 46020JC | CLIP | ||
| 46272JG00B | 46272 | CLIP - TUBE, BRAKE | ||
| 46272JK70A | 46020JC | CLIP | ||
| 462826UM0A | 46282 | TUBE ASSY - BRAKE, REAR | ||
| 462836UM0A | 46283 | TUBE ASSY - BRAKE, REAR | ||
| 463560E00A | 46201C | BOLT - UNION, FRONT BRAKE HOSE | ||
| 543146RA0A | 54314X | BRACKET - BRAKE HOSE, RH | ||
| 543156RA0A | 54315X | BRACKET - BRAKE HOSE, LH |
